Converting Rear Bumper - AZ88.00-P-0001-03LWH

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 253.9

Check components removed from standard bumper before assembly and replace if damaged.

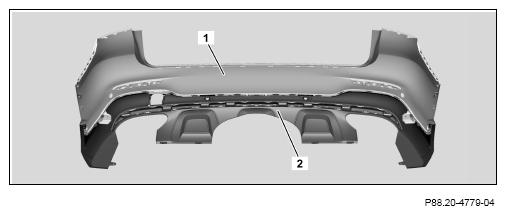

Insert and engage lower rear bumper paneling (2) into upper rear bumper paneling (1).
Ensure that it is seated and arrest properly.

Shown on model 253.9 with code 550 (Trailer hitch)

Carefully lay down painted vehicle parts. In order to prevent damage.

Courtesy of MERCEDES-BENZ USA

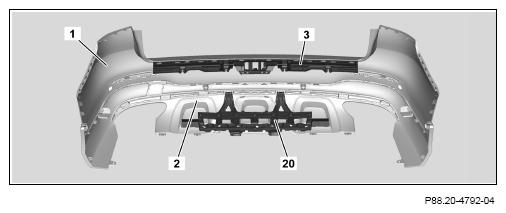

Insert and engage center rear basic bumper bracket (3) into upper rear bumper paneling (1).
Ensure that it is seated and arrest properly.
Model 253.9 except code 550 (Trailer coupling)
Insert and engage rear switch module bumper bracket (20) into lower rear bumper paneling (2).

Ensure that it is seated and arrest properly.

Shown on model 253.9 except for code 550 (Trailer hitch)

Courtesy of MERCEDES-BENZ USA

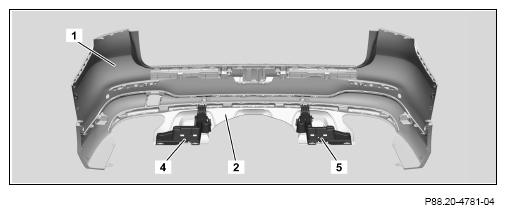

Insert and engage right center bumper bracket (4) into lower rear bumper paneling (2).
Ensure that it is seated and arrest properly.
Insert and engage left center bumper bracket (5) into lower rear bumper paneling (2).
Ensure that it is seated and arrest properly.

Shown on model 253.9 with code 550 (Trailer hitch)

Courtesy of MERCEDES-BENZ USA

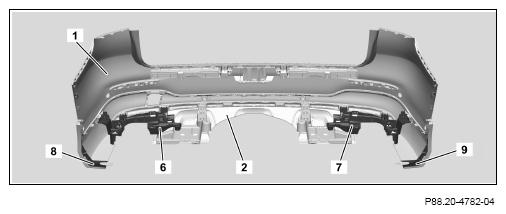

Insert and engage right tailpipe trim bracket (6).
Ensure that it is seated and arrest properly.
Secure right tailpipe trim bracket (6) with, in each case, 1 blind rivet on upper rear bumper paneling (1), on right center bumper bracket (4) and on lower rear bumper paneling (2).
Use commercially available riveter.

Shown on model 253.9 with code 550 (Trailer hitch)

Courtesy of MERCEDES-BENZ USA
Insert and engage left tailpipe trim bracket (7).
Ensure that it is seated and arrest properly.
Secure left tailpipe trim bracket (7) with, in each case, 1 blind rivet on upper rear bumper paneling (1), on left center bumper bracket (5) and on lower rear bumper paneling (2).
Use commercially available riveter.

Shown on model 253.9 with code 550 (Trailer hitch)

Courtesy of MERCEDES-BENZ USA
Insert and engage right wheel arch bumper bracket (8).
Ensure that it is seated and arrest properly.
Secure right wheel arch bumper bracket (8) with 1 expansion rivet and 1 spring clip on lower rear bumper paneling (2).
Shown on model 253.9 with code 550 (Trailer hitch)

Courtesy of MERCEDES-BENZ USA
Insert and engage left wheel arch bumper bracket (9).
Ensure that it is seated and arrest properly.
Secure left wheel arch bumper bracket (9) with 1 expansion rivet and 1 spring clip on lower rear bumper paneling (2).
Shown on model 253.9 with code 550 (Trailer hitch)

Courtesy of MERCEDES-BENZ USA

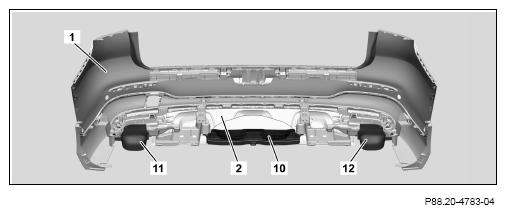

Model 253.9 with code 550 (Trailer coupling) Insert lower bumper cover (10) and secure with, in each case, 1 screw on right center bumper bracket (4) and left center bumper bracket (5).
Insert and screw on right tailpipe trim (11).
Ensure correct seating.
Insert and screw on left tailpipe trim (12).
Ensure correct seating.

Shown on model 253.9 with code 550 (Trailer hitch)

Courtesy of MERCEDES-BENZ USA

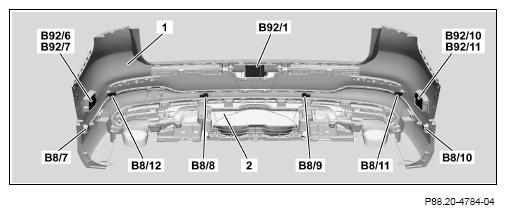

Model 253.9 with code 235 (Parking Pilot with PARKTRONIC) Insert and engage parking system distance sensors (B8/7 to B8/12) in respective brackets.
Installation position is predefined by line lengths.

Shown on model 253.9 with code 234 (Blind Spot Assist) or code 237 (Active Blind Spot Assist) with code 235 (Parking Pilot with PARKTRONIC) with code 238 (Active Lane Keeping Assist) with code 253 (Rear collision warning and protection system) and with code 550 (Trailer hitch)

Courtesy of MERCEDES-BENZ USA
Model 253.9 with code 238 (Active lane keeping Assist) with code 253 (Rear impact warning and protection system) Insert center rear bumper radar sensor (B92/1) in bracket.
Installation position is predefined by line length.

Shown on model 253.9 with code 234 (Blind Spot Assist) or code 237 (Active Blind Spot Assist) with code 235 (Parking Pilot with PARKTRONIC) with code 238 (Active Lane Keeping Assist) with code 253 (Rear collision warning and protection system) and with code 550 (Trailer hitch)

Courtesy of MERCEDES-BENZ USA
Model 253.9 with code 234 (Blind Spot Monitoring)
with code 237 (Active Blind Spot Assist)

Install right outer rear bumper integrated radar sensor (B92/6) and right outer rear bumper radar sensor (B92/7).

Installation position is predefined by line lengths.

Shown on model 253.9 with code 234 (Blind Spot Assist) or code 237 (Active Blind Spot Assist) with code 235 (Parking Pilot with PARKTRONIC) with code 238 (Active Lane Keeping Assist) with code 253 (Rear collision warning and protection system) and with code 550 (Trailer hitch)

Courtesy of MERCEDES-BENZ USA
Model 253.9 except code 234 (Blind Spot Monitoring)
except code 237 (Active Blind Spot Assist)

Install left outer rear bumper radar sensor (B92/10) and left outer rear bumper integrated radar sensor (B92/11).

Installation position is predefined by line lengths.

Shown on model 253.9 with code 234 (Blind Spot Assist) or code 237 (Active Blind Spot Assist) with code 235 (Parking Pilot with PARKTRONIC) with code 238 (Active Lane Keeping Assist) with code 253 (Rear collision warning and protection system) and with code 550 (Trailer hitch)

Courtesy of MERCEDES-BENZ USA

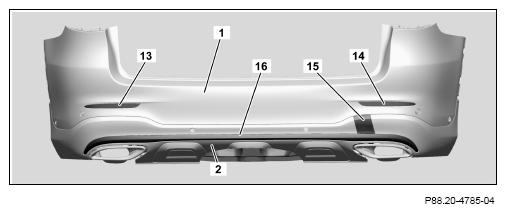

Insert and engage left reflector (13) and right reflector (14) in upper rear bumper paneling (1).
Hook check strap of towing eye cover (15) into lower rear bumper paneling (2).
Insert and engage towing eye cover (15) into lower rear bumper paneling (2).
Insert and engage trim strip (16) into lower rear bumper paneling (2).
Shown on model 253.9 with code 550 (Trailer hitch)

Courtesy of MERCEDES-BENZ USA
