Remove/Install Sensor For Rear Switching Module - AR80.61-P-0012LW

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205.0/1/2/3 with code P17 (KEYLESS-GO package)

Model 253 with code P17 (KEYLESS-GO package)

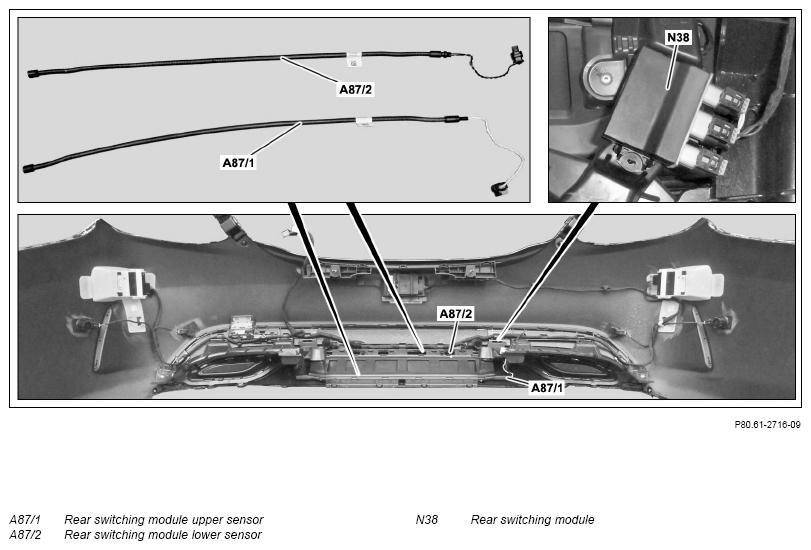

Fig 1: Sensor For Rear Switching Module Components Location - Model 253 With Code P17 (Shown On Model 205.0)
G14187733Courtesy of MERCEDES-BENZ USA

Shown on Model 205.0

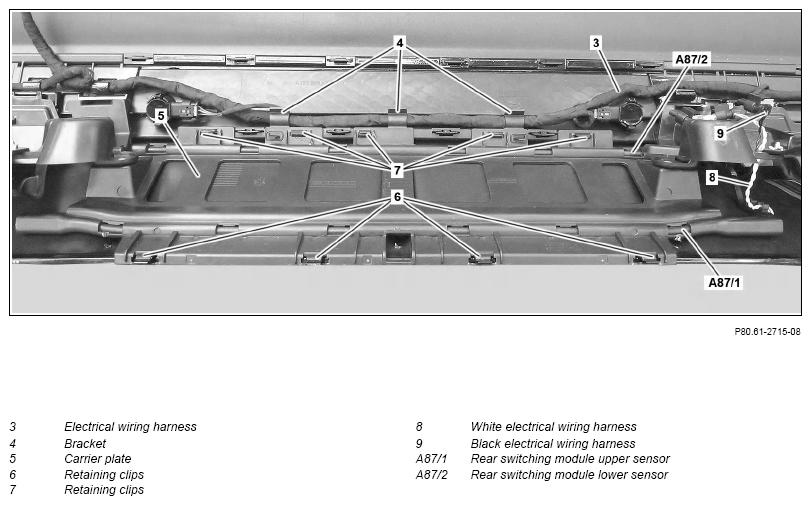

G14187734Courtesy of MERCEDES-BENZ USA

Shown on Model 205.0

NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Remove rear switching module (N38)   AR80.61-P-0011LW
2 Unhook electrical wiring harness (3) from brackets (4)
3 Remove reinforcement above carrier plate (5)
4 Unclip carrier plate (5) from retaining clips (6, 7) IMPORTANTIMPORTANT The number of retaining clips (6, 7) can vary according to equipment and vehicle version.
5 Expose white electrical wiring harness (8) of rear switching module upper sensor (A87/1) on bracket When removing upper rear switching module sensor (A87/1).
IMPORTANTIMPORTANT Observe routing and attachment of white electrical wiring harness (8).

6 Unclip rear switching module upper sensor (A87/1) from carrier plate (5) and remove downward When removing upper rear switching module sensor (A87/1).
INSTALLATION NOTES
Install rear switching module upper sensor (A87/1) at same point.
Otherwise the function of the system is not ensured.
IMPORTANTIMPORTANT The rear switching module upper sensor (A87/1) can be recognized by the white electrical wiring harness (8) and the unnotched connection grommet.

7 Expose black electrical wiring harness (9) of rear switching module lower sensor (A87/2) or bracket When removing lower rear switching module sensor (A87/2).
IMPORTANTIMPORTANT Observe routing and attachment of black electrical wiring harness (9).

8 Unclip rear switching module lower sensor (A87/2) from carrier plate (5) and remove downward When removing lower rear switching module sensor (A87/2).
INSTALLATION NOTES
Install rear switching module lower sensor (A87/2) at same point.
Otherwise the function of the system is not ensured.
IMPORTANTIMPORTANT The rear switching module lower sensor (A87/2) can be recognized by the black electrical wiring harness (9) and the notched connection grommet.

9 Install in the reverse order
