Remove/Install Planetary Gear Set 2 And Multidisk Clutch K38 With Ring Gear - AR27.50-P-0624EWM
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 725.0/1
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove multidisk clutch K27 with output shaft and park pawl gear | AR27.50-P-0614EWM | |
| 2 | Remove planetary gear set 4 and planetary gear set 3 with annulus gear | AR27.50-P-0623EWM | |

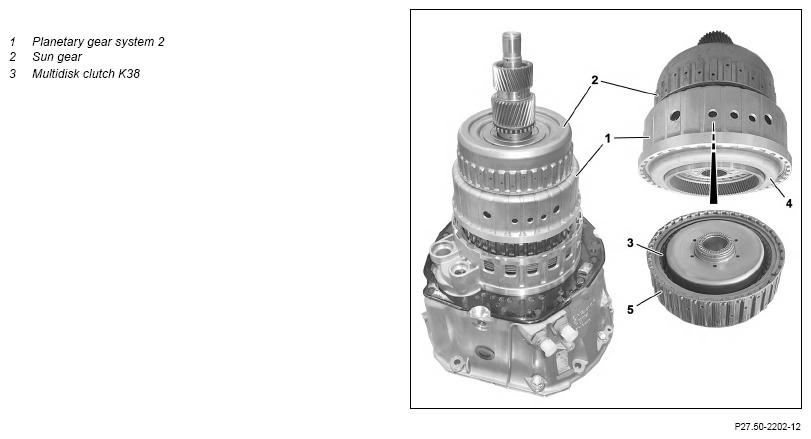

| 3 | Remove planetary gear set 2 (1) and sun gear (2) with multidisk clutch K38 (3) and disassemble | Planetary gear system 2 | AR27.50-P-0623-02EWM |
| Multidisk clutch K38 | AR27.50-P-0624-01EWM | ||
| Fig 3 | |||
| 4 | Install in the reverse order | ||
| 5 | Measure clearance of multidisk clutch K38 (3) and adjust, if necessary | AR27.51-P-0550-04EWM | |
| Clearance in multidisk clutch K38 | *BE27.51-P-1005-01E | ||
| Fig 6 | |||
| Fig 4 | |||
| Fig 2 | |||
| Fig 7 | |||
| 6 | Measure axial play of transmission, and adjust, if necessary | AR27.50-P-0580-01EWM | |
| Fig 5 | |||
| Fig 1 | |||
| Fig 7 | |||
| 7 | Measure axial play of drive shaft and adjust, if necessary | AR27.50-P-0550-01EWM | |
| Fig 5 | |||
| Fig 7 |
ADJUSTMENT VALUES FOR MULTIDISK CLUTCH/MULTIDISK BRAKE
| Number | Designation | Transmission 725.0/1 | |||
|---|---|---|---|---|---|
| BE27.51-P-1005-01E | Clearance in multidisk clutch K38 | Contact force for clearance adjustment | F1 | N | 600 |
| Number of internal plates | 3 | mm | 1, 5...1, 7 | ||
| 4 | mm | 1, 8...2, 0 | |||
| 5 | mm | 2, 1...2, 3 | |||
| 6 | mm | 2, 4...2, 6 | |||
