Measure And Adjust Clearance Of Multidisk Clutches K27 And K38 - AR27.51-P-0550-04EWM

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 725.0/1

MODIFICATION NOTES


18.09.2019 Pressure force in flow text adapted to 600 N.	Operation step 2

ADJUSTMENT VALUES FOR MULTIDISK CLUTCH/MULTIDISK BRAKE

Number	Designation				Transmission 725.0/1
BE27.51-P-1004-01E	Clearance in multidisk clutch K27	Contact force for clearance adjustment	F1	N	600
		Number of internal plates	3	mm	1, 8...2, 0
			4	mm	2, 2...2, 4
			5	mm	2, 6...2, 8
			6	mm	2, 9...3, 1
			7	mm	3, 1...3, 3

ADJUSTMENT VALUES FOR MULTIDISK CLUTCH/MULTIDISK BRAKE

Number	Designation				Transmission 725.0/1
BE27.51-P-1005-01E	Clearance in multidisk clutch K38	Contact force for clearance adjustment	F1	N	600
		Number of internal plates	3	mm	1, 5...1, 7
			4	mm	1, 8...2, 0
			5	mm	2, 1...2, 3
			6	mm	2, 4...2, 6

Fig 1: Identifying Pressing Tool (722 589 01 31 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Set Of Drifts (722 589 04 15 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Pressure Cylinder (725 589 03 31 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Parallel Support (168 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

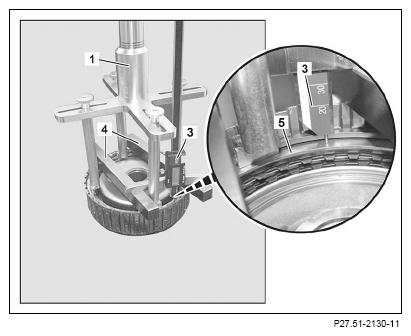

Position clutch on workshop press.
Place thrust device (1) with drifts and thrust cylinder onto clutch pack and apply a force of 600 N to it.
Place parallel gauges (4) onto outer plate carrier.
Place depth gauge (3) on parallel gauges (4), move depth gauge (3) up to end disk (5) and reset depth gauge (3) to 0 mm.

Courtesy of MERCEDES-BENZ USA

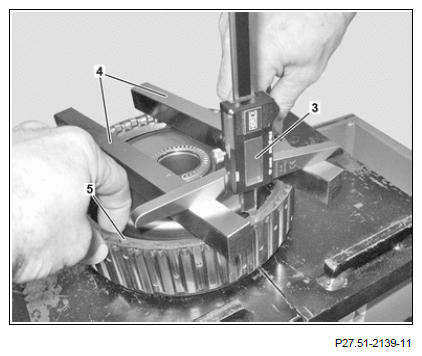

Remove thrust device (1) from disk pack.
Place parallel gauges (4) onto inner plate carrier.
Pull end disk (5) up against retaining ring, move depth gauge (3) up to end disk (5) and read off and note down value.
Compare actual value with specified value from adjustment values table and adjust clearance using corresponding retaining ring.

Courtesy of MERCEDES-BENZ USA
