Disassemble/Assemble Planetary Gear Set 2 - AR27.50-P-0623-02EWM

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 725.0/1

Fig 1: Identifying Pliers (000 589 52 37 00)

Courtesy of MERCEDES-BENZ USA

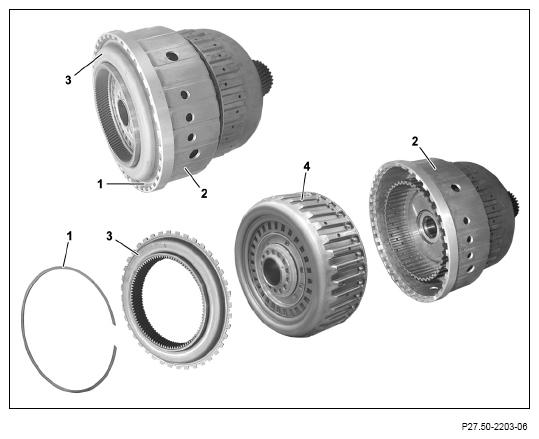

Remove retaining ring (1) from planetary gear set 2 (2).
Remove annulus gear (3).
Remove external plate carrier (4) with multidisk clutch K38.

Courtesy of MERCEDES-BENZ USA

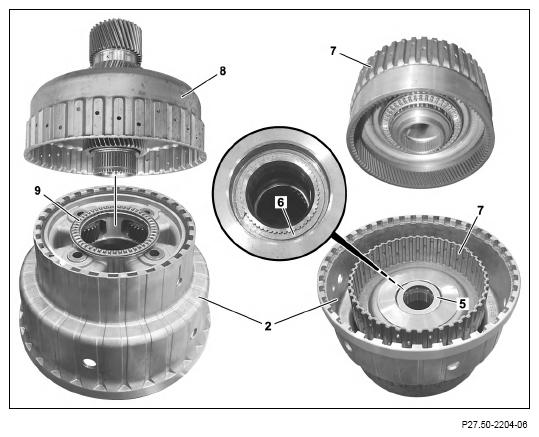

Remove thrust plate (5).
Remove retaining ring (6). Pliers
Install a new retaining ring (6).
Remove annulus gear (7).
Remove sun gear (8) from planetary gear set 2 (2).
Check sun gear (8) for damage and replace, if necessary.
Unclip needle roller bearing (9).
Check needle roller bearing (9) for damage and replace, if necessary.
Assemble in the reverse order.
