Remove/Install Bearing For Rear Axle Differential Suspension In Rear Axle Carrier - AR35.10-P-0056MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247 with engine 139, 260, 282, 654
with code M005 (Vehicles with 4MATIC/all-wheel drive)
MODIFICATION NOTES
| 26.11.2019 | Document completely revised. |
Shown on model 177 with engine 260
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on influencing load ratios when removing major assemblies | AH00.60-P-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||

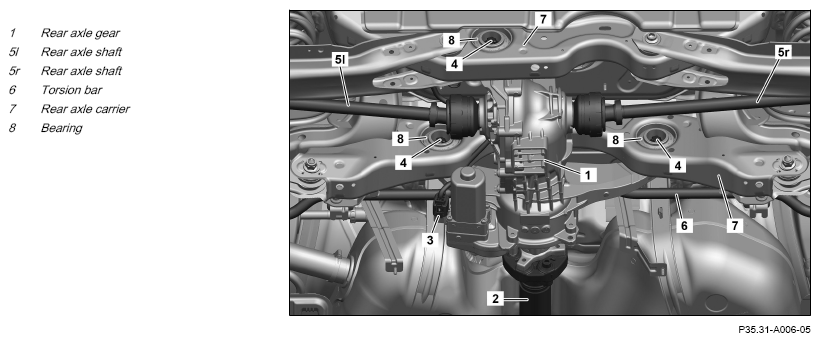

| 1 | Lower rear axle differential (1) with installed rear axle shafts (5l, 5r) until the corresponding bearing (8) can be pressed out of the rear axle carrier (7). | Model 118, 177, 247 with engine 260, 282, 654 with code M005 (Vehicles with 4MATIC/all-wheel drive) | AR35.31-P-0522MFC |
| Model 118, 177, 247 with engine 139 with code M005 (Vehicles with 4MATIC/all-wheel drive) | AR35.31-P-0522MFG | ||
| 2 | Remove torsion bar (6) from rear axle carrier (7). | If left or right front bearing (8) is to be removed. Model 118, 177, 247 with engine 139, 260, 282, 654 with code M005 (Vehicles with 4MATIC/all-wheel drive) with code U55 (Multi-link axle) |
AR32.20-P-0315MFA |
| 3 | Press corresponding bearing (8) out of rear axle carrier (7). | Front right bearing (8) | AR35.10-P-0056-01MFC |
| Front left bearing (8) | AR35.10-P-0056-02MFC | ||
| Rear bearing (8) | AR35.10-P-0056-04MFC | ||
| Mobil Vacuoline 137 insertion agent, 0.5 L | *BR00.45-Z-1097-06A | ||
| Fig 4 | |||
| Fig 1 | |||
| Fig 2 | |||
| Fig 3 | |||
| 4 | Install in the reverse order. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1097-06A | Mobil Vacuoline 137 insertion agent, 0.5 I | A 000 989 18 60 09 |
