Remove/Install Bearing For Rear Axle Differential Suspension In Rear Axle Carrier At Right Front - AR35.10-P-0056-01MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118, 177, 247 with engine 139, 260, 282, 654

with code M005 (Vehicles with 4MATIC/all-wheel drive)

Fig 1: Identifying Hand Pump (652 589 00 33 21)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Hydraulic Cylinder (001 589 60 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Extraction And Insertion Tool (176 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Hydraulic Hose (Complete) (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1097-06A	Mobil Vacuoline 137 insertion agent, 0.5 L	A 000 989 18 60 09

Courtesy of MERCEDES-BENZ USA

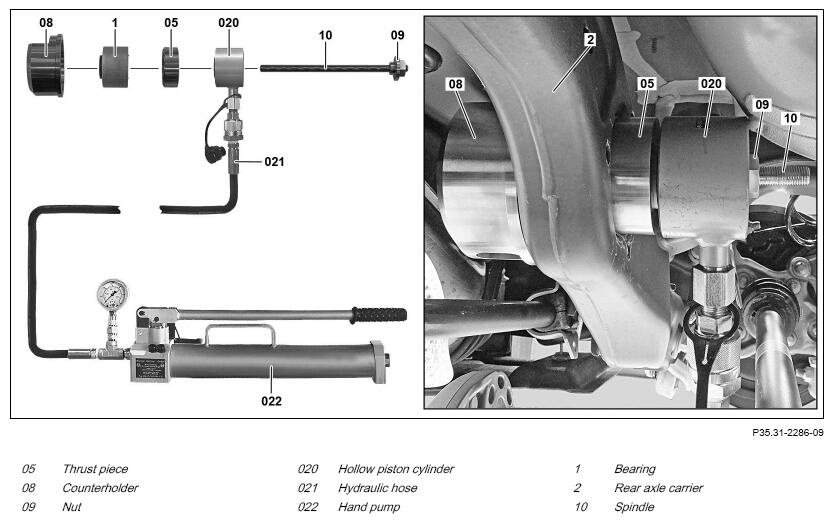

Shown on model 177

Remove

Required special tools:

Hydraulic cylinder (020) 001 589 60 33 00
Hydraulic hose (021) 652 589 00 33 23
Hand pump (022) 652 589 00 33 21

The following tools are required from the extraction and insertion tool 176 589 00 43 00:

Thrust piece (05) 176 589 00 43 05
Counterholder (08) 176 589 00 43 08
Nut (09) 176 589 00 43 09
Spindle (10) 176 589 00 43 10

Mount hydraulic cylinder (020) with hydraulic hose (021) on hand pump (022).
Position spindle (10), nut (09), hydraulic cylinder (020), thrust piece (05) and counterholder (08) on bearing (1) and rear axle carrier (2) as shown.

The chamfer on thrust piece (05) must point to the bearing (1).
Press bearing (1) forward out of the rear axle carrier (2).

If hydraulic cylinder (020) reaches its maximum stroke, release pressure on hand pump (022), and tighten nut (09). Then repeat the press-out procedure.
Remove spindle (10), nut (09), hydraulic cylinder (020), hydraulic hose (021), thrust piece (05), counterholder (08) and bearing (1).

Courtesy of MERCEDES-BENZ USA

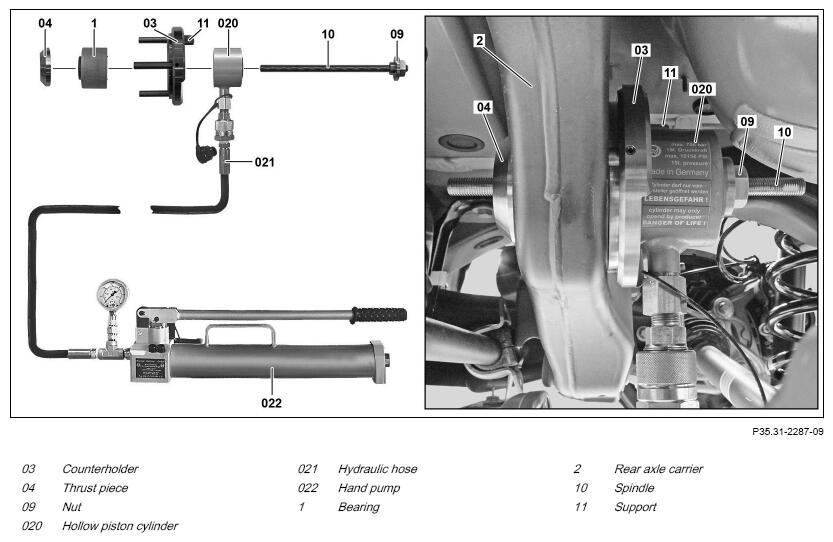

Shown on model 177

Install

Required special tools:
- Hydraulic cylinder (020) 001 589 60 33 00
- Hydraulic hose (021) 652 589 00 33 23
- Hand pump (022) 652 589 00 33 21
The following tools are required from the extraction and insertion tool 176 589 00 43 00:
- Counterholder (03) 176 589 00 43 03
- Thrust piece (04) 176 589 00 43 04
- Nut (09) 176 589 00 43 09
- Spindle (10) 176 589 00 43 10
- Support (11) 176 589 00 43 11
Insert counterholder (03) into rear axle carrier (2).

The support (11) must not be mounted to counterholder (03) when installing.

The arrow on the counterholder (03) must point downward.
Screw support (11) finger-tight into counterholder (03).
Apply insertion agent to bearing (1).
Position spindle (10), nut (09), hydraulic cylinder (020), thrust piece (04) and bearing (1) at rear axle carrier (2) and counterholder (03) as shown.

The protrusion of bearing (1) must face forward.
Press bearing (1) rearward into rear axle carrier (2).

If hydraulic cylinder (020) reaches its maximum stroke, release pressure on hand pump (022), tighten nut (09). Then repeat the press-in procedure.
Remove spindle (10), nut (09), hydraulic cylinder (020) and thrust piece (04).
Unscrew support (11) from counterholder (03) and remove counterholder (03) from rear axle carrier (2).
Wipe off excess insertion agent.
