Remove/Install Rear Axle Differential - AR35.31-P-0522MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118, 177, 247 with engine 260, 282, 654

with code M005 (Vehicles with 4MATIC/all-wheel drive)

MODIFICATION NOTES

13.02.2020 Rear axle differential filling capacity Model 118 (except 118.353/354/653/654) model 177 (except 177.053/054) model 247 (except 247.753/754) BF35.31-P-1001-02F

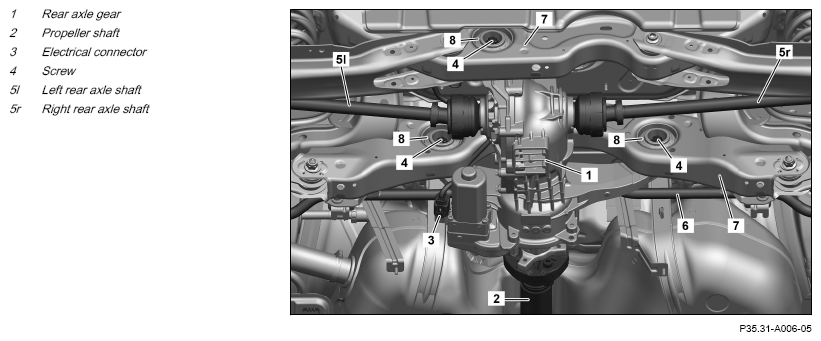

G16049188Courtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of accident  caused by vehicle starting off on its own when jacked up. Risk of injury  caused by rotating parts when working on running engine or drive train. Ensure that jack stands are standing firmly. An authorized person must occupy the driver's seat. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0008-01A
CAUTION Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.		 AS00.40-Z-0001-01A
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
Notice  Information on influencing load ratios when removing major assemblies   AH00.60-P-0001-01A
  Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1 Raise vehicle using vehicle lift and secure in place. IMPORTANT Installation: Only lower and release the vehicle after the leak test. AR00.60-P-0100-01A
    SPECIAL TOOL Vehicle hoist securing tool Fig 1
2 Remove propeller shaft (2).   AR41.10-P-0050MFA
3 Remove trim of rear axle carrier. Model 118, 177, 247 with engine 260 with code M005 (Vehicles with 4MATIC/all-wheel drive) with code U55 (Multi-link axle) except code M016 (Uprated engine)
Model 118, 177, 247 with engine 282, 654 with code M005 (Vehicles with 4MATIC/all-wheel drive)
with code U55 (Multi-link axle)
IMPORTANT Installation: Mount rear axle carrier trim only after leak test.		 AR61.30-P-0050MFA
4 Drain oil from rear axle differential (1). When replacing rear axle differential (1).
REFER TO MAINTENANCE   Model 118 (except 118.351/651) with engine 260, 282, 654 with code 800 (Model year 2020) with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 118 (except 118.351/651) with engine 260, 282, 654 with code 809 (Model year 2019) with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 177 (except 177.051/151/951) with engine 260, 282, 654 with code 800 (Model year 2020) with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 177 (except 177.051/151/951) with engine 260, 282, 654 with code 809 (Model year 2019) with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 247 (except 247.651/751) with engine 260, 282, 654 with code 800 (Model year 2020) with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 247 (except 247.651/751) with engine 260, 282, 654
with code 809 (Model year 2019) with code M005 (Vehicles with 4MATIC/all-wheel drive)		 AP35.00-P-3501MFA
REFER TO MAINTENANCE   Model 118.351/651 with code 800 (Model year 2020)
with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 118.351/651 with code 809 (Model year 2019) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 177.051/151/951 with code 800 (Model year 2020) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 177.051/151/951 with code 809 (Model year 2019) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 247.651/751 with code 800 (Model year 2020) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 247.651/751 with code 809 (Model year 2019) with code M005 (Vehicles with 4MATIC/all-wheel drive)		 AP35.00-P-3501I
5 Release and disconnect electrical connector (3) and unclip electric line from rear axle differential (1).   AR35.40-P-7401MFC
6 Remove left rear axle shaft (5l).   AR35.30-P-0621MFC
7 Support and secure rear axle differential (1).
REFER TO SPECIAL TOOLS 000 588 24 62 00 Major assembly mount   WS01.00-P-0253B
REFER TO SPECIAL TOOLS 000 588 23 62 00 Mounting plate   WS26.00-P-0415B
8 Counterhold nuts and remove screws (4). TORQUE SPECIFICATION Nut, rear axle differential to rear axle carrier at front (multi-link axle) *BA35.31-P-1001-07A
    TORQUE SPECIFICATION Bolt, rear axle differential to rear axle carrier at rear (multi-link axle) *BA35.31-P-1002-07A
9 Pry right rear axle shaft (5r) out of rear axle differential (1) and secure against falling down. NOTES
Do not damage radial shaft sealing ring of right rear axle shaft (5r).
Otherwise leaks may occur.		 AR35.30-P-0621MFC
10 Lower and remove rear axle differential (1).
REFER TO SPECIAL TOOLS 000 588 24 62 00 Major assembly mount   WS01.00-P-0253B
REFER TO SPECIAL TOOLS 000 588 23 62 00 Mounting plate   WS26.00-P-0415B
11 Install in the reverse order.
12 Check and correct oil level in rear axle differential (1).   AR35.31-P-0520-08MFC
    FLUID SPECIFICATION Rear axle differential filling capacity *BF35.31-P-1001-02F
    Sealant, Omnifit 100H (50 g) *BR00.45-Z-1061-01A
    Loctite 7063 (400 ml) cleaning spray *BR00.45-Z-1046-04A
    TORQUE SPECIFICATION Filling screw/drain screw to housing cover at front/side *BA35.31-P-1005-07A
13 Reset wear data in all-wheel drive control unit (N15/17) using diagnostic system. When replacing rear axle differential (1).
REFER TO DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06MFA
14 Check rear axle differential (1) for leak tightness.
15 Install trim of rear axle carrier. Model 118, 177, 247 with engine 260 with code M005 (Vehicles with 4MATIC/all-wheel drive)
with code U55 (Multi-link axle) except code M016 (Uprated engine) Model 118, 177, 247 with engine 282, 654 with code M005 (Vehicles with 4MATIC/all-wheel drive) with code U55 (Multi-link axle)		 AR61.30-P-0050MFA
16 Release vehicle and lower on vehicle lift.   AR00.60-P-0100-01A
    SPECIAL TOOL Vehicle hoist securing tool Fig 1
REAR AXLE GEAR

Number Designation Model 118 Model 177
BA35.31-P-1001-07A Nut, rear axle differential to rear axle carrier at front (multi-link axle) M14 Nm 150 150
REAR AXLE GEAR

Number Designation Model 247
BA35.31-P-1001-07A Nut, rear axle differential to rear axle carrier at front (multi-link axle) M14 Nm 150
REAR AXLE GEAR

Number Designation Model 118 Model 177
BA35.31-P-1002-07A Bolt, rear axle differential to rear axle carrier at rear (multi-link axle) M14 Nm 150 150
REAR AXLE GEAR

Number Designation Model 247
BA35.31-P-1002-07A Bolt, rear axle differential to rear axle carrier at rear (multi-link axle) M14 Nm 150
REAR AXLE GEAR

Number Designation Model 118 Model 177
BA35.31-P-1005-07A Filling screw/drain screw to housing cover at front/side Nm 35 35
REAR AXLE GEAR

Number Designation Model 247
BA35.31-P-1005-07A Filling screw/drain screw to housing cover at front/side Nm 35
REAR AXLE GEAR

Number Designation Model 118 (except 118.353/354/653/65 4) Model 177 (except 177.053/054) Model 247 (except 247.753/754)
BF35.31-P-1001-02F Rear axle differential filling capacity Rear axle differential 150 Liter 0, 6
Specified gear oils - overview   BB00.40-P-0231-01A
Approved axle gear oils   BB00.40-P-0235A
Fig 1: Identifying Vehicle Hoist Securing Tool (171 589 01 31 00)
G12618350Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1046-04A Loctite 7063 (400 ml) cleaning spray A 001 986 71 71 09
BR00.45-Z-1061-01A Sealant, Omnifit 100H (50 g) A 002 989 23 71
