Remove/Install Rear Axle Differential - AR35.31-P-0522MFG
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247 with engine 139
with code M005 (Vehicles with 4MATIC/all-wheel drive)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Information on influencing load ratios when removing major assemblies | AH00.60-P-0001-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Secure vehicle on vehicle lift. | AR00.60-P-1006A | |
| 2 | Remove propeller shaft. | AR41.10-P-0050MFA | |

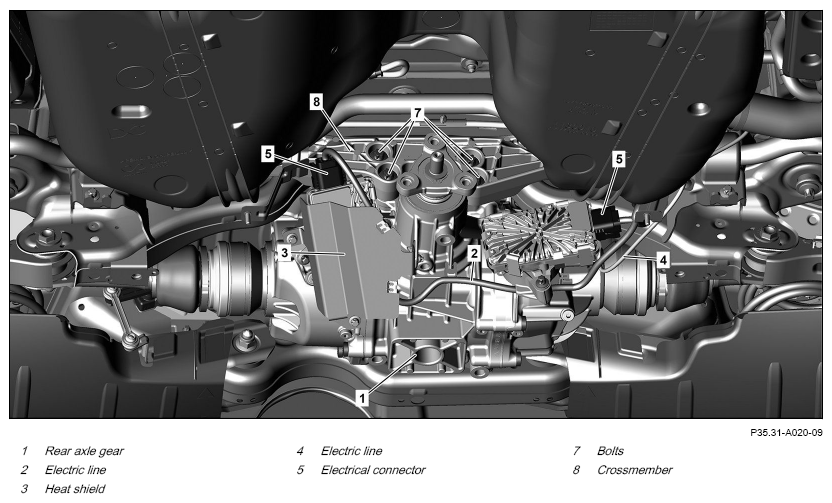

| 3 | Remove electric line (2) from heat shield (3). | Fig 2 | |
| 4 | Remove electric line (4) from rear axle differential (1). | Fig 2 | |
| 5 | Release electrical connections (5) and disconnect. | ||
| 6 | Prop up rear axle differential (1) and lash down securely. | ||
| 000 588 24 62 00 Major assembly mount | WS01.00-P-0253B | ||
| 000 588 23 62 00 Mounting plate | WS26.00-P-0415B | ||

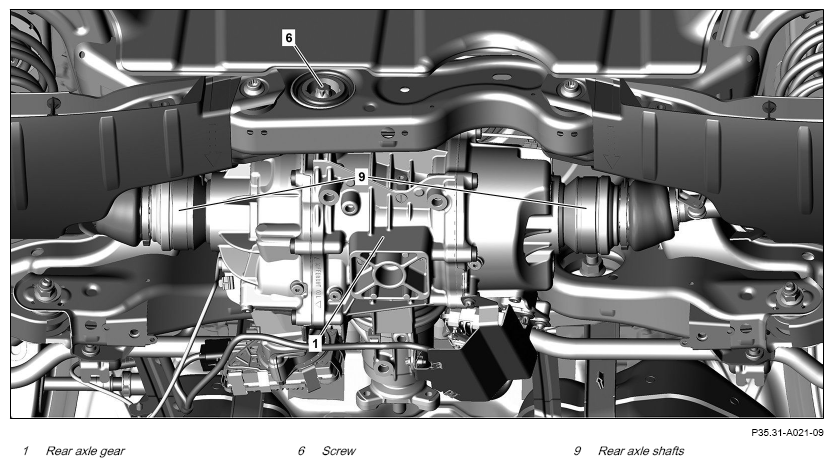

| 7 | Remove screw (6). | *BA35.31-P-1002-07A | |
| 8 | Remove screws (7). | *BA35.31-P-1009-07A | |
| 9 | Pry crossmember (8) off rear axle differential (1). | Attach crossmember (8) to rear axle differential (1) in correct installation position. Otherwise, the fitting sleeves located in the crossmember (8) will be damaged. |
|
| 10 | Press rear axle shafts (9) out of coupling housings. | Fig 1 | |
| 11 | Lower rear axle differential (1) until the rear axle shafts (9) can be fully pulled out of the coupling housings. | ||
| 12 | Pull rear axle shafts (9) out of coupling housings and secure against falling down. | ||
| 13 | Lower rear axle differential (1) completely. | ||
| Check | |||
| 14 | Check radial shaft sealing rings for damage. | If damage is found, ↓ Replace radial shaft sealing rings. |
AR35.31-P-0542MFC |
| 15 | Install in the reverse order. | ||
| Check | |||
| 16 | Check and correct rear axle differential oil level of couplings. | Model 118, 177, 247 with engine 139 with code M005 (Vehicles with 4MATIC/all-wheel drive) | |
| Rear axle - oil change | Model 118.353/354/653/654, 177.053/054 with engine 139 with code M005 (Vehicles with 4MATIC/all-wheel drive) | AP35.00-P-3501E | |
| Risk of accident caused by vehicle starting off on its own when jacked up. Risk of injury caused by rotating parts when working on running engine or drive train. | Ensure that jack stands are standing firmly. An authorized person must occupy the driver's seat. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0008-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 17 | Carry out engine test run and check rear axle differential (1) for leak tightness. | ||
| 18 | Release and lower vehicle. | AR00.60-P-1006A |
REAR AXLE GEAR
| Number | Designation | Model 118 | Model 177 | ||
|---|---|---|---|---|---|
| BA35.31-P-1002-07A | Bolt, rear axle differential to rear axle carrier at rear (multi-link axle) | M14 | Nm | 150 | 150 |
REAR AXLE GEAR
| Number | Designation | Model 247 | ||
|---|---|---|---|---|
| BA35.31-P-1002-07A | Bolt, rear axle differential to rear axle carrier at rear (multi-link axle) | M14 | Nm | 150 |
REAR AXLE GEAR
| Number | Designation | Model 118 | Model 177 | |
|---|---|---|---|---|
| BA35.31-P-1009-07A | Screw, crossmember to rear axle differential | Nm | 60 | 60 |
REAR AXLE GEAR
| Number | Designation | Model 247 | |
|---|---|---|---|
| BA35.31-P-1009-07A | Screw, crossmember to rear axle differential | Nm | 60 |
