Remove/Install Bearing For Rear Axle Differential Suspension In Rear Axle Carrier At Left Front - AR35.10-P-0056-02MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118, 177, 247 with engine 139, 260, 282, 654

with code M005 (Vehicles with 4MATIC/all-wheel drive)

Fig 1: Identifying Hand Pump (652 589 00 33 21)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Hydraulic Cylinder (001 589 60 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Extraction And Insertion Tool (176 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Hydraulic Hose (Complete) (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1097-06A	Mobil Vacuoline 137 insertion agent, 0.5 L	A 000 989 18 60 09

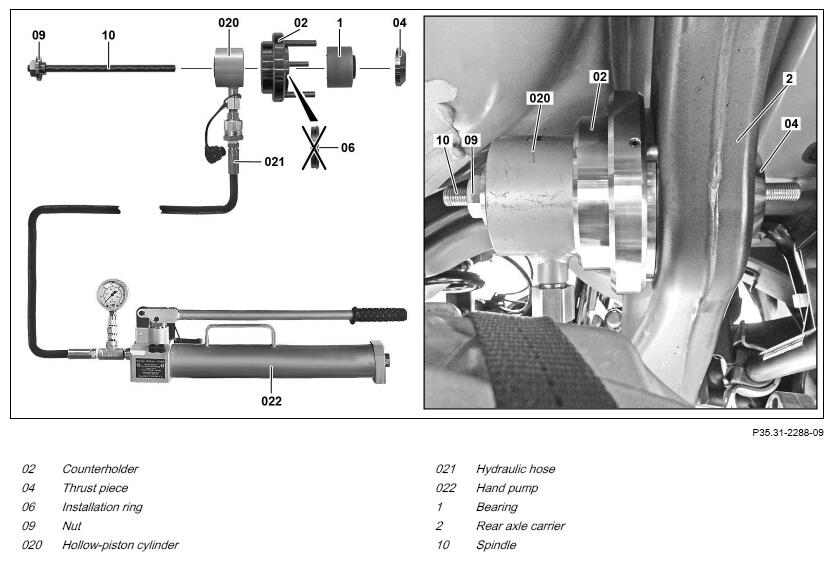

Courtesy of MERCEDES-BENZ USA

Shown on model 177

Remove

Required special tools:

Hydraulic cylinder (020) 001 589 60 33 00
Hydraulic hose (021) 652 589 00 33 23
Hand pump (022) 652 589 00 33 21

The following tools are required from the extraction and insertion tool 176 589 00 43 00:

Counterholder (02) 176 589 00 43 02
Thrust piece (04) 176 589 00 43 04
Nut (09) 176 589 00 43 09
Spindle (10) 176 589 00 43 10

Mount hydraulic cylinder (020) with hydraulic hose (021) to hand pump (022).
Insert counterholder (02) from rear into rear axle carrier (2).

When removing, the installation ring (06) must not be attached to the counterholder (02).

The arrow on the counterholder (02) must point downward.
Position spindle (10), nut (09), hydraulic cylinder (020) and thrust piece (04) at bearing (1) and counterholder (02) as shown.
Press bearing (1) rearward out of the rear axle carrier (2).

If hydraulic cylinder (020) reaches its maximum stroke, release pressure on hand pump (022), and tighten nut (09). Then repeat the press-out procedure.
Remove spindle (10), nut (09), hydraulic cylinder (020), thrust piece (04) and bearing (1).
Remove counterholder (02) from rear axle carrier (2).

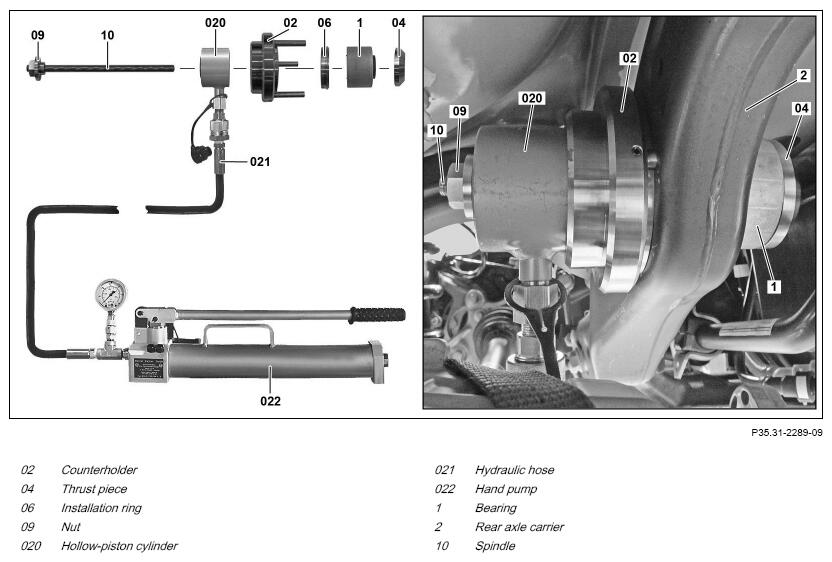

Courtesy of MERCEDES-BENZ USA

Shown on model 177

Install

Required special tools:
- Hydraulic cylinder (020) 001 589 60 33 00
- Hydraulic hose (021) 652 589 00 33 23
- Hand pump (022) 652 589 00 33 21
The following tools are required from the extraction and insertion tool 176 589 00 43 00:
- Counterholder (02) 176 589 00 43 02
- Thrust piece (04) 176 589 00 43 04
- Installation ring (06) 176 589 00 43 06
- Nut (09) 176 589 00 43 09
- Spindle (10) 176 589 00 43 10
Insert installation ring (06) into counterholder (02) and engage.

Installation ring (06) determines the end position of the bearing (1) in the rear axle carrier (2).
Insert counterholder (02) with installation ring (06) from rear into rear axle carrier (2).

The arrow on the counterholder (02) must point downward.
Apply insertion agent to bearing (1).
Position spindle (10), nut (09), hydraulic cylinder (020), bearing (1) and thrust piece (04) on rear axle carrier (2) and counterholder (02) as shown.

The protrusion of bearing (1) must face forward.
Press bearing (1) rearward into rear axle carrier (2).

If hydraulic cylinder (020) reaches its maximum stroke, release pressure on hand pump (022), tighten nut (09). Then repeat the press-in procedure.
Remove spindle (10), nut (09), hydraulic cylinder (020) and thrust piece (04).
Remove counterholder (02) with installation ring (06) from rear axle carrier (2).
Wipe off excess insertion agent.
