Remove/Install Rear Door Armrest - AR72.12-P-1020MFA

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118, 177

Courtesy of MERCEDES-BENZ USA

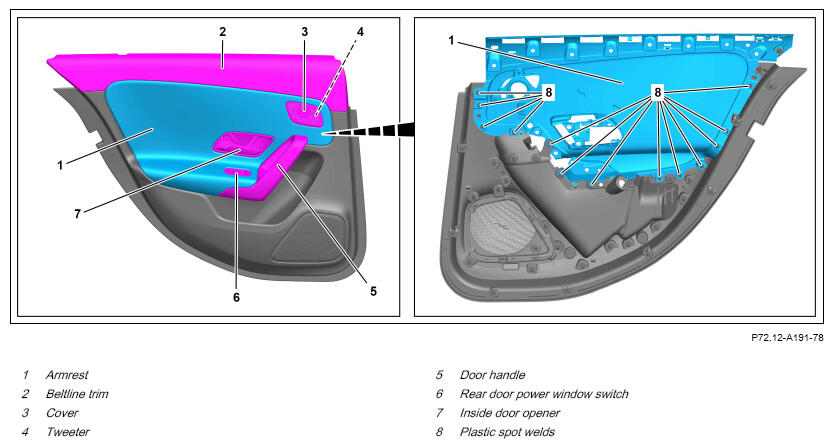

Shown on model 177 with code 810 (Premium sound system) on left side of vehicle

	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on replacing plastic welded components of door panel		AH72.00-P-0001-01A
	Remove
1	Remove inside door opener (7) from the rear door.		AR72.12-P-2310MFA
2	Remove beltline trim (2) of rear door.		AR72.12-P-0009MFA
3	Remove inner door handle (5) on rear door.		AR72.12-P-2411MFA
4	Remove rear door power window assembly switch (6).		AR72.29-P-0002MFA
5	Remove cover (3) and the tweeter (4).	Model 118, 177 with code 810 (Premium sound system) Model 118, 177 with code 853 ("Midline" sound system)
6.1	Drill plastic spot welds (8).	If armrest (1) has been plastics welded.	AR72.00-P-0001-01LW
6.2	Unscrew screws from plastic spot welds (8).	If armrest (1) has been screwed on.
7	Remove armrest (1).
	Install
8	Install armrest (1) and screw on at plastic spot welds (8).	The number of screws required corresponds to the number of plastic spot welds drilled (8).	AR72.00-P-0001-01LW
9	Install tweeter (4) and cover (3).	Model 118, 177 with code 810 (Premium sound system) Model 118, 177 with code 853 ("Midline" sound system)
10	Install rear door power window assembly switch (6).		AR72.29-P-0002MFA
11	Install inner door handle (5) on rear door.		AR72.12-P-2411MFA
12	Install beltline trim (2) of rear door.		AR72.12-P-0009MFA
13	Install inside door opener (7) on the rear door.		AR72.12-P-2310MFA
