Remove/Install Rear Door Beltline Trim - AR72.12-P-0009MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247

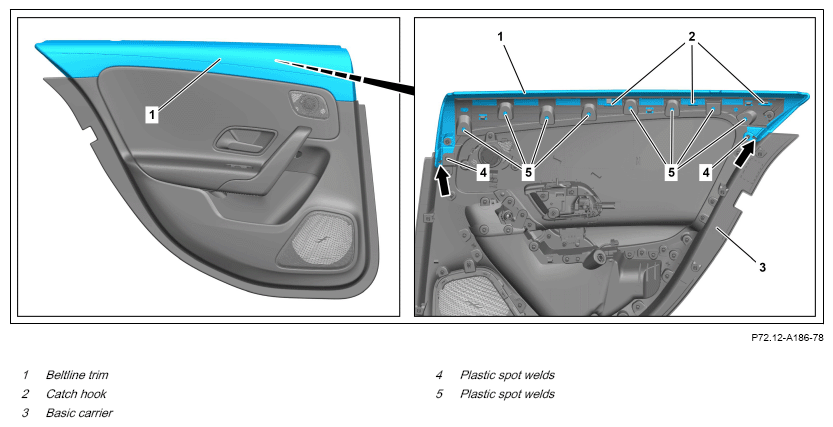

Shown on model 177 on left side of vehicle

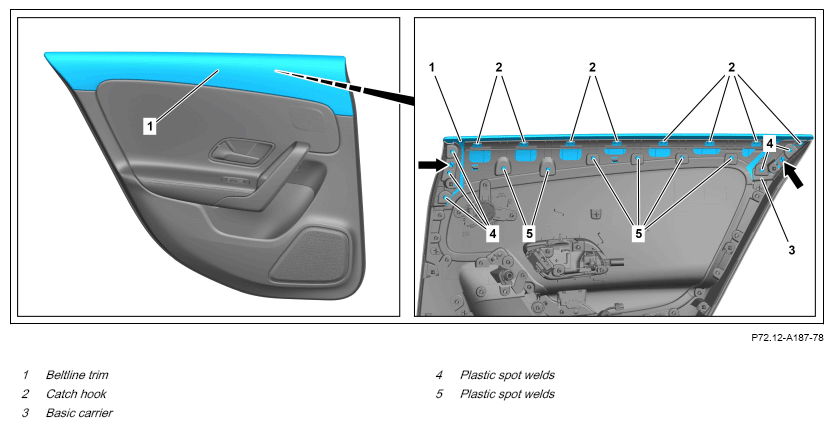

Shown on model 118 on left side of vehicle

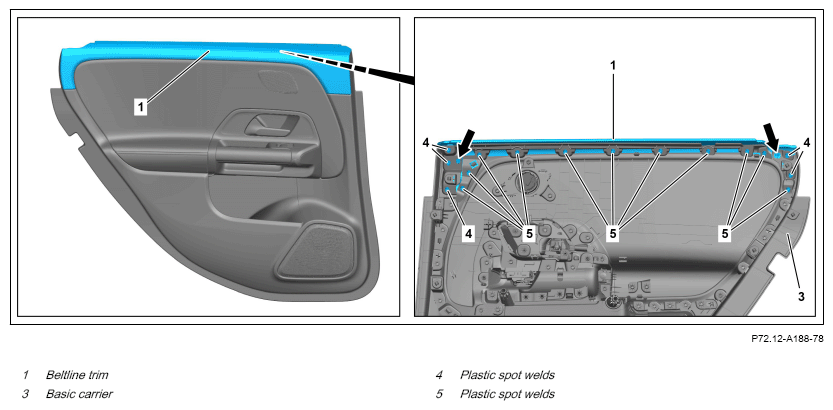

Shown on model 247 on left side of vehicle
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on replacing plastic welded components of door panel | AH72.00-P-0001-01A | ||
| Remove | |||
| 1 | Remove corresponding door trim of rear door. | AR72.12-P-1011MFA | |
| 2.1 | Drill plastic spot welds (4, 5). | If beltline trim (1) has been plastics welded. | AR72.00-P-0001-01LW |
| 2.2 | Unscrew screws from plastic spot welds (4, 5). | If beltline trim (1) has been screwed on. | |
| 3 | Release catch hooks (2). | Model 118, 177 |
Fig 1 |
| 4 | Remove beltline trim (1). | Fig 2 | |
| Install | |||
| 5.1 | Install beltline trim (1), clip into the catch hooks (2), screw on to the plastic spot welds (4, 5). | Model 118, 177 Ensure that the beltline trim (1) is correctly seated in the basic carrier (3) (arrows). |
AR72.00-P-0001-01LW |
| 5.2 | Install beltline trim (1) and screw on at plastic spot welds (4, 5). | Model 243, 247 Ensure that the beltline trim (1) is correctly seated in the basic carrier (3) (arrows). |
AR72.00-P-0001-01LW |
| 6 | Install corresponding rear door trim. | AR72.12-P-1011MFA |
