Remove/Install Inner Door Handle On Rear Door - AR72.12-P-2411MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177
Shown on model 177 with code 877 (Ambient lighting) on left side of vehicle
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on replacing plastic welded components of door panel | AH72.00-P-0001-01A | ||
| Remove | |||

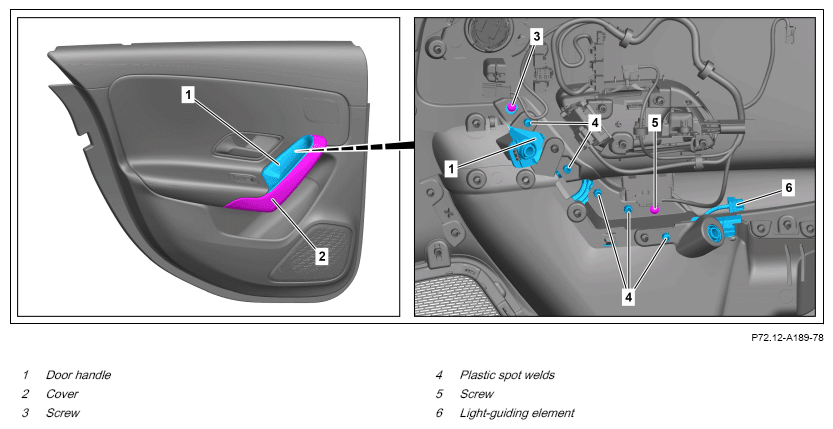

| 1 | Remove corresponding door trim of rear door. | AR72.12-P-1011MFA | |
| 2 | Unscrew screw (3) and remove cover (2). | ||
| 3 | Unscrew screw (5). | ||
| 4 | Remove electric line from light-guiding element (6). | Model 118, 177 with code 877 (Ambient lighting) |
|
| 5.1 | Drill plastic spot welds (4). | If the door handle (1) has been plastics welded. | AR72.00-P-0001-01LW |
| 5.2 | Unscrew screws from plastic spot welds (4). | If the door handle (1) has been screwed on. | |
| 6 | Extend and remove door handle (1). | ||
| Install | |||
| 7 | Install door handle (1) and screw on at plastic spot welds (4). | AR72.00-P-0001-01LW | |
| 8 | Screw in screw (5). | ||
| 9 | Install cover (2) and screw in screw (3). | ||
| 10 | Attach electric line to light-guiding element (6). | Model 118, 177 with code 877 (Ambient lighting) |
|
| 11 | Install corresponding rear door trim. | AR72.12-P-1011MFA |
