Remove/Install Switches For Rear Door Power Windows - AR72.29-P-0002MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247

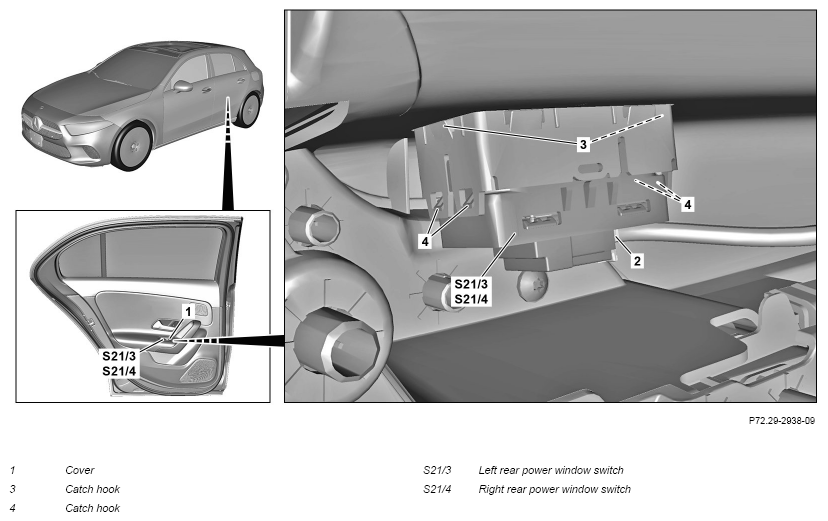

Shown on model 177.0

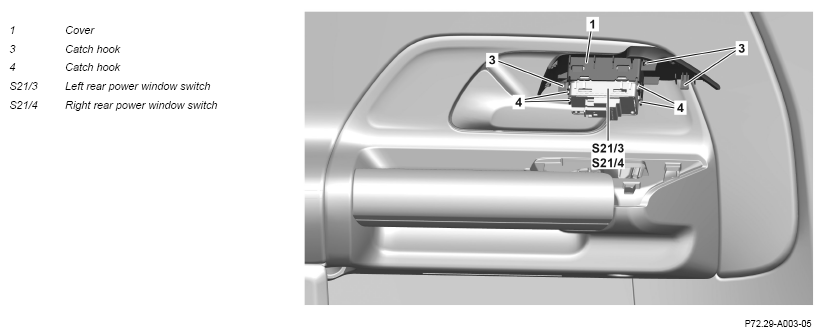

Shown on model 247.0
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Unclip the cover (1) from the catch hooks (3) and pull it out carefully until the electrical connector is accessible. | Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function If damage is present: ↓ Replace cover (1). |
Fig 1 |
| 3 | Release and disconnect electrical connector. | ||
| 4 | Unclip left rear power window assembly switch (S21/3) and right rear power window assembly switch (S21/4) from the catch hooks (4) and remove from the cover (1). | If damage is present: ↓ Replace cover (1). |
|
| 5 | Install in the reverse order. |
