Remove/Install Rear Side Door Interior Actuating Mechanism - AR72.12-P-2310MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247

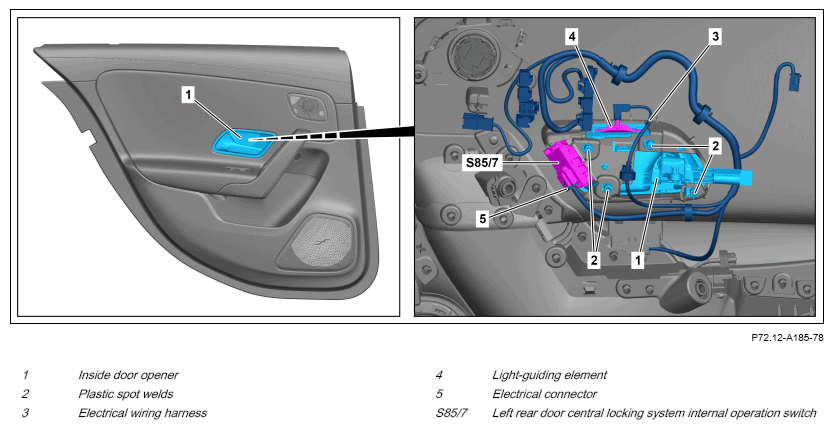

Shown on model 177 with code 494 (USA version) and code 877 (Ambient lighting on the left side of the vehicle)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on replacing plastic welded components of door panel | AH72.00-P-0001-01A | ||
| Remove | |||
| 1 | Remove corresponding door trim of rear door. | AR72.12-P-1011MFA | |
| 2 | Remove light-guiding element (4) and electrical wiring harness (3) and place to one side. | Model 118, 177, 243, 247 with code 877 (Ambient lighting) |
|
| 3 | Release and disconnect electrical connector (5) and remove the left rear door central locking system internal operation switch (S85/7)/the right rear door central locking system internal operation switch (S85/8). | Model 118, 177, 243 with code 460 (Canada version) with code 494 (US version) |
|
| 4.1 | Drill plastic spot welds (2) and remove inside door opener (1). | If the inside door opener (1) has been plastics welded. | AR72.00-P-0001-01LW |
| 4.2 | Unscrew screws from plastic spot welds (2) and remove inside door opener (1). | If the inside door opener (1) has been screwed on. | |
| Install | |||
| 5 | Install inside door opener (1) and screw on at plastic spot welds (2). | AR72.00-P-0001-01LW | |
| 6 | Install light-guiding element (4) and electrical wiring harness (3). | Model 118, 177, 243, 247 with code 877 (Ambient lighting) |
|
| 7 | Install the left rear door central locking system internal operation switch (S85/7)/the right rear door central locking system internal operation switch (S85/8), connect and lock electrical connector (5). | Model 118, 177, 243 with code 460 (Canada version) with code 494 (US version) |
|
| 8 | Install corresponding rear door trim. | AR72.12-P-1011MFA |
