Correct Articulation Angle Of Propeller Shaft - AR41.10-P-0090MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118, 177, 247

with code M005 (Vehicles with 4MATIC/all-wheel drive)

Courtesy of MERCEDES-BENZ USA

Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on measuring the drive shaft articulation angle		AH41.10-P-0002-01LF
	Correct
1	Lift vehicle with vehicle lift.		AR00.60-P-1006A

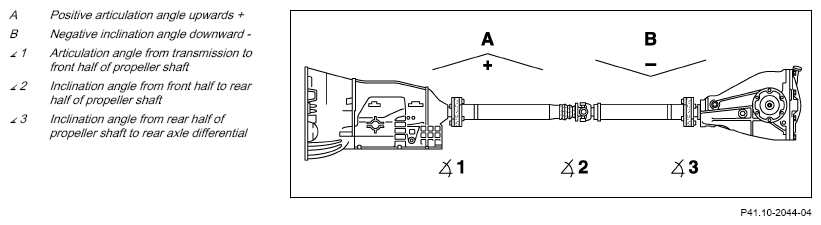

	Correct articulation angle from power take-off flange to front half of propeller shaft (∠1)
2	Remove bottom engine compartment paneling.	Model 118, 177, 247 with engine 260 with code M005 (Vehicles with 4MATIC/all-wheel drive) with code M016 (Uprated engine) Model 177 with engine 139 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR61.20-P-1105MFR
		Model 118, 177, 247 with engine 260 with code M005 (Vehicles with 4MATIC/all-wheel drive) except code M016 (Uprated engine) Model 118, 177, 247 with engine 282 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR61.20-P-1105MFA
		Model 118, 177, 247 with engine 654 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR61.20-P-1105MFE
3	Remove battery carrier.		AR54.10-P-0028MFA
4	Check right engine mount for signs of settling and wear.	If problems occur: ↓ replace right engine mount. Model 177 with engine 139 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR22.10-P-1102MFG
		Model 118, 177, 247 with engine 260 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 118, 177, 247 with engine 282 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR22.10-P-1102MFD
		Model 118, 177, 247 with engine 654 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR22.10-P-1102MFF
5	Check bearing of transmission mounting for signs of settling or wear.	If problems occur: ↓ replace bearing of transmission suspension. Model 118, 177, 247 with transmission 724.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 118, 177, 247 with transmission 724.1 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR27.10-P-0002MFA
6	Install battery carrier.		AR54.10-P-0028MFA
7	Install lower engine compartment lining.	Remove/install lower engine compartment lining Model 118, 177, 247 with engine 260 with code M005 (Vehicles with 4MATIC/all-wheel drive) with code M016 (Uprated engine) Model 177 with engine 139 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR61.20-P-1105MFR
		Model 118, 177, 247 with engine 654 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR61.20-P-1105MFE
		Model 118, 177, 247 with engine 260 with code M005 (Vehicles with 4MATIC/all-wheel drive) except code M016 (Uprated engine) Model 118, 177, 247 with engine 282 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR61.20-P-1105MFA
8	Perform monitoring test.		AR41.10-P-0086MFC
	Correct articulation angle of front half to rear
	half of propeller shaft (x 2)
9	Support propeller shaft using support plate and major assembly mount.
	000 588 23 62 00 Mounting plate		WS26.00-P-0415B
	000 588 24 62 00 Major assembly mount		WS01.00-P-0253B
10	Correct articulation angle (x 2) at propeller shaft intermediate bearing.		AR41.10-P-0086-04MFC
		Bolt, propeller shaft intermediate bearing to frame floor assembly	*BA41.40-P-1001-01G
		Screw, center cross strut (front) to frame floor assembly	*BA61.10-P-1001-01N
11	Remove support plate and major assembly support.
	000 588 23 62 00 Mounting plate		WS26.00-P-0415B
	000 588 24 62 00 Major assembly mount		WS01.00-P-0253B
12	Perform monitoring test.		AR41.10-P-0086MFC
	Correct articulation angle from rear half of propeller shaft to rear axle differential (x 3)
13	Correct articulation angle (x 3) at rear axle differential.	Model 118, 177, 247 with engine 260, 282, 654 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR41.10-P-0086-12MFC
		Model 118, 177, 247 with engine 139 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR41.10-P-0086-12MFG
	000 588 23 62 00 Mounting plate		WS26.00-P-0415B
	000 588 24 62 00 Major assembly mount		WS01.00-P-0253B
		Bolt, rear axle differential to rear axle carrier at rear (multi-link axle)	*BA35.31-P-1002-07A
		Inclination angle from rear propeller shaft to rear axle differential	*BE41.10-P-1003-01D
14	Perform monitoring test.		AR41.10-P-0086MFC

CHECK VALUES FOR PROPELLER SHAFT ARTICULATION ANGLE

Number	Designation			Model 118, 177, 247
BE41.10-P-1003-01D	Inclination angle from rear propeller shaft to rear axle differential	(∠3)	∠°	-1, 0...-0, 15

REAR AXLE GEAR

Number	Designation			Model 118	Model 177
BA35.31-P-1002-07A	Bolt, rear axle differential to rear axle carrier at rear (multi-link axle)	M14	Nm	150	150

REAR AXLE GEAR

Number	Designation			Model 247
BA35.31-P-1002-07A	Bolt, rear axle differential to rear axle carrier at rear (multi-link axle)	M14	Nm	150

PROPELLER SHAFT INTERMEDIATE BEARING

Number	Designation		Model 118, 177, 247
BA41.40-P-1001-01G	Bolt, propeller shaft intermediate bearing to frame floor assembly	Nm	30

FRAME FLOOR ASSEMBLY

Number	Designation			Model 118, 177, 247
BA61.10-P-1001-01N	Screw, center cross strut (front) to frame floor assembly	M10	Nm	30
