Correct Articulation Angle On Rear Axle Differential - AR41.10-P-0086-12MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118, 177, 247 with engine 260, 282, 654

with code M005 (Vehicles with 4MATIC/all-wheel drive)

	000 588 24 62 00 Major assembly mount		WS01.00-P-0253B
	000 588 23 62 00 Mounting plate		WS26.00-P-0415B

CHECK VALUES FOR PROPELLER SHAFT ARTICULATION ANGLE

Number	Designation			Model 118, 177, 247
BE41.10-P-1003-01D	Inclination angle from rear propeller shaft to rear axle differential	(∠3)	∠°	-1, 0...-0, 15

REAR AXLE GEAR

Number	Designation			Model 118	Model 177
BA35.31-P-1002-07A	Bolt, rear axle differential to rear axle carrier at rear (multi-link axle)	M14	Nm	150	150

REAR AXLE GEAR

Number	Designation			Model 247
BA35.31-P-1002-07A	Bolt, rear axle differential to rear axle carrier at rear (multi-link axle)	M14	Nm	150

Appropriate adjusting nuts (a, b, c) are available for articulation angle correction at the rear axle differential (2). One adjusting nut (a, b, c) here corresponds to a change in articulation angle of approx. ±0.23°. The dimension of the change is indicated by the numbers ("0", "1", "2") on the adjusting nuts (a, b, c). The list below shows how the determined articulation angle changes if the basic setting (adjusting nut (b) with number "1") is replaced by an adjusting nut (a) with number "0" or by an adjusting nut (c) with number "2".

Effect of adjusting nuts (a, b, c) on articulation angle (initial measurement with adjusting nut (b) with number "1" (basic setting))

Adjusting nut (a) with number "0" → determined articulation angle decreases by approx. -0.23°.

Adjusting nut (c) with number "2" → determined articulation angle increases by approx. +0.23°.

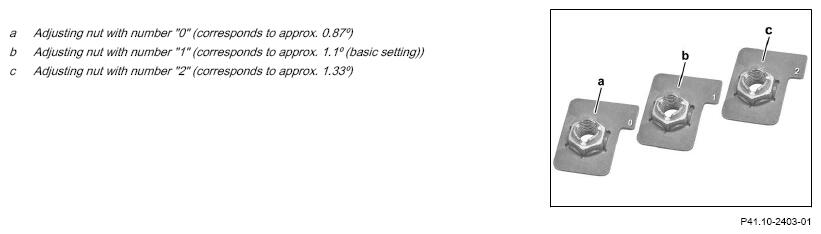

Adjusting nuts (a, b, c)

Courtesy of MERCEDES-BENZ USA

Correct articulation angle ∠3

Support rear axle differential (2).
Unscrew bolt (1) and remove adjusting nut (b).
Insert appropriate adjusting nut (a, b or c) for required correction.
Feed through new bolt (1) from rear to front and tighten .

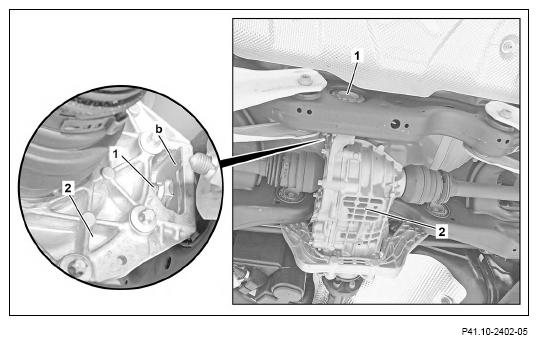

Example shown on rear axle differential (2) with adjusting nut (b) (basic setting)

Courtesy of MERCEDES-BENZ USA
