Remove/Install Upper Timing Case Cover - AR01.40-P-8001MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260 in model 118, 177, 247
MODIFICATION NOTES
| 23.07.2020 | Document revised due to method change for cylinder head removal. |
Shown on model 177 with Engine without code M016 (performance-enhanced Engine)
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of Engine oil. Risk of poisoning caused by swallowing Engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill Engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove right Engine mount. | AR22.10-P-1102MFD | |

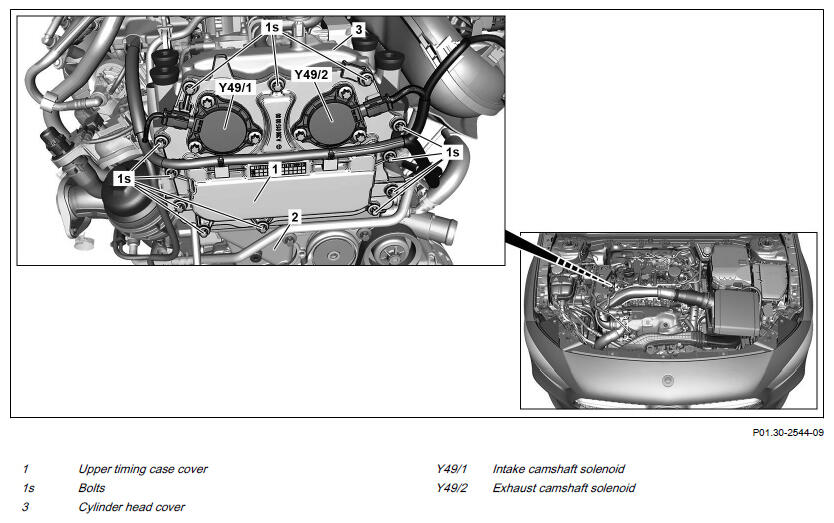

| 3 | Release and disconnect electrical connections on intake camshaft solenoid (Y49/1) and exhaust camshaft solenoid (Y49/2). | ||
| 4 | Unclip the electrical wiring harness along the upper timing case cover (1) on the cylinder head cover (3). | ||
| 5 | Remove screws (1s). | AR01.40-P-0122-01MFC | |
| *BA01.40-P-1001-01K | |||
| 6 | Carefully loosen the upper timing case cover (1) at the press-off points and remove towards the front. | AH01.30-P-1000-02MR | |
| Notes on sealant path for front cover to cylinder head xxx | Sealant, Loctite 5970, 50 ml |
*BR00.45-Z-1013-01A | |
| Fig 1 | |||
| 7 | Remove intake camshaft solenoid (Y49/1) and exhaust camshaft solenoid (Y49/2) from upper timing case cover (1). | If the upper timing case cover (1) is replaced. Remove the solenoid for the intake camshaft. |
AR05.20-P-7305MFC |
| Remove the solenoid for the exhaust camshaft. | AR05.20-P-7306MFC | ||
| Fig 2 | |||
| Clean | |||
| 8 | Clean sealing surfaces at cylinder head, cylinder head cover (3), and upper timing case cover (1). | AR01.00-P-0050-01A | |
The sealing surfaces can be damaged otherwise. Loctite 7200 |
*BR00.45-Z-1038-04A | ||
| Loctite 7063 (400 ml) cleaning spray | *BR00.45-Z-1046-04A | ||
| 9 | Install in the reverse order. | ||
| Check | |||
| 10 | Check Engine oil level and correct if necessary. | ||
Measurement errors occur otherwise. Engine damage will occur otherwise. |
AP18.00-P-1812MFA | ||
| Risk of accident from vehicle starting off by itself when Engine running. Risk of injury (bruises and burns) resulting from working on the Engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. | AS49.00-Z-0001-01A | |
| 11 | Perform Engine test run. While doing so, check Engine for proper operation and leak tightness. |
CRANKCASE, TIMING CASE COVER, END COVER
| Number | Designation | Engine 260 | |||
|---|---|---|---|---|---|
| BA01.40-P-1001-01K | Bolt, timing case cover to crankcase | M6 | Nm | 9 | |
| M8 | Stage 1 | Nm | - | ||
| Stage 2 | Nm | - | |||
| M10 | Nm | - | |||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1013-01A | Sealant, Loctite 5970, 50 ml | A 003 989 98 20 10 |
| BR00.45-Z-1038-04A | Loctite 7200 | A 010 989 90 71 |
| BR00.45-Z-1046-04A | Loctite 7063 (400 ml) cleaning spray | A 001 986 71 71 09 |
