Notes On Sealant Path For Front Cover To Cylinder Head XXX - AH01.30-P-1000-02MR
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 133
Engine 260
Engine 264
Engine 270
Engine 274
MODIFICATION NOTES
| 02.06.2017 | The specified thickness of the sealant bead was increased to 2.0 mm (±0.5 mm). |
The sealing surfaces must be cleaned.
The sealing surfaces must be flat (replace any bent component parts).

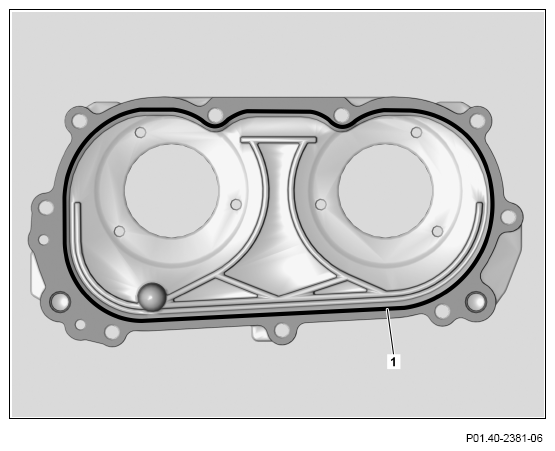

The line (1) identifies the sealant path.
Use only the sealant listed in the repair products.
Apply the sealant at the specified sealant path in the form of a bead with a height and breadth of 2.0 mm (±0.5 mm).
The sealant bead must be continuous with no interruptions.
Do not spread the sealant bead.
Maximum assembly time: 10 minutes.
Once the parts have been assembled, do not disassemble them again.

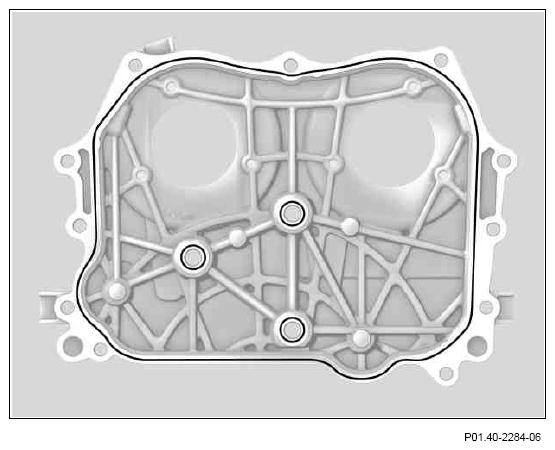

Shown on Engine 264
Shown on Engine 270
