Loosen/Tighten Upper Timing Case Cover Screws - AR01.40-P-0122-01MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260 in model 118, 177, 247
CRANKCASE, TIMING CASE COVER, END COVER
| Number | Designation | Engine 260 | |||
|---|---|---|---|---|---|
| BA01.40-P-1001-01K | Bolt, timing case cover to crankcase | M6 | Nm | 9 | |
| M8 | Stage 1 | Nm | - | ||
| Stage 2 | Nm | - | |||
| M10 | Nm | - | |||

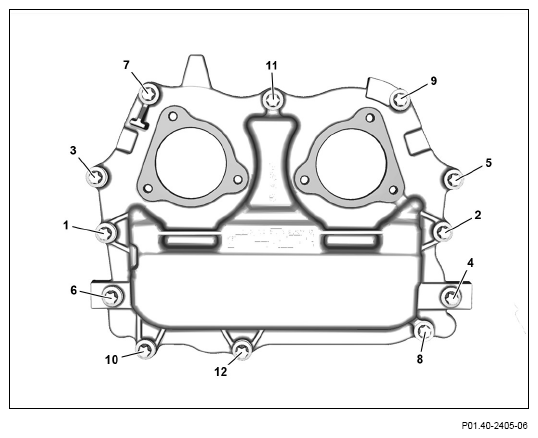

- Remove bolts (1-12) in reverse numerical order.
- Slightly attach bolts (1-12) in numerical order by hand.
- Tighten bolts (1-12) in numerical order
.
