Remove/Install Propeller Shaft - AR41.10-P-0050V

Model 171, 172

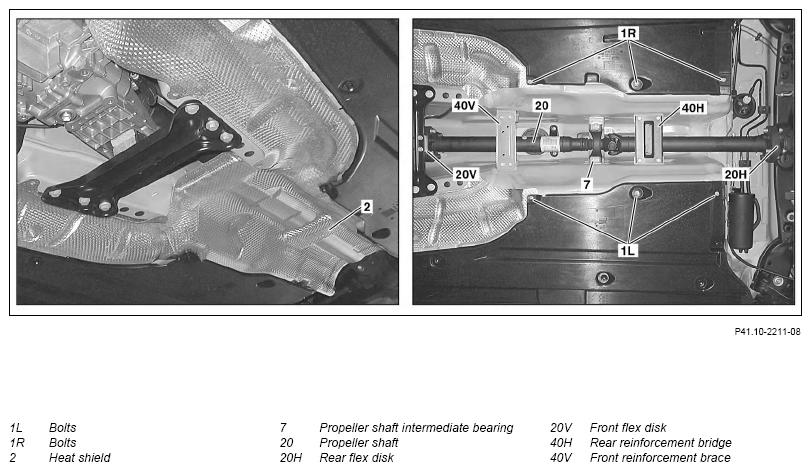

Fig 1: Propeller Shaft Components Location - Model 172 (Shown On Model 171.442)
G13842123Courtesy of MERCEDES-BENZ USA

Shown on model 171.442

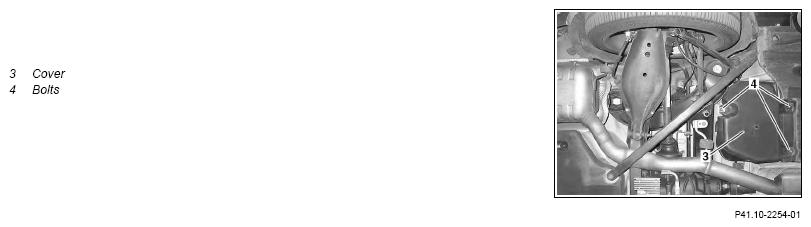

Model 171.473

G13842124Courtesy of MERCEDES-BENZ USA
NOTES Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
REMOVINGINSTALLING Remove/install
1.1 Take off rear engine compartment panel Model 171

Model 172.4 Gasoline


    Model 171

AR61.20-P-1105V
    Model 172.4 Gasoline

AR61.20-P-1105W
1.2 Remove bottom section of soundproofing Model 172.4 Diesel AR94.30-P-5300W
2.1 Remove exhaust system from flange connection back Model 171

Model 172 with engine 152 271 274 651


    Model 171 with engine 271

AR49.10-P-7000VK
    Model 171 with engine 272

AR49.10-P-7280VA
    Model 171 with engine 113

AR49.10-P-7280VT
    Model 172 with engine 152

AR49.10-P-7100MMI
    Model 172 with engine 274

AR49.10-P-7142MRE
    Model 172 with engine 651

AR49.10-P-7100CWI
2.2 Remove rear exhaust system Model 172 with engine 276 AR49.10-P-7285W
3 Remove SCR catalytic converter Model 172 with engine 651 with code U77 (Diesel Emission control BLUETEC (SCR)) AR14.40-P-2006CDA
4 Remove bolts (1L, 1R) from left and right underfloor paneling
5 Unscrew screws (4) and remove cover (3) Model 171.473
6 Remove heat shield (2)
7 Detach Front stiffening bridge (40V) TORQUE SPECIFICATION Collar bolt, Front reinforcement brace to frame floor *BA61.10-P-1007-01A
8 Detach rear stiffening bridge (40H) TORQUE SPECIFICATION Collar bolt, rear reinforcement bridge to frame floor *BA61.10-P-1008-01A
9 Mark propeller shaft (20) IMPORTANT Apply colored markings to denote the propeller shaft position relative to the transmission, rear-axle differential and the propeller shaft center support bearing (7) so that the factory installation position can be restored when installing.
10 Undo bolts on propeller shaft center support bearing (7) by several turns, but do not remove completely INSTALLATION IMPORTANT : Tighten bolts on propeller shaft center support bearing (7). While doing so, note the installation markings for the propeller shaft center support bearing (7).

TORQUE SPECIFICATION Model 172 Bolt, propeller shaft center support bearing to frame floor assembly

*BA41.40-P-1001-01F
    TORQUE SPECIFICATION Model 171 Bolt, propeller shaft center support bearing to frame floor assembly *BA41.40-P-1001-01A
11 Detach Front flexible coupling (20V) from transmission IMPORTANT The Front flexible coupling (20V) remains on the drive shaft (20).

INSTALLATION IMPORTANT : Note markings for installation position on Front flexible coupling (20V).

TORQUE SPECIFICATION Model 172 Propeller shaft at flexible coupling or flexible coupling to transmission

*BA41.10-P-1001-01I
    TORQUE SPECIFICATION Model 171 Self-locking nut, flexible coupling to transmission or Front propeller shaft
If pilot bushings in Front flexible coupling (20V) are seized

Release pilot bushing from flex disks.
*BA41.10-P-1001-01A
      AR41.10-P-0050-09V
REFER TO SHOP-MADE TOOLS   Drift for releasing the fitting sleeves in the flexible couplings WF58.50-P-4110-01A
12 Detach rear flexible coupling (20H) from rear axle differential IMPORTANT The rear flexible coupling (20H) remains on the drive shaft (20).

INSTALLATION IMPORTANT : Note the installation position markings on rear flexible coupling (20H).


    TORQUE SPECIFICATION Model 172 Propeller shaft at flexible coupling or flexible coupling to rear axle differential

*BA41.10-P-1002-01I
    TORQUE SPECIFICATION Model 171 Self-locking nut, flexible coupling to rear propeller shaft or rear axle differential
If pilot bushings in rear flexible coupling (20H) are seized

Release pilot bushing from flex disks.
*BA41.10-P-1002-01A
      AR41.10-P-0050-09V
REFER TO SHOP-MADE TOOLS   Drift for releasing the fitting sleeves in the flexible couplings WF58.50-P-4110-01A
13 Remove bolts from propeller shaft center support bearing (7) and remove drive shaft (20) downwards IMPORTANT Secure propeller shaft (20) against falling.
    INSTALLATION IMPORTANT : Partially screw in bolts for propeller shaft center support bearing (7), do not tighten.
INSPECT Check
14 Check propeller shaft intermediate bearing (7) for wear and damage If worn or damaged

Replace propeller shaft intermediate bearing (7).
AR41.10-P-0100V
15 Check Front and rear pilot bushing for sealing lip wear and damage If worn or damaged

Replace pilot bushing.

    Model 172 AR41.10-P-0200CW
    Model 171 AR41.10-P-0200V
16 Fill cavities in Front and rear pilot bushing with multipurpose grease When reusing pilot bushings.
REFER TO CAPACITIES & SPECIFICATIONS Multipurpose grease (NLGI Class 2) BB00.40-P-0267-00A
17 Check Front flexible coupling (20V) and rear flexible coupling (20H) of drive shaft (20) for wear, and replace, if necessary   AP41.10-P-4152V
REFER TO MAINTENANCE
18 Install in the reverse order
PROPELLER SHAFT

Number Designation     Model 171
BA41.10-P-1001-01A Self-locking nut, flexible coupling to transmission or Front propeller shaft M10 Nm -
    M12 Nm 68
PROPELLER SHAFT

Number Designation       Model 172
BA41.10-P-1001-01I Propeller shaft at flexible coupling or flexible coupling to transmission Self-locking nut   Nm 68
    Direct threaded connection Stage 1 Nm 60
      Stage 2 ∠° 90
PROPELLER SHAFT

Number Designation     Model 171
BA41.10-P-1002-01A Self-locking nut, flexible coupling to rear propeller shaft or rear axle differential M10 Nm -
    M12 Nm 68
PROPELLER SHAFT

Number Designation       Model 172
BA41.10-P-1002-01I Propeller shaft at flexible coupling or flexible coupling to rear axle differential Self-locking nut   Nm 68
    Direct threaded connection Stage 1 Nm 60
      Stage 2 ∠° 90
PROPELLER SHAFT INTERMEDIATE BEARING

Number Designation     Model 171
BA41.40-P-1001-01A Bolt, propeller shaft center support bearing to frame floor assembly Self-tapping screw Nm 25
    Bolt with washer Nm 30
    Bolt with collar and self-centering tip Nm -
PROPELLER SHAFT INTERMEDIATE BEARING

Number Designation     Model 172
BA41.40-P-1001-01F Bolt, propeller shaft center support bearing to frame floor assembly Self-tapping screw Nm 23
FRAME FLOOR ASSEMBLY

Number Designation   Model 171 Model 172
BA61.10-P-1007-01A Collar bolt, Front reinforcement brace to frame floor Nm 23 20
FRAME FLOOR ASSEMBLY

Number Designation   Model 171 Model 172
BA61.10-P-1008-01A Collar bolt, rear reinforcement bridge to frame floor Nm 23 20
