Remove/Install Rear Exhaust System - AR49.10-P-7285W
Engine 276 in model 172
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove | |||
| 1 | Remove the left and right underfloor paneling | AR61.30-P-1001W | |

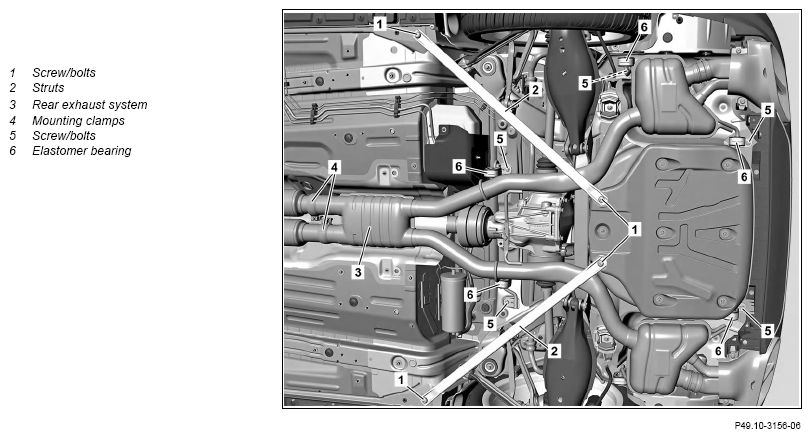

| 2 | Remove screws/bolts (1) and remove struts (2) | ||
| 3 | Have the rear exhaust system (3) supported by an assistant | ||
| 4 | Remove mounting clamps (4) | ||
| 5 | Remove screw/bolt/bolts (5) | ||
| 6 | Remove rear exhaust system (3) with the aid of an assistant | ||
| Clean | |||
| 7 | Remove combustion and corrosion residue at separating points | ||
| Check | |||
| 8 | Check elastomer bearing (6) for damage; replace if necessary | ||
| Install | |||
| 9 | Replace seal on rear exhaust system (3) | ||
| 10 | Position rear exhaust system (3) on left and right CAT with the aid of an assistant and support | ||
| 11 | Position bracket on undercarriage and screw in screw/bolts (5) | *BA49.10-P-1012-01AI | |
| 12 | Mount mounting clamps (4) | *BA49.10-P-1005-01AI | |
| 13 | Position struts (2) on undercarriage and screw in screw/bolts (1) | *BA61.10-P-1005-01A | |
| Check | |||
| 14 | Check installation position and unobstructed movement of all components of the exhaust system | ||
| 15 | Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Perform an engine test run and check exhaust system for leak tightness |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
| 16 | Install left and right underfloor paneling | AR61.30-P-1001W |
EXHAUST SYSTEM
| Number | Designation | Engine 276 in model 172 | |
|---|---|---|---|
| BA49.10-P-1005-01AI | Bolt, clamp to center muffler/NOx storage catalytic converter | Nm | 35 |
EXHAUST SYSTEM
| Number | Designation | Engine 276 in model 172 | |
|---|---|---|---|
| BA49.10-P-1012-01AI | Bolt, exhaust rubber mount bracket to underfloor/rear axle carrier | Nm | 20 |
FRAME FLOOR ASSEMBLY
| Number | Designation | Model 172 | |
|---|---|---|---|
| BA61.10-P-1005-01A | Self-locking bolt, rear diagonal strut to frame floor | Nm | 60 |
