Replace Centering Sleeve - AR41.10-P-0200CW

Model 172, 204, 207, 212, 218, 231

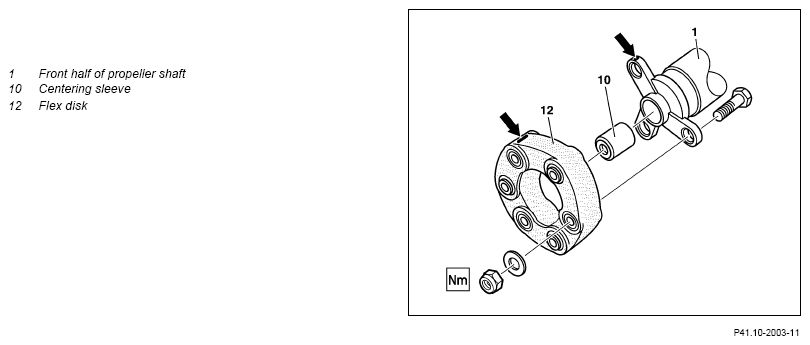

Shown on Front half of propeller shaft

G13842190Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove propeller shaft Model 172 AR41.10-P-0050V
    Model 204, 207 AR41.10-P-0050CW
    Model 212, 218 AR41.10-P-0050EW
    Model 231 AR41.10-P-0050RK
2 Separate propeller shaft at the slide connection INSTALLATION IMPORTANT : Coat splined profile with long-life grease and connect Front half of propeller shaft (1) and rear half of propeller shaft. AR41.10-P-0050-05TX
    Long-life grease *BR00.45-Z-1001-06A
INSPECT Check
3 Check centering sleeve (10) in Front half of propeller shaft (1) and rear half of propeller shaft If the sealing lip in the centering sleeve (10) is worn or damaged, the centering sleeve (10) must be replaced.
↓
Remove centering sleeve (10)
    Removal of centering sleeve
↓
Press in centering sleeve (10).		 AR41.10-P-0200-02TX
    Press in guide sleeve Model 172 AR41.10-P-0200-03W
    Press in guide sleeve
Model 204, 207, 212, 218, 231		 AR41.10-P-0200-03TX
    MODEL 172 Press-in dimension "a" from face end of centering sleeve to joint flange *BE41.10-P-1001-02E
    MODEL 204, 207, 212, 218 Press-in dimension "a" from face end of centering sleeve to joint flange *BE41.10-P-1001-02M
    MODEL 231 Press-in dimension "a" from face end of pilot bushing to joint flange *BE41.10-P-1001-04A
4 Fill cavities of both centering sleeves (10) with grease MB multipurpose grease, 400 g *BR00.45-Z-1017-06A
5 Install in the reverse order
CHECK VALUES FOR PROPELLER SHAFT CENTERING SLEEVE

Number Designation     Model 172.447/448 Model 172.403/457
BE41.10-P-1001-02E Press-in dimension "a" from face end of centering sleeve to joint flange Front propeller shaft mm 23, 3 24, 8
    Rear propeller shaft mm 26, 8 28, 3
    See   - -
CHECK VALUES FOR PROPELLER SHAFT CENTERING SLEEVE

Number Designation     Model 172.475
BE41.10-P-1001-02E Press-in dimension "a" from face end of centering sleeve to joint flange Front propeller shaft mm 22, 4
    Rear propeller shaft mm 25, 9
    See
CHECK VALUES FOR PROPELLER SHAFT CENTERING SLEEVE

Number Designation     Model 204.001/201 Model 204.000/002/200/20 2
BE41.10-P-1001-02M Press-in dimension "a" from face end of centering sleeve to joint flange Front propeller shaft mm 24, 8 24, 8
    Rear propeller shaft mm 36, 2 36, 3
CHECK VALUES FOR PROPELLER SHAFT CENTERING SLEEVE

Number Designation     Model 204.003 with autom. transmission Model 204.006/007/041/044/045/046/048/049/052/054/081/082/085/087/089/092/207/241/245/246/248/249/252/254/282/289/292/981/982/983/984/987/992
BE41.10-P-1001-02M Press-in dimension "a" from face end of centering sleeve to joint flange Front propeller shaft mm 24, 8 23, 3
    Rear propeller shaft mm 36, 2 26, 8
CHECK VALUES FOR PROPELLER SHAFT CENTERING SLEEVE

Number Designation     Model 204.008/047/056/065/208/247/256/901/902/956 Model 204.022/025/222/22 5
BE41.10-P-1001-02M Press-in dimension "a" from face end of centering sleeve to joint flange Front propeller shaft mm 24, 8 25, 3
    Rear propeller shaft mm 28, 3 28, 8
CHECK VALUES FOR PROPELLER SHAFT CENTERING SLEEVE

Number Designation     Model 204.077/277 Model 204.003 with manual transmission Model 204.203
BE41.10-P-1001-02M Press-in dimension "a" from face end of centering sleeve to joint flange Front propeller shaft mm 28, 8 25, 3
    Rear propeller shaft mm 28, 8 36, 2
CHECK VALUES FOR PROPELLER SHAFT CENTERING SLEEVE

Number Designation     Model 207.302/402 Model 207.303/403
BE41.10-P-1001-02M Press-in dimension "a" from face end of centering sleeve to joint flange Front propeller shaft mm 24, 8 25, 3
    Rear propeller shaft mm 36, 3 36, 2
CHECK VALUES FOR PROPELLER SHAFT CENTERING SLEEVE

Number Designation     Model 207.322/372/422/472 Model 207.347/356/357/44 7/456/457
BE41.10-P-1001-02M Press-in dimension "a" from face end of centering sleeve to joint flange Front propeller shaft mm 25, 3 24, 8
    Rear propeller shaft mm 28, 8 28, 3
CHECK VALUES FOR PROPELLER SHAFT CENTERING SLEEVE

Number Designation     Model 207.348/448 Model 212.002/005/202/20 5
BE41.10-P-1001-02M Press-in dimension "a" from face end of centering sleeve to joint flange Front propeller shaft mm 23, 3 24, 8
    Rear propeller shaft mm 26, 8 36, 3
CHECK VALUES FOR PROPELLER SHAFT CENTERING SLEEVE

Number Designation     Model 212.003/020/074/077/203/220/274/277
Model 212.024/025/224/225 with autom. transmission		 Model 212.047/093/247/293
BE41.10-P-1001-02M Press-in dimension "a" from face end of centering sleeve to joint flange Front propeller shaft mm 25, 3 24, 8
    Rear propeller shaft mm 36, 2 28, 3
CHECK VALUES FOR PROPELLER SHAFT CENTERING SLEEVE

Number Designation     Model 212.041/048/054/082/087/089/090/147/148/248/254/282/287/288/289 Model 212.053/056/057/25 6/257
BE41.10-P-1001-02M Press-in dimension "a" from face end of centering sleeve to joint flange Front propeller shaft mm 23, 3 36, 3
    Rear propeller shaft mm 26, 8 28, 3
CHECK VALUES FOR PROPELLER SHAFT CENTERING SLEEVE

Number Designation     Model 212.023/072/223/272 Model 212.024/025/224/225 with manual transmission Model 212.154
BE41.10-P-1001-02M Press-in dimension "a" from face end of centering sleeve to joint flange Front propeller shaft mm 25, 3 34, 8
    Rear propeller shaft mm 28, 8 26, 8
CHECK VALUES FOR PROPELLER SHAFT CENTERING SLEEVE

Number Designation     Model 218.303/323/373 Model 218.359 except code 460 (Canada version) except code 494 (US version)
BE41.10-P-1001-02M Press-in dimension "a" from face end of centering sleeve to joint flange Front propeller shaft mm 25, 3 36, 3
    Rear propeller shaft mm 28, 8 28, 3
CHECK VALUES FOR PROPELLER SHAFT CENTERING SLEEVE

Number Designation     Model 218.359 with code 460 (Canada version) with code 494 (US version) Model 218.391 Model 218.374
BE41.10-P-1001-02M Press-in dimension "a" from face end of centering sleeve to joint flange Front propeller shaft mm 24, 8 25, 3
    Rear propeller shaft mm 28, 3 36, 2
CHECK VALUES FOR PROPELLER SHAFT PILOT BUSHING

Number Designation     Model 231.457 Model 231.473/479
BE41.10-P-1001-04A Press-in dimension "a" from face end of pilot bushing to joint flange Front propeller shaft mm 24, 8 25, 3
    Rear propeller shaft mm 28, 3 28, 8
CHECK VALUES FOR PROPELLER SHAFT PILOT BUSHING

Number Designation     Model 231.474
BE41.10-P-1001-04A Press-in dimension "a" from face end of pilot bushing to joint flange Front propeller shaft mm 25, 3
    Rear propeller shaft mm 36, 2
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1001-06A Long-life grease A 000 989 63 51 11
BR00.45-Z-1017-06A MB multipurpose grease, 400 g A 001 989 34 51 11
