Check Propeller Shaft Flex Disks For Signs Of Damage And Deformation - AP41.10-P-4152V

MODEL 171, 172

Courtesy of MERCEDES-BENZ USA

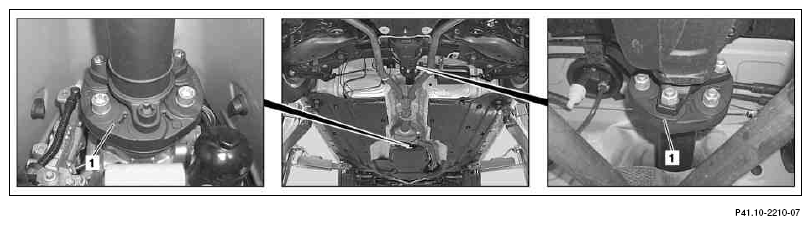

Model 171 shown

	Checking
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle with vehicle lift		AR00.60-P-1000V
2	Check flexible couplings (1)	Visual inspection on crack formation, wear, damage and deformation, if necessary, replace flexible couplings (1) subject to separate repair order.	AP41.10-P-4152-01V
3	Lower vehicle		AR00.60-P-1000V
