Replace Complete Rear Fender - Ar63.50-P-1400V

Model 171, 172

MODIFICATION NOTES

02.05.2011 Value changed: Gap dimension, dimension "T"   BE60.00-P-1005-01Y

Shown on model 171

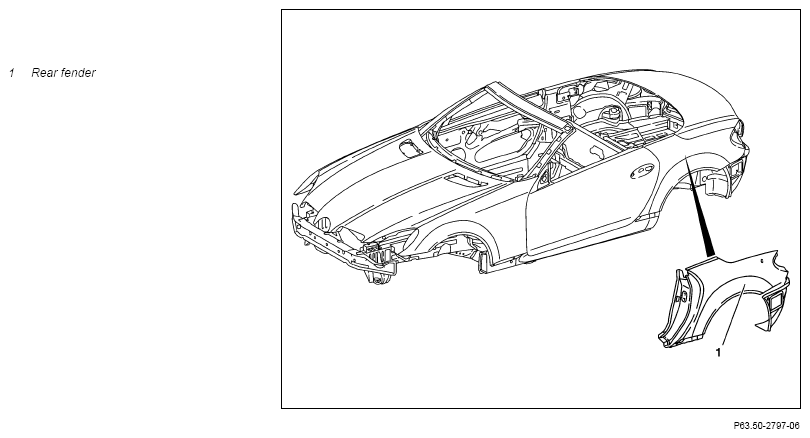

Fig 1: Quarter Panel Component Location (Model 171, 172)
G13842476Courtesy of MERCEDES-BENZ USA
REMOVING Remove
  The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases Use insulating mats. Wear protective clothing, safety glasses and a protective mask.
Remove highly inflammable materials from the hazard area. Use air extraction system.
See AS00.00-Z-0007-01A .
  Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. See AS00.00-Z-0010-01A .
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
See AS00.00-Z-0017-01A .
  Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking.
Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
See AS47.00-Z-0001-01A .
  General information on body repair Model 171, 172 See AH60.00-N-0001-01A .
  Measures for preventing damage to components when performing electric welding and soldering work   See AH60.00-P-0001-02A .
  Pretreatment of bonding surfaces   See AH60.00-P-0008-01SX .
1 Remove all detachable parts in area to be repaired
2 Cover all detachable parts remaining in vehicle with fire-resistant welding protection blanket IMPORTANT When replacing right rear fender (1), the tank lock must be installed and the filler neck must be covered by a welding protection blanket (fire-resistant).
SPECIAL TOOL Protective cover
See Fig 3.
3 Separate rear fender (1)   See AR63.50-P-1400-02V .
    Zinc dust paint suitable for spot welding See *BR00.45-Z-1001-07A .
4 Prepare new rear fender (1)   See AR63.50-P-1400-03V .
    Zinc dust paint suitable for spot welding See *BR00.45-Z-1001-07A .
INSTALLING Install
5 Install rear fender (1)   See AR63.50-P-1400-04V .
  General information on riveting   See AH60.00-P-0003-01N .
    Model 171Gap dimension See *BE60.00-P-1002-01L .
    Model 171Gap dimension See *BE60.00-P-1003-01L .
    Model 171Gap dimension See *BE60.00-P-1004-01L .
    Model 171 Gap dimension See *BE60.00-P-1005-01L .
    Model 172 Gap dimension See *BE60.00-P-1002-01Y .
    Model 172 Gap dimension See *BE60.00-P-1003-01Y .
    Model 172 Gap dimension See *BE60.00-P-1004-01Y .
    Model 172 Gap dimension See *BE60.00-P-1005-01Y .
    Adhesive kit, body, 2-component adhesive See *BR00.45-Z-1092-02A .
    Blind rivet 6.5X 12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) See *BR00.45-Z-1012-13A .
    SPECIAL TOOL Spacers See Fig 4.
    SPECIAL TOOL Bending pliers See Fig 2.
    SPECIAL TOOL Feeler gauge See Fig 5.
6 Adjust gap dimensions on hoods, doors and lids   See AR60.00-P-0700-01V .
    Model 171 Gap dimension See *BE60.00-P-1002-01L .
    Model 171 Gap dimension See *BE60.00-P-1003-01L .
    Model 171 Gap dimension See *BE60.00-P-1004-01L .
    Model 171 Gap dimension See*BE60.00-P-1005-01L .
    Model 172 Gap dimension See *BE60.00-P-1002-01Y .
    Model 172 Gap dimension See *BE60.00-P-1003-01Y .
    Model 172 Gap dimension See *BE60.00-P-1004-01Y .
    Model 172 Gap dimension See *BE60.00-P-1005-01Y .
    SPECIAL TOOL Feeler gauge See Fig 5.
7 Clean weld joints and metal flanges with wire brush
8 Remove welding protection blankets and protective cover
9 Clean repair area
10 Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors.
Prime repair area using primer filler
No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated.
IMPORTANT Use only primer filler approved by Daimler AG.
Refer to:
AS98.00-Z-0002-01A .
11 Seal seam following repairs Model 171 AR97.10-P-4000V
    Model 172 See AR97.10-P-4000W .
12 Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors.
Paint repair areas and adjacent surfaces
No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated.
IMPORTANT Use only paints approved by Daimler AG. Refer to:
See AS98.00-Z-0002-01A .
13 Add cavity preserving agent Model 171 AR97.20-P-1500V
    Model 172 See AR97.20-P-1500W .
14 Install all detachable body components in area to be repaired
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 171
BE60.00-P-1002-01L Gap dimension Front door to fender Dimension "H" mm 3, 0 (+0, 8)
    Fender to A-pillar Dimension "Q" mm 2, 0 (+1, 5/-0, 5)
    Front door to rear fender Dimension "P" mm 3, 0 (+0, 8)
      Picture   AR60.00-P-0700-01V .
Number Designation Model 172
BE60.00-P-1002-01Y Gap dimension Front door to fender Dimension "H" mm 4, 5 (+1/-0, 5)
    Fender to A-pillar Dimension "Q" mm 3, 5 (±1, 5)
    Front door to rear fender Dimension "P" mm 4, 0 (±1)
      Picture See AR60.00-P-0700-01V .
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 171
BE60.00-P-1003-01L Gap dimension Trunk lid to rear fender Dimension "F" mm 3, 5 (+1, 5)
    Trunk lid to taillamp Dimension "M" mm 4, 0 (+1, 6/-0, 5)
    Trunk lid to bumper Dimension "V" mm 5, 0 (+1, 5/-1, 0)
    Rear fender to taillamp Dimension "U" mm 2, 5 (±0, 5)
    Trunk lid tip to rear fender Dimension "E" mm 5, 0 (+1, 5)
      Picture See AR60.00-P-0700-01V .
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 172
BE60.00-P-1003-01Y Gap dimension Trunk lid to rear fender Dimension "F" mm 4, 5 (±1)
    Trunk lid to taillamp Dimension "M" mm 4, 5 (+1, 5/-0, 5)
    Trunk lid to bumper Dimension "V" mm 6, 0 (+1, 5)
    Rear fender to taillamp Dimension "U" mm 1, 5 (±1)
    Trunk lid tip to rear fender Dimension "E" mm 6, 5 (+1/-0, 5)
      Picture   AR60.00-P-0700-01V .
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 171
BE60.00-P-1004-01L Gap dimension Fuel filler flap Dimension "K" mm 3, 0 (±0, 5)
      Picture   AR60.00-P-0700-01V .
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 172
BE60.00-P-1004-01Y Gap dimension Fuel filler flap Dimension "K" mm 3, 0 (+1, 5/-0, 5)
      Picture   AR60.00-P-0700-01V .
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 171
BE60.00-P-1005-01L Gap dimension Roof to windshield frame Dimension "S" mm 5, 0 (+1, 0)
    Roof to rear window frame Dimension "T" mm 5, 0 (±0, 5)
      Picture   See AR60.00-P-0700-01V .
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 172
BE60.00-P-1005-01Y Gap dimension Roof to windshield frame Dimension "S" mm 7, 0 (+1, 0)
    Roof to rear window frame Dimension "T" mm 5, 0 (±1, 0)
      Picture See AR60.00-P-0700-01V .
Fig 2: Bending Pliers (202 589 00 37 00)
G11129035Courtesy of MERCEDES-BENZ USA
Fig 3: Protective Cover (129 589 00 98 00)
G13842478Courtesy of MERCEDES-BENZ USA
Fig 4: Spacer (000 589 87 63 00)
G13842479Courtesy of MERCEDES-BENZ USA
Fig 5: Feeler Gauge (129 589 03 21 00)
G13659505Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
BR00.45-Z-1012-13A Blind rivet 6.5X 12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) A 004 990 16 97
BR00.45-Z-1092-02A Adhesive kit, body, 2-component adhesive A 012 989 17 71
