Prepare New Rear Fender Part - Ar63.50-P-1400-03V

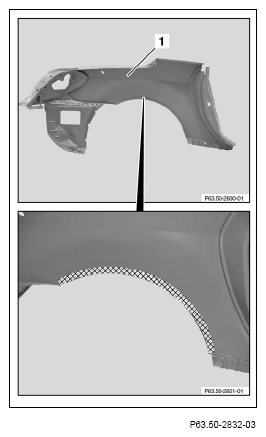

  1. Grind mating surfaces on rear fender (1) down to bare metal in cross-hatched area.
    G13842468Courtesy of MERCEDES-BENZ USA
    G13842469Courtesy of MERCEDES-BENZ USA

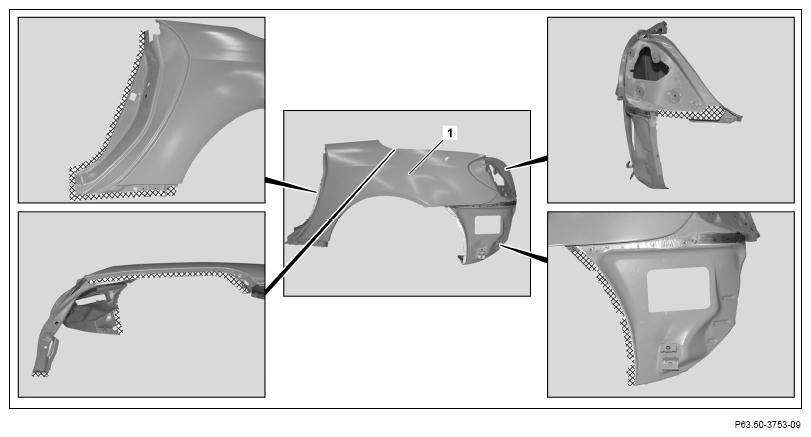

  2. Grind mating surfaces on rear fender (1) down to bare metal in the cross-hatched area.

    IMPORTANT Grind spot weld flanges down to bare metal on both sides.

  3. Coat insides of spot weld flanges with zinc dust paint.
