Cavity Preservation Following Repair Work - Ar97.20-P-1500W

MODEL 172

Courtesy of MERCEDES-BENZ USA

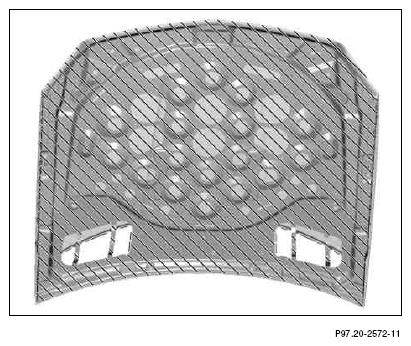

Engine hood

Courtesy of MERCEDES-BENZ USA

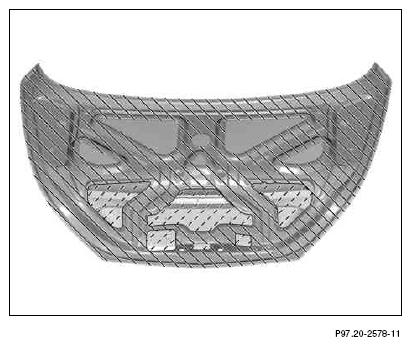

Liftgate

Courtesy of MERCEDES-BENZ USA

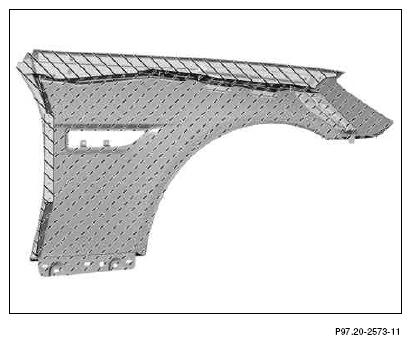

Front fender

Courtesy of MERCEDES-BENZ USA

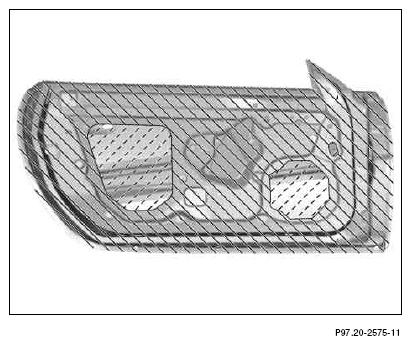

Door

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

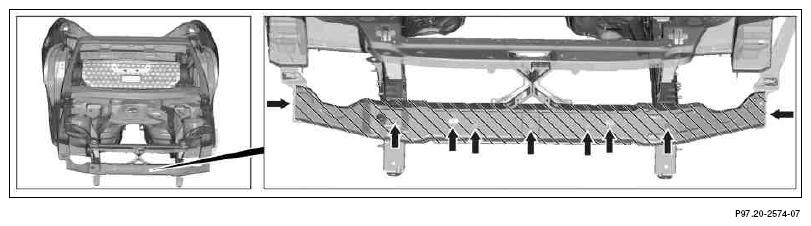

Front crossmember

Front longitudinal member

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

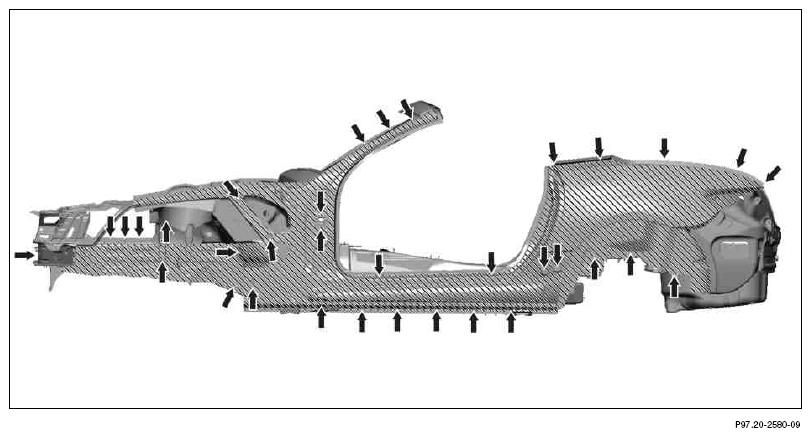

Front longitudinal member, A-pillar, side wall paneling and side longitudinal member

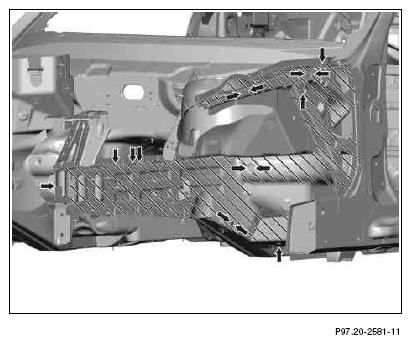

Inner firewall

Courtesy of MERCEDES-BENZ USA

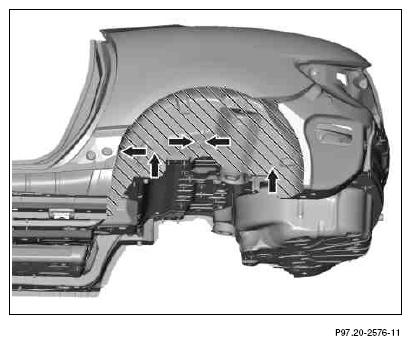

Rear longitudinal member

Courtesy of MERCEDES-BENZ USA

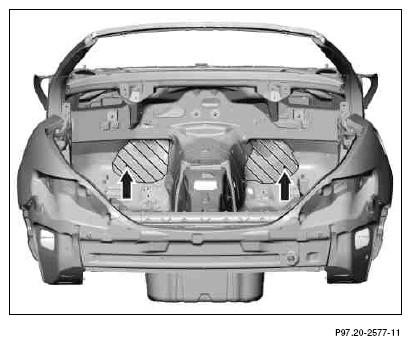

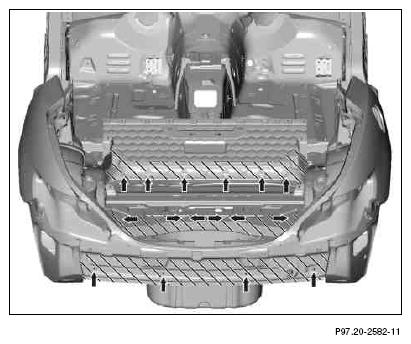

Rear end

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

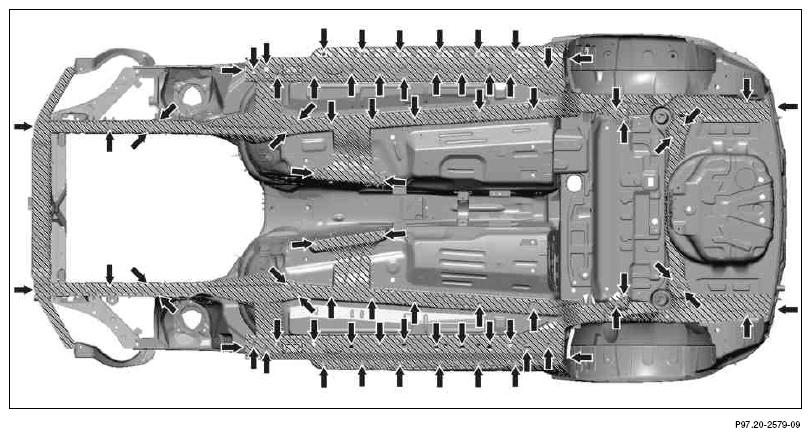

Underfloor

Picture item, etc.	Work instructions
	Risk of explosion  and poisoning  caused by solvent vapors and gasses. Risk of injury  to skin and eyes when handling anticorrosion agents.	Never spray anticorrosion agents on flames or glowing hot objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection.	AS97.00-Z-0001-01A .
	Notes on cavity preservation		AH97.20-P-0001-01B .
	Cavity preservation, solvent-free (1 l container)		*BR00.45-Z-1003-05A .
A	Cavity preservation in area of crimp	Apply from inside with hook nozzle Apply cavity preservation with spraying hose and nozzle (spraying angle 360°) as far as possible into cavities.
B	Inner surface, cavities and gaps	Uniformly moisten cavity preservation.

Number	Designation	Order number
BR00.45-Z-1003-05A	Cavity sealant, solvent-free (1 l container)	A 000 986 72 70 05
