Remove/Install Automatic Transmission With Torque Converter - AR27.10-P-0500MNN

Transmission 725.0 in model 217, 222 with engine 176 with code M005 (Vehicles with 4MATIC/all-wheel drive)

MODIFICATION NOTES

24.06.2022 Special tool 001 589 65 09 00 changed to 177 589 00 03 00. Operation step 22, 33.
15.06.2022 Only turn engine at the center Bolt of the crankshaft in the direction of engine rotation using the specified SPECIAL TOOL box wrench. Otherwise, damage to the engine or even failure of the engine may occur. AR27.20-P-0001-01EWM

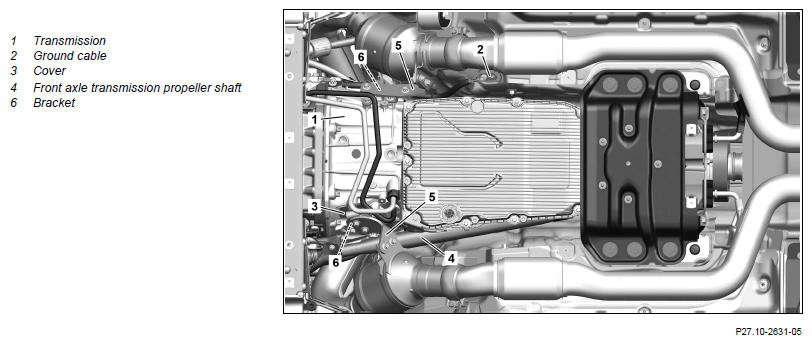

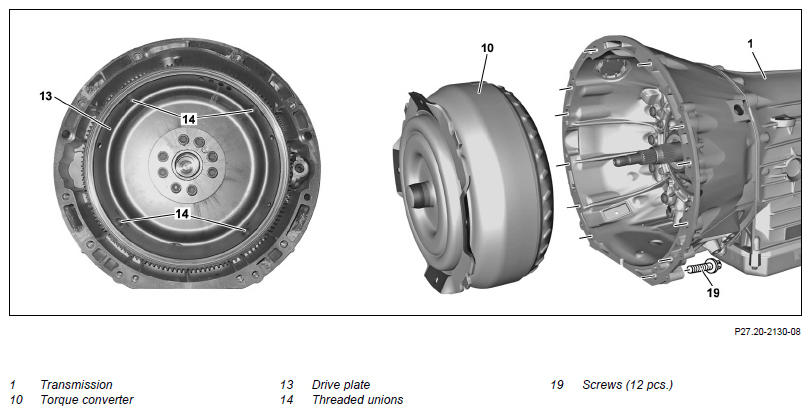

Fig 1: Automatic Transmission Components Location - Transmission 725.0 In Model 222 With Engine 176 With Code M005
G15362693Courtesy of MERCEDES-BENZ USA
G15362694Courtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
WARNING Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.
AS00.40-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting Always wear protective gloves when working AS00.00-Z-0017-01A
  body parts on sharp vehicle parts on or near sharp and non-deburred vehicle parts.
Deburr repair panels.

Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
Notice  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on self-locking nuts and Bolts   AH00.00-P-0001-01KOA
  Note on calculation of tightening torque when using insertion or socket tools with various   AH00.00-P-0015-01CW
  effective lengths
  Notes on automatic transmission   AH27.19-P-0001-01NKB
REMOVING Remove
1 Shift the transmission (1) into neutral position.
2 Release parking brake.
3 Disconnect the ground line for the on-board electrical system battery (G1).   AR00.60-P-0100CW
4 Secure vehicle on vehicle lift.   AR00.60-P-0100CW
5 Remove bottom engine compartment paneling.   AR61.20-P-1105LF
6 Loosen catalytic converters. Left catalytic converter AR49.20-P-0101MNL
    Right catalytic converter AR49.20-P-0102MNL
7 Release starter wiring harness from starter wiring harness holder at top.
8 Remove upper screw of starter wiring harness holder.
9 Remove oil lines.   AR27.55-P-0600MNK
10 Raise and secure rack-and-pinion steering.   AR46.20-P-0600LF
11 Remove lower screw of starter wiring harness holder.
12 Remove alternator wiring harness holder from transmission (1).
13 Remove rear propeller shaft.   AR41.10-P-0050LF
14 Remove right holder (6).
15 Disconnect ground line (2) of transmission (1).
16 Unhook ground line (2) from transmission (1).
17 Remove heat shield from transmission (1).
18 Release and disconnect electrical connector o transmission (1).
19 Remove rear engine carrier from underbody.   AR22.10-P-4360OIA
20 Remove front axle differential propeller shaft (4).   AR41.10-P-0070LFX
21 Remove cover (3).
22 Remove torque converter (10) from drive plate (13).   AR27.20-P-0001-01EWM
    NOTES
Only turn engine at the center Bolt of the crankshaft in the direction of engine rotation using the specified box wrench.
Otherwise, damage to the engine or even failure of the engine may occur.
NOTES
Do not use an impact wrench or compressed air tool to remove the Bolts.
Otherwise, the threaded unions (14) in the drive plate (13) will be damaged.

    SPECIAL TOOL Ring wrench Fig 4
    SPECIAL TOOL Long wedge Fig 2
23 Remove starter from transmission (1), place to one side with connected lines and fasten.   AR15.30-P-7100MNL
    NOTES
Secure starter against falling down.
Otherwise damage will occur.

24 Remove screws (19). SPECIAL TOOL Set of flexible head wrenches Fig 3
25 Remove transmission (1) with torque converter (10). NOTES
Secure the torque converter (10) to prevent it from dropping down.
Otherwise damage will occur.

26 Remove torque converter (10). If necessary. AR27.20-P-0050EWM
27 Remove corrosion from crankshaft.   AR03.20-P-1000-01A
    Multi-purpose paste *BR00.45-Z-1009-06A
    Assembly cleaner *BR00.45-Z-1028-04A
28 Check threaded unions (14) in drive plate (13). If damaged or loose threaded unions (14) are present:

Install  a new clutch plate (13).

      AR03.30-P-8003MNL
INSTALLING Install
29 Insert torque converter (10). After removing the torque converter (10).
      AR27.20-P-0050EWM
30 Install  transmission (1) with torque converter (10). IMPORTANT While doing so, align the bores of the torque converter (10) with the threaded unions (14) in the drive plate (13).
31 Tighten screws (19). TORQUE SPECIFICATION Screw/Bolt, transmission to engine *BA27.10-P-1001-04H
    SPECIAL TOOL Set of flexible head wrenches Fig 3
32 Release mounting of starter and mount starter onto transmission (1).   AR15.30-P-7100MNL
33 Mount torque converter (10) onto drive plate (13).   AR27.20-P-0001-01EWM
    NOTES
Only turn engine at the center Bolt of the crankshaft in the direction of engine rotation using the specified box wrench.
Otherwise, damage to the engine or even failure of the engine may occur.
NOTES
Do not use an impact wrench/driver or compressed air tool to screw in the Bolts. Otherwise, the threaded unions (14) in the drive plate (13) will be damaged.

    TORQUE SPECIFICATION Screw, torque converter/rotor to drive plate/star-shaped drive plate *BA27.20-P-1001-01D
    SPECIAL TOOL Ring wrench Fig 4
    SPECIAL TOOL Long wedge Fig 2
34 Install  cover (3).
35 Install  front axle differential propeller shaft (4).   AR41.10-P-0070LFX
36 Install  rear engine carrier at underbody.   AR22.10-P-4360OIA
37 Plug in electrical connector of transmission (1) and lock.
38 Install  heat shield at transmission (1). TORQUE SPECIFICATION Screw/Bolt, heat shield to oil pan *BA27.10-P-1009-04H
39 Hook ground line (2) onto transmission (1).
40 Connect ground line (2) to transmission (1). TORQUE SPECIFICATION Model 222 Bolt/nut, ground line to transmission/underfloor *BA00.19-P-1039-01C
    TORQUE SPECIFICATION Model 217 Bolt/nut, ground line to transmission/underfloor *BA00.19-P-1035-01J
41 Install  right holder (6). TORQUE SPECIFICATION Bolt, exhaust system bracket to transmission *BA49.10-P-1005-02N
42 Install  rear propeller shaft.   AR41.10-P-0050LF
43 Attach alternator wiring harness holder at transmission (1). TORQUE SPECIFICATION M6 *BA00.10-P-1002-01A
44 Install  lower screw of starter wiring harness holder. TORQUE SPECIFICATION M6 *BA00.10-P-1002-01A
45 Release locking clip and lower rack-and-pinion steering.   AR46.20-P-0600LF
46 Install  oil lines.   AR27.55-P-0600MNK
47 Install  upper screw of starter wiring harness holder. TORQUE SPECIFICATION M6 *BA00.10-P-1002-01A
48 Secure starter wiring harness at starter wiring harness holder at top.
49 Attach catalytic converters. Left catalytic converter AR49.20-P-0101MNL
    Right catalytic converter AR49.20-P-0102MNL
50 Connect ground line of on-board electrical system battery (G1).   AR00.60-P-0100CW
51 Check and correct transmission oil level.   AR27.00-P-0270EWN
52 Connect diagnostic system, read out fault memory and clear if necessary.
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
53 Perform transmission adaptation with vehicle diagnosis system. After replacement or repair of transmission (1).
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
54 Reset data on service life of torque converter lockup clutch with the vehicle diagnosis system. After replacement or repair of torque converter (10).
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
WARNING Risk of accident from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
55 Perform engine test run and check transmission (1) for proper operation and leak tightness.
56 Install  lower engine compartment lining.   AR61.20-P-1105LF
57 Disconnect vehicle from vehicle lift.   AR00.60-P-0100CW
HEADLESS SCREWS: BOLTS AND NUTS, COARSE-PITCH THREAD

Number Designation Model all (4xWD, CAR, smart)
BA00.10-P-1002-01A M6 8.8 Galvanized Nm 9
  Phosphated Nm 9
10.9 Galvanized Nm 13
  Phosphated Nm 12
12.9 Galvanized Nm 16
  Phosphated Nm 14
GROUND POINTS

Number Designation Model 217 up to model year 2018 Model 217 as of model year 2018
BA00.19-P-1035-01J Bolt/nut, ground line to transmission/underfloor M8 Nm 20 20
GROUND POINTS

Number Designation Model 222 up to model year 2018 Model 222 as of model year 2018
BA00.19-P-1039-01C Bolt/nut, ground line to transmission/underfloor M8 Nm 20 20
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 725.0/1
BA27.10-P-1001-04H Screw/ Bolt, transmission to engine Nm 39
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 725.0/1
BA27.10-P-1009-04H Screw/ Bolt, heat shield to oil pan Nm 9
TORQUE CONVERTER

Number Designation Transmission 725.0/1
BA27.20-P-1001-01D Screw, torque converter/Angled threaded rotor to drive plate/star-connection shaped drive plate Stage 1 Nm 3
Stage 2 Nm 30
Stage 3 ∠° 90
EXHAUST SYSTEM

Number Designation Model 217, 222 with engine 176
BA49.10-P-1005-02N Bolt, exhaust system bracket to transmission Nm 20
Fig 2: Identifying Long Wedge (115 589 03 59 00)
G11128618Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Set Of Flexible Head Wrenches (001 589 81 09 00)
G12935124Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Ring Wrench (177 589 00 03 00)
G13770118Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1009-06A Multi-purpose paste A 000 989 80 51
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
