Remove/Install Drive Plate - AR03.30-P-8003MNL
Engine 176 in model 217, 222
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Topical note | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove automatic transmission | Engine 176 in model 217, 222 with transmission 725.0 with code M005 (4MATIC) | AR27.10-P-0500MNN |
| Engine 176 in model 217, 222 with transmission 725.0 except code M005 (4MATIC) | AR27.10-P-0500MNL | ||

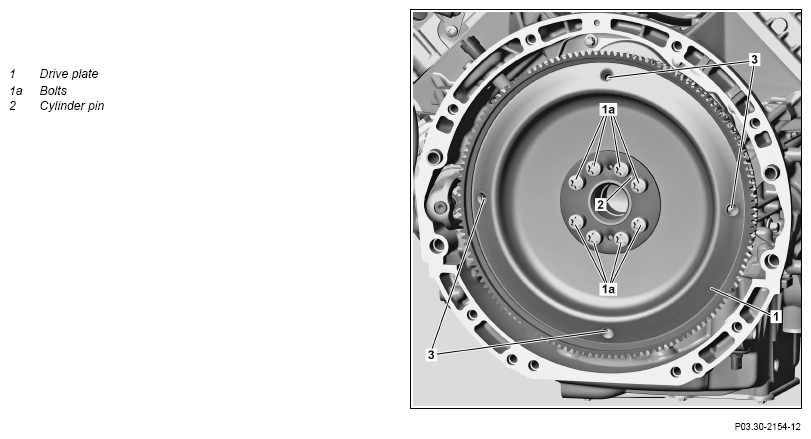

| 2 | Install retaining lock | Fig 2 | |
| 3 | Remove screw/bolts (1a) from drive plate (1) | ||
| *BA03.30-P-1003-01W | |||
| 4 | Remove drive plate (1) from crankshaft flange | ||
| 5 | Check drive plate (1) for damage | When reusing the drive plate (1). If damage is present. ↓ Install new drive plate (1). |
|
| 6 | Install in the reverse order | ||
| 7 | Perform default initialization and then sensor rotor adaptation using the diagnostic system | When replacing the clutch plate (1). | |
| AD00.00-P-2000-04B | |||
| AD00.00-P-2000-04B | |||
ME-SFI [ME] control unit → Adaptations → Learning processes |
FLYWHEEL, VIBRATION DAMPER
| Number | Designation | Engine 176 | ||
|---|---|---|---|---|
| BA03.30-P-1003-01W | Bolt, drive plate to crankshaft | Stage 1 | Nm | 20 |
| Stage 2 | Nm | 45 | ||
| Stage 3 | ∠° | 90 | ||
