Remove/Install Torque Converter - AR27.20-P-0050EWM

Transmission 725.0

G15362743Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.		 AS00.40-Z-0001-01A
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  Notes on automatic transmission   AH27.19-P-0001-01NKB
REMOVINGINSTALLING Remove/install

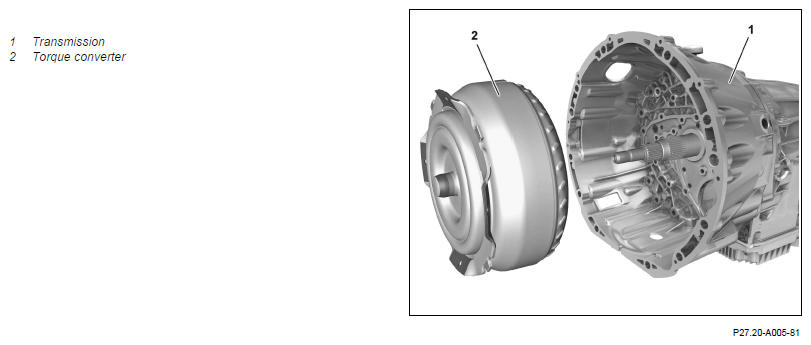

1 Secure removed transmission (1) to assembly stand. Transmission 725.0 (except 725.007/017/037/047) AR27.10-P-0600-01EWM
REFER TO SPECIAL TOOLS 000 588 00 31 00 Assembly stand for cars   WS01.00-Z-3028KOB
    IMPORTANTCommercially available devices/tools
Workshop crane
    SPECIAL TOOL Lifting device Fig 1
    SPECIAL TOOL Support fixture Fig 3
2 Remove torque converter (2).   AR27.20-P-0500-01EWM
    Transmission 725.0 with engine 176
Transmission 725.0 with engine 177
Transmission 725.0 with engine 256
Transmission 725.0 with engine 264
Transmission 725.0 with engine 274
Transmission 725.0 with engine 276
Transmission 725.0 with engine 278
Transmission 725.0 with engine 642
Transmission 725.0 with engine 651
Transmission 725.0 with engine 654
Transmission 725.0 with engine
656 Installation height of torque converter, distance dimension Bolt flange to flange transmission housing		 *BE27.20-P-1001-01F
    Grease, silicone-based, 100 g *BR00.45-Z-1008-06A
    SPECIAL TOOL Assembly device Fig 4
    SPECIAL TOOL Parallel rest Fig 2
3 Install in the reverse order.
CHECK VALUES FOR TORQUE CONVERTER

Number Designation Transmission 725 with engine 176/177 Transmission 725 with engine 256/651/654/656
BE27.20-P-1001-01F Installation height of torque converter, distance dimension Bolt flange to flange transmission housing mm 26, 7 (±2) 21, 2 (±2)
CHECK VALUES FOR TORQUE CONVERTER

Number Designation Transmission 725 with engine 264/274/276/278/64 2
BE27.20-P-1001-01F Installation height of torque converter, distance dimension Bolt flange to flange transmission housing mm 31, 2 (±2)
Fig 1: Identifying Lifting Device (724 589 02 63 00)
G12935480Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Parallel Rest (126 589 04 31 00)
G12935449Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Support Fixture (725 589 00 40 00)
G12935486Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Assembly Device (725 589 01 31 00)
G12935458Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1008-06A Grease, silicone-based, 100 g A 001 989 28 51
