Remove/Install Right Cylinder Head - AR01.30-P-5780MNL

Engine 176 in model 217, 222

MODIFICATION NOTES

25.03.2021

Check relevant sealing surfaces of engine for unevenness, score marks, etc.

Operation step 12.

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on threaded connections with aluminum screws/bolts		AH00.00-P-0006-01RM
	General information on work on gasoline direct injection system		AH07.00-P-2000-01A
	Remove/install
1	Remove right charge-air distributor.	: Only install lower engine compartment lining and upper engine cover after performing a leak test.	AR09.41-P-8685MNL
2	Remove right secondary chain drive timing chain.		AR05.10-P-7614MNL
3	Remove right secondary chain drive tensioning rail.		AR05.10-P-8129MNL
4	Remove right secondary chain drive slide rails		AR05.10-P-8481MNL
5	Remove both camshafts of the right cylinder bank.		AR05.20-P-6994MNL
6	Remove right exhaust manifold.		AR09.40-P-6027MNL

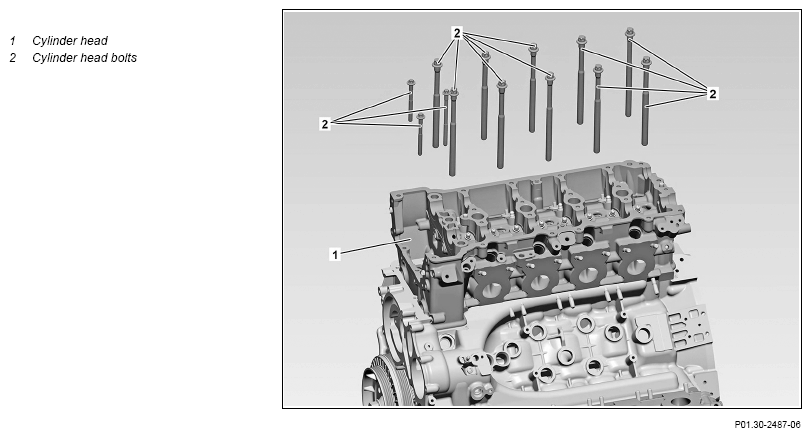

7	Remove center low-pressure line from right cylinder head (1).		AR07.03-P-1121MNL
8	Loosen cylinder head bolts (2) in stages in the reverse order of the tightening procedure and remove.	Tightening specifications for cylinder head bolts	AR01.30-P-5800-07MNA
		Tightening procedure for cylinder head bolts : Observe tightening procedure and tightening specification. : Replace cylinder head bolts (2).	AR01.30-P-5800-01MNA
		Bolt, cylinder head to crankcase	*BA01.30-P-1001-01N
9	Remove right cylinder head (1) from crankcase.
	General information on checking valves, valve seats and valve guides	: Fit a new cylinder head gasket on the crankcase. Pay attention to the pilot bushings for fixing the right cylinder head (1) in place.	AH05.30-P-1000-02SZ
	Clean
10	Cover threaded holes of cylinder head bolts (2) in crankcase with rags and blow out with compressed air and clean off engine oil and coolant.
11	Clean sealing surfaces on right cylinder head (1) and crankcase with a lint-free rag.	Assembly cleaner	*BR00.45-Z-1028-04A
	Check
12	Check sealing surfaces on right cylinder head (1) and on crankcase for cracks and unevenness.	: A possible distortion of right cylinder head (1) in longitudinal or transverse direction is offset during reassembly by tightening cylinder head bolts (2). Check relevant sealing surfaces of engine for unevenness, score marks, etc. If unevenness, score marks, etc. exist: ↓ Replace affected component.
13	Install in the reverse order.
14	Change engine oil and oil filter element.
			AP18.00-P-0101MNL
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
15	Carry out engine test run and check engine for proper operation and leak tightness.
16	Install lower engine compartment lining.		AR61.20-P-1105LF
17	Install upper engine cover.

CYLINDER HEAD

Number	Designation				Engine 176
BA01.30-P-1001-01N	Bolt, cylinder head to crankcase	M7		Nm	15
		M11	Stage 1	Nm	40
			Stage 2	∠°	90
			Stage 3	∠°	90
			Stage 4	∠°	90

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01
