Remove/Install Secondary Chain Drive Timing Chains - AR05.10-P-7614MNL

Engine 176 in model 217, 222

MODIFICATION NOTES

25.09.2020

Check the left timing chain (2)/right timing chain (1) for damage and elongation.

Operation step 8.

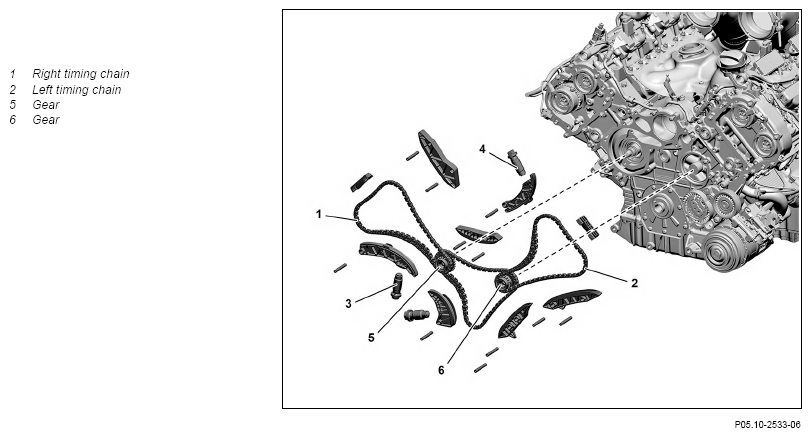

Fig 1: Secondary Chain Drive Timing Chains Components Location - Engine 176 In Model 222

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Topical note	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove camshaft positioners.	Left camshaft positioner	AR05.20-P-7208MNL
		Right camshaft positioner : Only install upper engine cover and lower engine compartment paneling after the performing a leak test.	AR05.20-P-7209MNL
2	Remove coolant pump.		AR20.10-P-1271MNL
3	Remove the crankcase cover from the crankcase.	The crankcase cover is located in front of the gearwheel (6). : Replace O-ring.
		Screw/bolt, firewall cover to crankcase	*BA01.40-P-1003-01ZA
4	Remove left timing chain (2) from gearwheel (6).	: Make sure left timing chain (2) is seated correctly on gear (6). Engine damage can occur otherwise.
5	Remove right timing chain (1) from gearwheel (5).	: Make sure left timing chain (1) is seated correctly on gear (5). Engine damage can occur otherwise.
6	Remove the left timing chain (2).
7	Remove the right timing chain (1).
8	Check the left timing chain (2)/right timing chain (1) for damage and elongation.	If one timing chain is damaged (stretched), all the timing chains must always be replaced. Engine damage can occur otherwise. If there are problems: ↓ Replace the left timing chain (2), right timing chain (1) and primary timing chain.
			AR05.10-P-7613MNL
9	Install in the reverse order.
10	Check oil level of the engine and correct.
			AP18.00-P-1812SKI
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
11	Carry out engine test run and check engine for proper operation and leak tightness.
12	Install lower engine compartment lining.		AR61.20-P-1105LF
13	Install upper engine cover.

CRANKCASE, TIMING CASE COVER, END COVER

Number	Designation		Engine 176
BA01.40-P-1003-01ZA	Screw/bolt, firewall cover to crankcase	Nm	9
