Remove/Install Right Charge Air Distributor - AR09.41-P-8685MNL
Engine 176 in model 217, 222
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove engine with front axle carrier | AR01.10-P-2500MNL | |

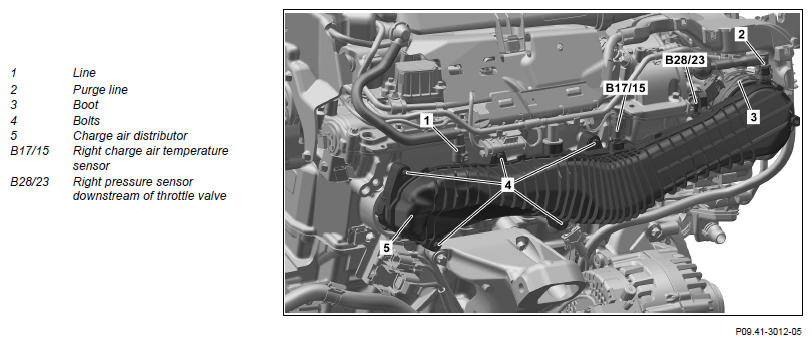

| 2 | Remove line (1) from charge-air distributor (5) | ||
| 3 | Release and disconnect electrical connector o right charge air temperature sensor (B17/15) | ||
| 4 | Remove purge line (2) from charge-air distributor (5) | ||
| 5 | Release and disconnect electrical connector o right pressure sensor downstream of throttle valve (B28/23) | ||
| 6 | Remove screws/bolts (4) | Tightening procedure for charge air distributor | AR09.41-P-8683-01MNL |
| *BA09.41-P-1004-01X | |||
| 7 | Detach clamp of boot (3) at charge-air distributor (5) | *BA09.41-P-1002-01X | |
| 8 | Remove charge-air distributor (5) | ||
| 9 | Remove right pressure sensor downstream of throttle valve (B28/23) | When replacing charge-air distributor (5). | |
| AR09.41-P-1031MNL | |||
| 10 | Remove right charge air temperature sensor (B17/15) | When replacing charge-air distributor (5). | |
| AR09.41-P-0042MNL | |||
| 11 | Remove guides of seals from charge-air distributor (5) | When replacing charge-air distributor (5). | |
| 12 | Install in the reverse order |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.41-P-1002-01X | Bolt, clamp for charge air hose to charge-air distributor | Nm | 6 |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.41-P-1004-01X | Bolt, charge air distributor to cylinder head | Nm | 13 |
