Remove/Install Side Deployment Pressure Sensor - AR91.60-P-0760GQ

MODEL 166

MODEL 292

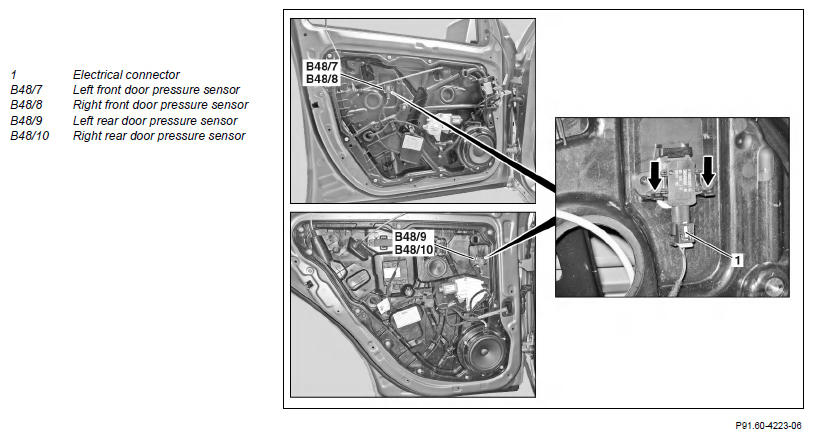

Shown on model 166

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Disconnect battery ground line		AR54.10-P-0003GZ
2.1	Remove door lining from left or right front door	For removing left front door pressure sensor (B48/7) or right front door pressure sensor (B48/8). Remove/install front door lining Model 166 with code Z04 (Light armoring) with code Z05 (B5 armoring on special protection version)	AR72.10-P-1000GQS
		Model 166 except code Z04 (Light armoring) except code Z05 (B5 armoring on special protection version) Model 292	AR72.10-P-1000GQ
2.2	Remove door lining from left or right rear door	For removing left rear door pressure sensor (B48/9) or right rear door pressure sensor (B48/10). Model 166 with code Z04 (Light armoring) Model 166 with code Z05 (B5 armoring on special protection version)	AR72.12-P-1010GQS
		Model 166 except code Z04 (Light armoring) except code Z05 (B5 armoring on special protection version) Model 292	AR72.12-P-1010GQ
3	Disconnect electrical connector (1) from respective pressure sensor
4	Push retaining clips downwards (arrow) and remove the respective pressure sensor
5	Install in the reverse order
