Remove/Install Rear Door Lining - AR72.12-P-1010GQ
MODEL 166 except CODE Z04 (Light armoring) except code Z05 (B5 armoring on special protection version)
MODEL 292
Shown on model 166.004
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove left rear door tweeter (H4/35) or right rear door tweeter (H4/36) | Mounting wedge | Figure |

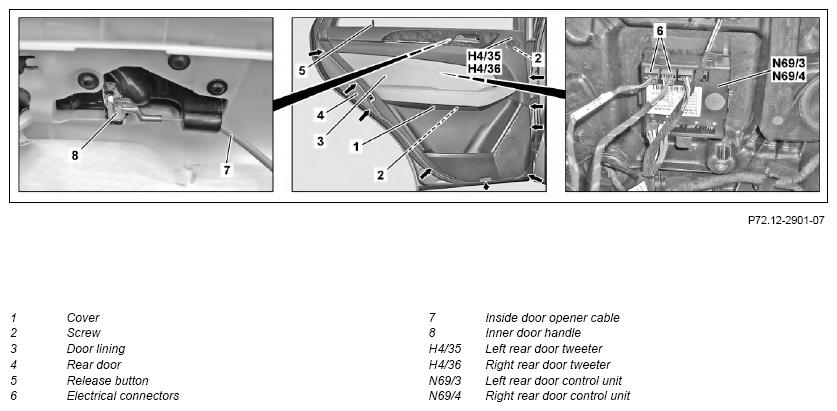

| 3 | Unclip cover (1) | Mounting wedge | Figure |
| 4 | Remove screws (2) | ||
| 5 | Unclip door lining (3) from mounting clips (arrows) on rear door (4) | Otherwise, the retaining tabs on the mounting clips (arrows) can tear out of door liner (3). |
|
| Figure | |||
| 6 | Detach door lining (3) horizontally to side from rear door (4) and guide release knob (5) out of door lining (3) | ||
| 7 | Disconnect electrical connectors (6) from left rear door control unit (N69/3) or right rear door control unit (N69/4) | ||
| 8 | Unhook inside door opener cable (7) on inside door handle (8) | ||
| 9 | Remove door lining (3) | ||
| 10 | Install in the reverse order |
