Remove/Install Front Seat Backrest Frame - AR91.10-P-3331GQ
MODEL 166, 292
Shown with CODE 401 (Seat climate control)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove front seat | AR91.10-P-1000GQ | |

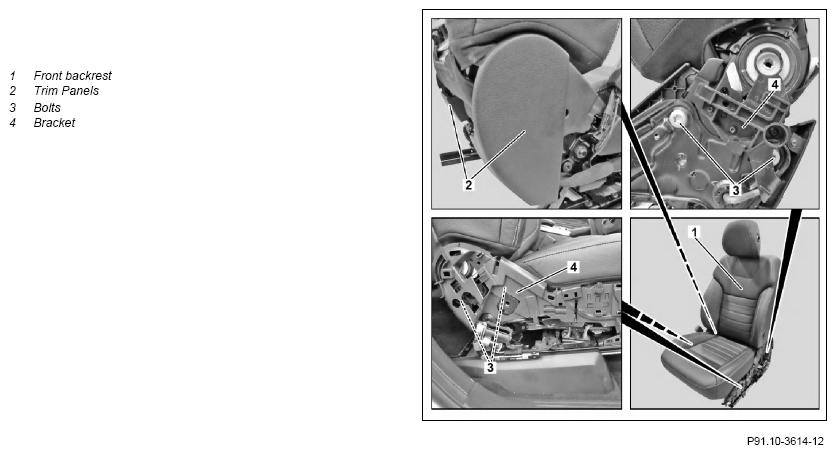

| 2 | Remove covers (2) and bracket (4) | AR91.10-P-1200GQ | |
| 3 | Remove cover (10) with padding from front backrest (1) | Model 166, 292 except code 399 (Multicontour front seats with massage function) except code 401 (Climatised front seats) |
AR91.18-P-1820GQA |
| Model 166, 292 with code 399 (Multicontour front seats with massage function) Model 166, 292 with code 401 (Climatised front seats) |
AR91.18-P-1820GQ | ||
| 4 | Remove front seat head restraint motor | When replacing the backrest frame. Model 166 as of model year 2016 with code 399 (Multicontour front seats with massage function) Model 166 as of model year 2016 with code 560 (Electrically adjustable front seats) Model 292 with code 399 (Multicontour front seats with massage function) Model 292 with code 560 (Electrically adjustable front seats) |
AR91.29-P-1432GQ |
| 5.1 | Remove lumbar support air cushion | Model 166, 292 except code 399 (Multicontour front seats with massage function) When replacing the backrest frame. |
AR91.25-P-1450GQ |
| 5.2 | Remove multicontour seat backrest air cushion | Model 166, 292 with code 399 (Multicontour front seats with massage function) When replacing the backrest frame. |
AR91.25-P-1740GQ |
| 6 | Remove support plates from side bolsters | Model 166 with code 244 (Sport seats, front) When replacing the backrest frame. |
|

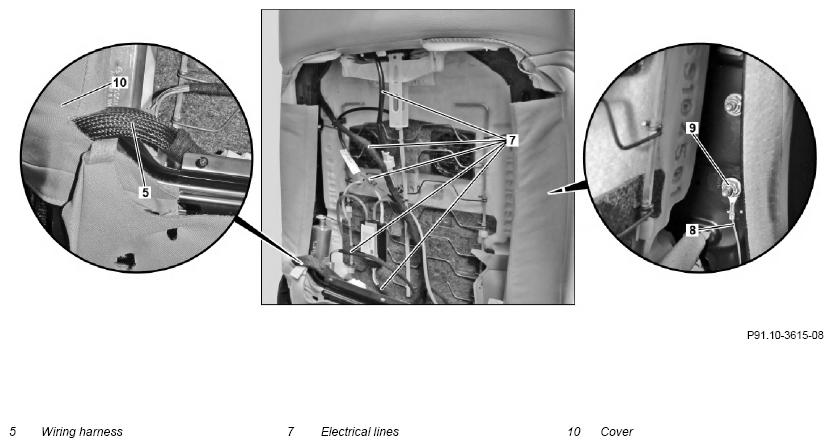

| 7 | Detach electrical lines (7), wiring harness (5) and pull out from backrest frame | ||
| 8 | Remove screws/bolts (3) and remove backrest frame | *BA91.10-P-1002-01L | |
| 9 | Install in the reverse order |
FRONT SEATS
| Number | Designation | Model 166 | Model 292 | |
|---|---|---|---|---|
| BA91.10-P-1002-01L | Screw, backrest to seat frame | Nm | 40 | 40 |
