Remove/Install Front Seat Backrest Cover - AR91.18-P-1820GQA
MODEL 166, 292
except CODE 399 (Multicontour front seats with massage function)
except CODE 401 (Climatised front seats)
Shown on front seat with code 864 (Rear Seat Entertainment system)
Shown on front seat with code 873 (Seat heater for driver and front passenger)
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Remove | |||
| 1 | Remove rear entertainment system display | Model 292 with code 864 (Rear compartment entertainment package) except code 399 (Multicontour front seats with massage function) except code 401 (Climatised front seats) |
AR82.60-P-7720GQC |
| Model 166 with code 864 (Rear compartment entertainment package) except code 399 (Multicontour front seats with massage function) except code 401 (Climatised front seats) |
AR82.60-P-7720SXS | ||

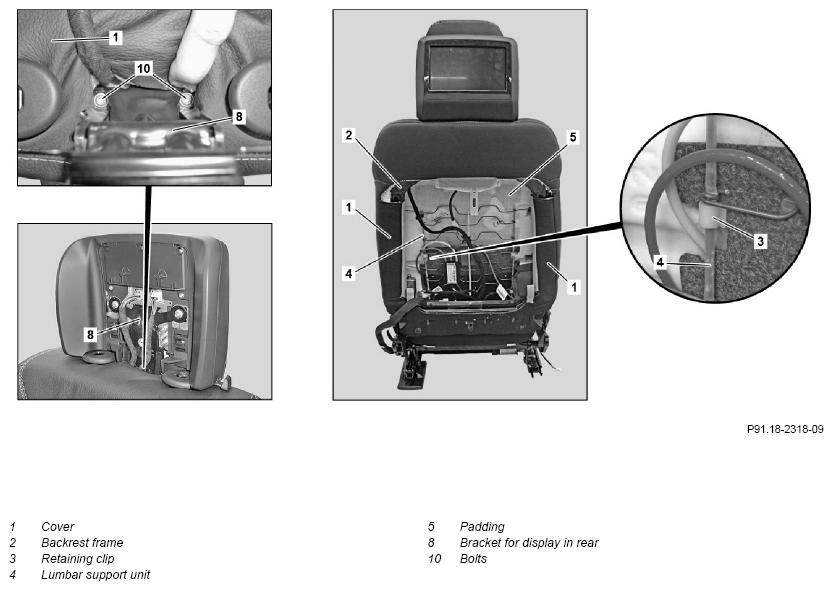

| 2 | Remove screws/bolts (10) and remove bracket for display in rear (8) | Model 166, 292 with code 864 (Rear compartment entertainment package) except code 399 (Multicontour front seats with massage function) except code 401 (Climatised front seats) Carefully remove bracket for display in rear (8). Otherwise the cover (1) may be damaged. |
|
| 3 | Remove left and right head restraint guides | Model 166 up to model year 2016 except code 399 (Multicontour front seats with massage function) except code 401 (Climatised front seats) |
AR91.16-P-0050GQ |
| Model 166 as of model year 2016 except code 399 (Multicontour front seats with massage function) except code 401 (Climatised front seats) Model 292 except code 399 (Multicontour front seats with massage function) except code 401 (Climatised front seats) |
AR91.16-P-0050GQC | ||
| 4 | Unhook cover (1) from backrest frame (2) | ||
| 5 | Remove sidebag unit | AR91.60-P-0695GQ | |
| 6 | Unclip retaining clip (3) from lumbar support unit (4) | Model 166, 292 with code U22 (4-way lumbar support) except code 399 (Multicontour front seats with massage function) except code 401 (Climatised front seats) |
|
| 7 | Expose electrical line for seat heater and disconnect electrical connector | Model 166, 292 with code 873 (Seat heating for driver and front passenger) except code 399 (Multicontour front seats with massage function) except code 401 (Climatised front seats) |
|
| 8 | Remove cover (1) with padding (5) from backrest frame (2) | ||
| 9 | Slip cover (1) over padding (5) | ||
| 10 | Lift cover (1) until wire rings (9) are accessible | ||
| 11 | Separate wire rings (9) on the inside at the padding (5) using a suitable tool and remove | Remove residue of wire rings (9) carefully. Otherwise the padding (5) or the cover (1) may be damaged. |
|
| 12 | Remove cover (1) from padding (5) | ||
| Install | |||
| 13 | Align seams of cover (1) and position in cutouts of padding (5) | ||

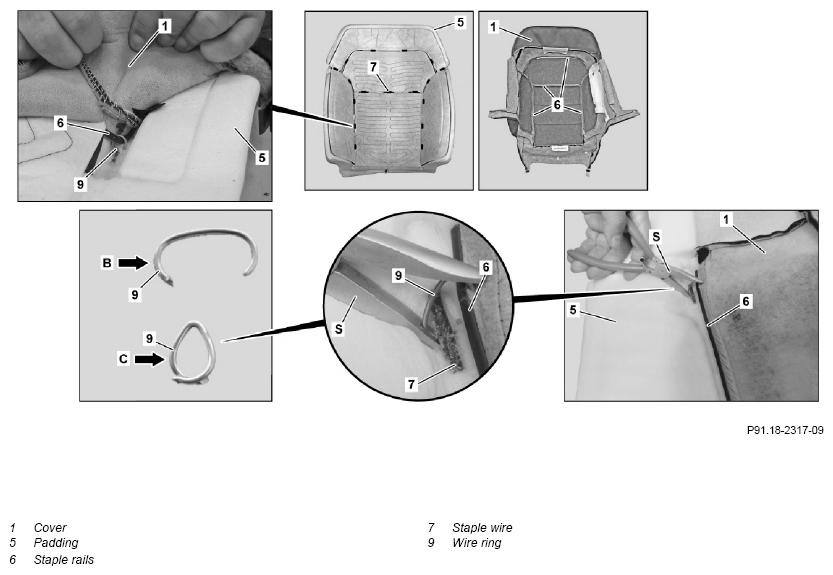

| 14 | Fasten staple rails (6) using new wire rings (9) to staple wires (7) of padding (5) |
Figure | |
| 15 | Slip cover (1) over padding (5) | ||
| 16 | Mount cover (1) with padding (5) onto backrest frame (2) | ||
| 17 | Route electrical line for seat heater and connect electrical connector | Model 166, 292 with code 873 (Seat heating for driver and front passenger) except code 399 (Multicontour front seats with massage function) except code 401 (Climatised front seats) |
|
| 18 | Clip in retaining clip (3) at lumbar support unit (4) | Model 166, 292 with code U22 (4-way lumbar support) except code 399 (Multicontour front seats with massage function) except code 401 (Climatised front seats) |
|
| 19 | Install sidebag unit | AR91.60-P-0695GQ | |
| 20 | Hook cover (1) onto backrest frame (2) | ||
| 21 | Install left and right head restraint guide | Model 166 up to model year 2016 except code 399 (Multicontour front seats with massage function) except code 401 (Climatised front seats) |
AR91.16-P-0050GQ |
| Model 166 as of model year 2016 except code 399 (Multicontour front seats with massage function) except code 401 (Climatised front seats) Model 292 except code 399 (Multicontour front seats with massage function) except code 401 (Climatised front seats) |
AR91.16-P-0050GQC | ||
| 22 | Install bracket for display in rear (8) | Model 166, 292 with code 864 (Rear compartment entertainment package) except code 399 (Multicontour front seats with massage function) except code 401 (Climatised front seats) Carefully install bracket for display in rear (8). Otherwise the cover (1) may be damaged. |
|
| 23 | Install rear entertainment system display | Model 292 with code 864 (Rear compartment entertainment package) except code 399 (Multicontour front seats with massage function) except code 401 (Climatised front seats) |
AR82.60-P-7720GQC |
| Model 166 with code 864 (Rear compartment entertainment package) except code 399 (Multicontour front seats with massage function) except code 401 (Climatised front seats) |
AR82.60-P-7720SXS |
