Remove/Install Front Seat Backrest Cover - AR91.18-P-1820GQ
MODEL 166, 292
with CODE 399 (Multicontour front seats with massage function)
MODEL 166, 292
with CODE 401 (Climatised front seats)
Shown on front seat with code 873 (Seat heater for driver and front passenger)
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove rear display | Model 166, 292 with code 399 (Multicontour front seats with massage function) with code 864 (Rear compartment entertainment package) Model 166, 292 with code 401 (Climatised front seats) with code 864 (Rear compartment entertainment package) |
|
| Model 292 with code 399 (Multicontour front seats with massage function) with code 864 (Rear compartment entertainment package) Model 292 with code 401 (Climatised front seats) with code 864 (Rear compartment entertainment package) |
AR82.60-P-7720GQC | ||
| Model 166 with code 399 (Multicontour front seats with massage function) with code 864 (Rear compartment entertainment package) Model 166 with code 401 (Climatised front seats) with code 864 (Rear compartment entertainment package) |
AR82.60-P-7720SXS | ||
| 2 | Remove screws/bolts and remove bracket for display in rear from backrest frame (2) | Model 166, 292 with code 399 (Multicontour front seats with massage function) with code 864 (Rear compartment entertainment package) Model 166, 292 with code 401 (Climatised front seats) with code 864 (Rear compartment entertainment package) Carefully remove bracket for display in rear. Otherwise the cover (1) may be damaged. |
|
| 3 | Remove left and right head restraint guides | Model 166 up to model year 2016 with code 399 (Multicontour front seats with massage function) Model 166 up to model year 2016 with code 401 (Climatised front seats) |
AR91.16-P-0050GQ |
| Model 166 as of model year 2016 with code 399 (Multicontour front seats with massage function) Model 166 as of model year 2016 with code 401 (Climatised front seats) Model 292 with code 399 (Multicontour front seats with massage function) Model 292 with code 401 (Climatised front seats) |
AR91.16-P-0050GQC | ||

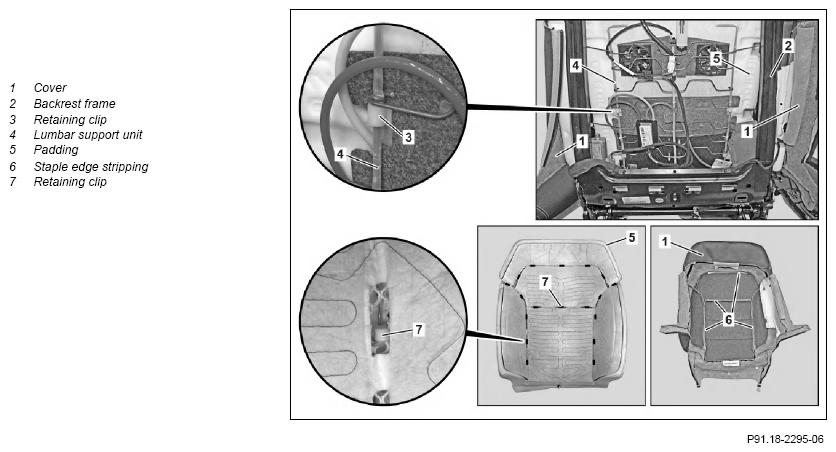

| 4 | Unhook cover (1) from backrest frame (2) | ||
| 5 | Remove sidebag unit | AR91.60-P-0695GQ | |
| 6 | Unclip retaining clip (3) from lumbar support unit (4) | ||
| 7 | Expose electrical lines for seat ventilation and seat heater and disconnect electrical connectors | ||
| 8 | Disconnect electrical connector from the massage function control unit | ||
| 9 | Disconnect pneumatic supply line from massage function control unit and from lumbar support unit (4) | Carefully disconnect pneumatic supply line. Danger of breakage. |
|
| 10 | Release cover (1) with padding (5) from backrest frame (2) | ||
| 11 | Slip cover (1) over padding (5) | ||
| 12 | Unclip staple edge stripping (6) from retaining clips (7) | ||
| 13 | Remove cover (1) from padding (5) | ||
| 14 | Install in the reverse order |
