Remove/Install Front Seat Head Restraint Motor - AR91.29-P-1432GQ
MODEL 166 as of model year 2016
with CODE 399 (Multicontour front seats with massage function)
MODEL 166 as of model year 2016
with CODE 560 (Electrically adjustable front seats)
MODEL 166 up to model year 2016
MODEL 292
with CODE 399 (Multicontour front seats with massage function)
MODEL 292
with CODE 560 (Electrically adjustable front seats)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove head restraint | Model 166 as of model year 2016 with code 560 (Electrically adjustable front seats) except code 399 (Multicontour front seats with massage function) Model 292 with code 560 (Electrically adjustable front seats) except code 399 (Multicontour front seats with massage function) |
AR91.16-P-0040GQA |
| Model 166 as of model year 2016 with code 399 (Multicontour front seats with massage function) Model 166 up to model year 2016 Model 292 with code 399 (Multicontour front seats with massage function) |
AR91.16-P-0040GQ | ||
| 2 | Disconnect electrical connector (3) | ||

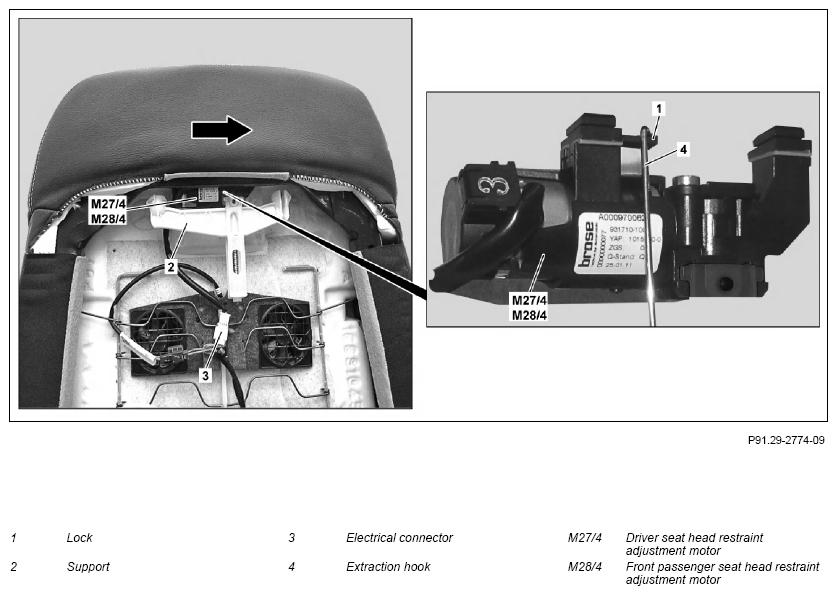

| 3 | Pull lock (1) slightly downward with extraction hook (4) and release head restraint adjustment seat adjustment motor, driver seat (M27/4) or head restraint adjustment seat adjustment motor, front passenger seat (M28/4) | Figure | |
| 4 | Slide support (2) with head restraint adjustment seat adjustment motor, driver seat (M27/4) or head restraint adjustment seat adjustment motor, front passenger seat (M28/4) towards the right (arrow) and remove downwards | ||
| 5 | Install in the reverse order |
