Remove/Install Power Steering Radiator - AR46.25-P-3020RGB
Model 190.381
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure.Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| Notice | Notes on working in engine compartment | AH60.00-P-0042-01RG | |
| Remove/install | |||
| 1 | Open hood, move to upright position and close. | AR88.40-P-1000RG | |
| 2 | Attach front cover for magnesium radiator crossmember. | ||
| 000 588 05 98 00 Cover | WS98.00-P-0011B | ||
When working in engine compartment, use front cover for magnesium radiator crossmember. Otherwise, the surface coating on the radiator crossmember made of magnesium may be damaged. |
|||
| 3 | Remove engine cover. | Model 190.381 with engine 178 with code M032 (Black Series version) |
AP01.10-P-2405-01GT |
| *BA01.10-P-1001-01G | |||
| 4 | Extract oil from power steering expansion reservoir. | ||
| Fig 2 | |||
| 5 | Remove front bumper. | AR88.20-P-2000RG | |
| 6 | Remove left air filter housing and left air duct. | Model 190.381 with engine 178.9 | AR09.10-P-1151MNJ |

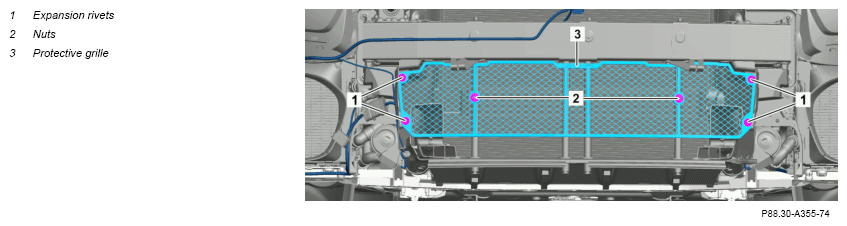

| 7 | Remove nuts (2). | ||
| 8 | Release expansion rivet (1) and remove protective grille (3). | ||

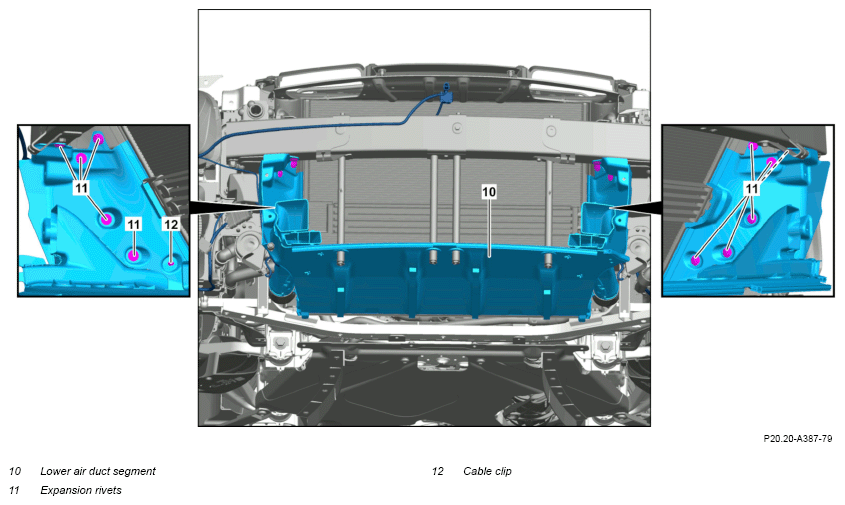

| 9 | Remove expansion rivet (11). | ||
| 10 | Unclip cable clip (12) and remove lower air duct segment (10). | ||

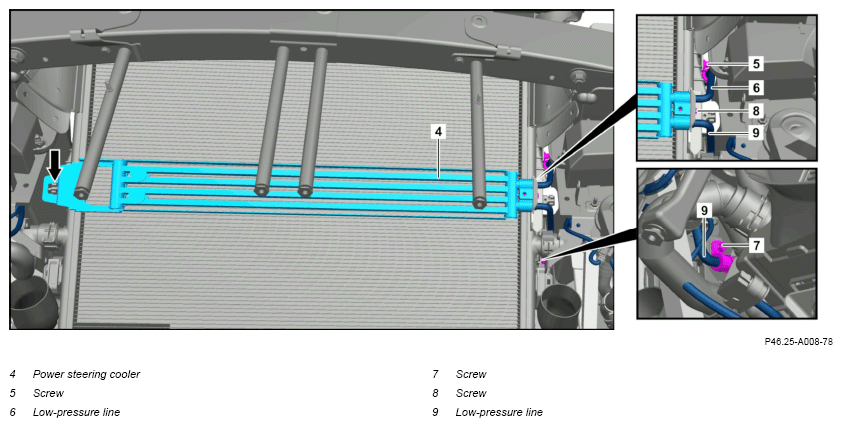

| 11 | Remove screws (5) and (7) and detach low-pressure lines (6) and (9). | *BA00.10-P-1002-04A | |
| 12 | Remove screw (8) and detach low-pressure lines (6) and (9) from power steering cooler (4). | Thoroughly clean area around the separation point before opening the hydraulic system. Otherwise, even the smallest particles introduced into the hydraulic system may lead to component malfunctions and a total failure of the hydraulic system. |
|
| *BA00.10-P-1002-04A | |||
| Fig 3 | |||
| 13 | Unclip power steering cooler (4) from catches (arrow) and remove. | ||
| 14 | Install in the reverse order. | ||
| Fill | |||
| 15 | Fill and bleed power-steering pump. | AR46.30-P-0010RG | |
| Check | |||
| 16 | Check steering with engine running for leak tightness and proper function. |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6x1 | Nm | 9 | 13 |
ENGINE COVER
| Number | Designation | Engine 178 | |
|---|---|---|---|
| BA01.10-P-1001-01G | Screw, Engine cover at front to bracket | Nm | 6 |
