Remove/Install Engine Covers - AP01.10-P-2405-01GT
Engine 178 In Model 190
With Code M032 (Black Series version)
ENGINE COVER
| Number |
Designation |
Engine 178 |
| BA01.10-P-1001-01G |
Screw, Engine cover at front to bracket |
Nm |
6 |
 Courtesy of MERCEDES-BENZ USA
|

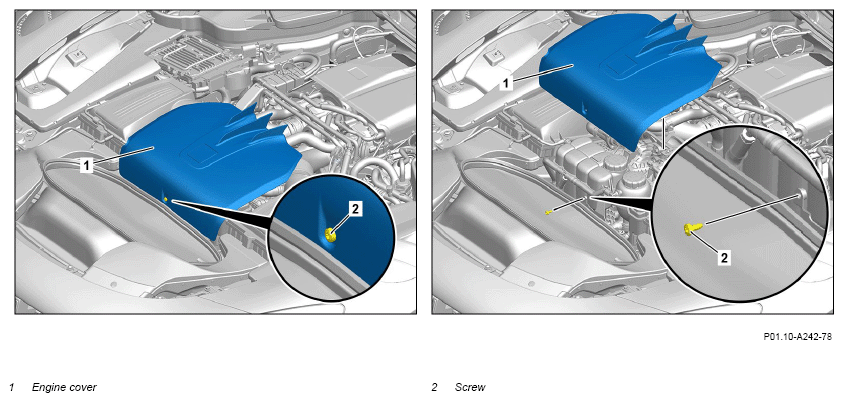

Shown on Engine 178 In Model 190 With Code M032 (Black Series version)

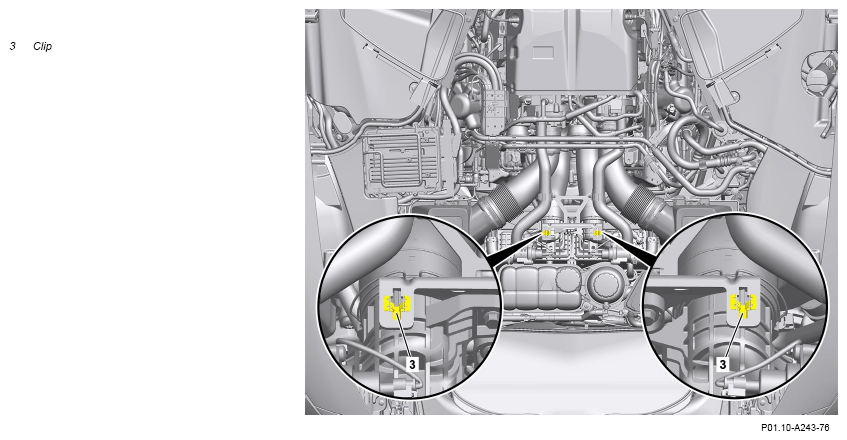

Shown on Engine 178 In Model 190 With Code M032 (Black Series version)
 Courtesy of MERCEDES-BENZ USA
|
 Courtesy of MERCEDES-BENZ USA
|

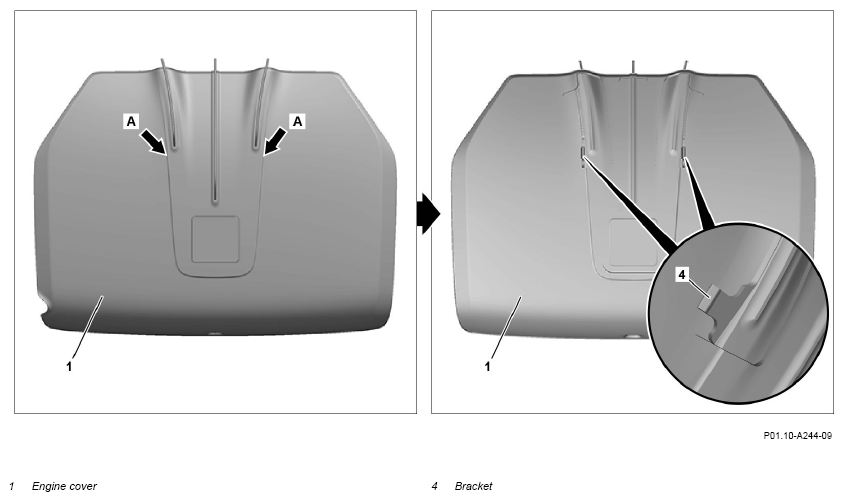

Shown on Engine cover of Engine 178 In Model 190 With Code M032 (Black Series version)
- Remove
screw (2).
- Remove Engine cover (1).
When removing and installing the Engine cover (1) always make sure that only the positions shown in the picture (arrows A) are to be used for pulling during removal or for pressing during installation. The holders (4) latch there into the clips (3). Do not exert any force to the Engine cover at any other points. Failure to observe these instructions can result in damage to the Engine cover (1).
When removing the Engine cover (1), individual clips (3) may be left in the holders (4). Carefully remove these clips (3) from holders (4) and check for damage. Attach clips (3) into vehicle again and check they are firmly seated.
Failure to observe these instructions can result in damage to the Engine cover (1).
- Install in the reverse order.
