Remove/Install Power Steering Pump - AR46.30-P-0500RG

Model 190

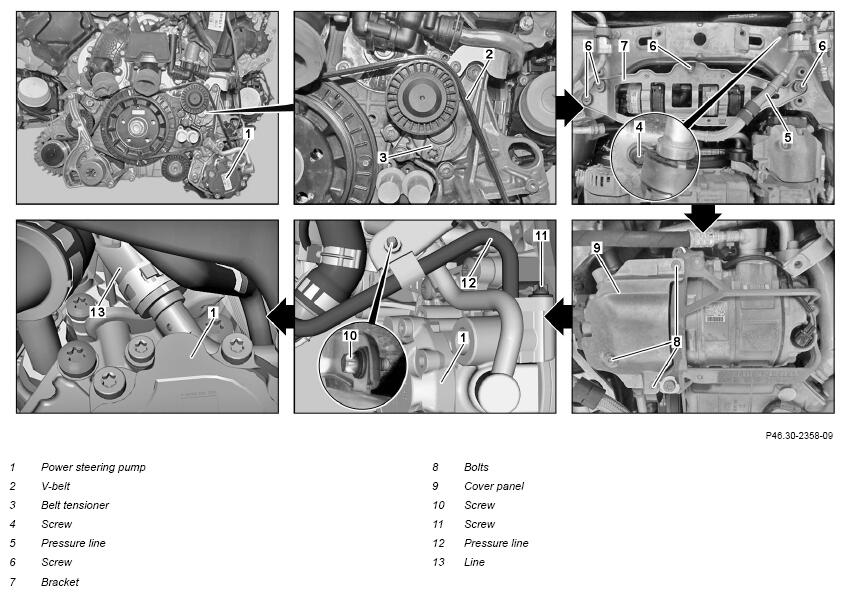

Fig 1: Power Steering Pump Components Location - Model 190
G16681987Courtesy of MERCEDES-BENZ USA
G16681988Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
WARNING Risk of injury  to skin or eyes from hydraulic fluid spraying out under pressure.Risk of poisoning  from swallowing hydraulic fluid. Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. AS00.00-Z-0013-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. AS00.00-Z-0017-01A
    Deburr repair panels.
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
Notice  Notes on working in engine compartment   AH60.00-P-0042-01RG
REMOVINGINSTALLING Remove/install
1 Remove lower engine compartment lining. Model 190.381 AR61.20-P-1105RGB
    Model 190 (except 190.381) AR61.20-P-1105RG
2 Open engine hood and position upright.   AR88.40-P-1000RG
3 Remove engine cover.
4 Suction off oil from expansion reservoir of the power steering system. NOTES
Thoroughly clean area around expansion reservoir before opening hydraulic system.
Otherwise even the smallest dirt particles, introduced into the hydraulic system, can lead to malfunctions and total failure of the hydraulic system.

    SPECIAL TOOL Hand pump Fig 2
5 Slacken V-belt (2) on belt tensioner (3) and place to one side.
6 Remove screw (4) and release pressure line (5). TORQUE SPECIFICATION Bolt, high-pressure line to holder on front axle carrier *BA46.30-P-1003-01E
7 Unscrew screws (6) of holder (7) and remove holder (7). TORQUE SPECIFICATION Bolt, low-temperature circuit pump bracket to front axle carrier *BA20.10-P-1008-01ZA
8 Unscrew screws (8) and remove cover panel (9). If screws (8) and cover panel (9) are installed.
    TORQUE SPECIFICATION M6x1 *BA00.10-P-1002-04A
9 Remove the bolt (10). TORQUE SPECIFICATION Bolt, high-pressure line to pump bracket *BA46.30-P-1002-01E
10 Unscrew screw (11), pull pressure line (12) out of power-steering pump (1) and seal openings with suitable stop plugs. NOTES
Thoroughly clean area around separating point before opening hydraulic system.
Otherwise even the smallest dirt particles, introduced into the hydraulic system, can lead to malfunctions and total failure of the hydraulic system.

    INSTALLATION IMPORTANT Replace seal.
    IMPORTANT Collect escaping oil using a rag.
    TORQUE SPECIFICATION Bolt, high-pressure line to power steering pump *BA46.30-P-1005-01E
    SPECIAL TOOL Assembly tool Fig 3
    SPECIAL TOOL Record plug Fig 5
11 Remove line (13) from power-steering pump (1) and seal openings with suitable stop plugs. NOTES
Thoroughly clean area around separating point before opening hydraulic system.
Otherwise even the smallest dirt particles, introduced into the hydraulic system, can lead to malfunctions and total failure of the hydraulic system.

    IMPORTANT Collect escaping oil using a rag.
    SPECIAL TOOL Hose clamp pliers Fig 4
    SPECIAL TOOL Record plug Fig 5

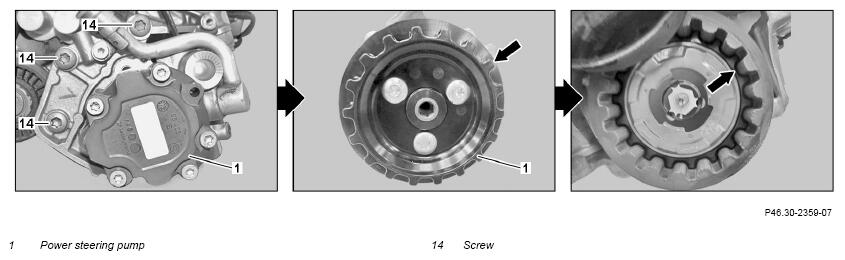

12 Remove screws (14). TORQUE SPECIFICATION Bolt, power steering pump to bracket *BA46.30-P-1001-01E
13 Remove power-steering pump (1).
INSPECT Check
14 Check toothing (arrows) on power-steering pump (1) and on refrigerant compressor. If damage is found,
↓
Replace power-steering pump (1) or refrigerant compressor.

    Model 190.381 with engine 178.9 AR83.55-P-5310MNJ
    Model 190 (except 190.381) AR83.55-P-5310RG
15 Remove filter for steering gear oil. Model 190
with code M032 (Black Series version)

    When replacing the power-steering pump (1).
      AR46.25-P-3400RG
    INSTALLATION IMPORTANT Replace filter for steering gear oil.
16 Install in the reverse order.
17 Fill and bleed power-steering pump (1).   AR46.30-P-0010RG
INSPECT Check
18 Check oil level in expansion reservoir; correct if necessary.
REFER TO MAINTENANCE     AP46.00-P-4612A
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number Designation 8.8 10.9
BA00.10-P-1002-04A M6x1 Nm 9 13
COOLANT PUMP, COOLANT THERMOSTAT

Number Designation Engine 178
BA20.10-P-1008-01ZA Bolt, low-temperature circuit pump bracket to front axle carrier M6 Nm -
M8 Nm 9
POWER STEERING PUMP

Number Designation Model 190
BA46.30-P-1001-01E Bolt, power steering pump to bracket Nm 20
POWER STEERING PUMP

Number Designation Model 190
BA46.30-P-1002-01E Bolt, high-pressure line to pump bracket Nm 7
POWER STEERING PUMP

Number Designation Model 190
BA46.30-P-1003-01E Bolt, high-pressure line to holder on front axle carrier Nm 8
POWER STEERING PUMP

Number Designation Model 190
BA46.30-P-1005-01E Bolt, high-pressure line to power steering pump M6 Nm 8
M8 Nm 18
Fig 2: Identifying Hand Pump (210 589 00 71 00)
G07742725Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Assembly Tool (000 589 93 63 00)
G16145173Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Hose Clamp Pliers (003 589 03 37 00)
G13745073Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Record Plug (129 589 00 91 00)
G09975019Courtesy of MERCEDES-BENZ USA
