Remove/Install PARKTRONIC System (PTS) Control Unit - AR54.65-P-0006RG
Model 190
With Code 220 (PARKTRONIC system (PTS))
Shown on model 190.3
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform initial startup of parking system control unit (N62) using diagnostic system | When replacing the parking system control unit (N62). | |
| AD00.00-P-2000-04B | |||
| 2 | Move driver seat and front passenger seat all the way forwards to the end position | ||
| 3 | Switch off ignition and store transmitter key outside of transmission range (at least 2 m) | ||
| 4 | Remove strut tower brace | Model 190.3 with code 220 (PARKTRONIC system (PTS)) |
AR64.20-P-0010RG |
| 5 | Remove side trim in rear passenger compartment | Model 190.3 with code 220 (PARKTRONIC system (PTS)) |
AR68.30-P-4780RG |
| Model 190.4 with code 220 (PARKTRONIC system (PTS)) |
AR68.30-P-4780RGR | ||

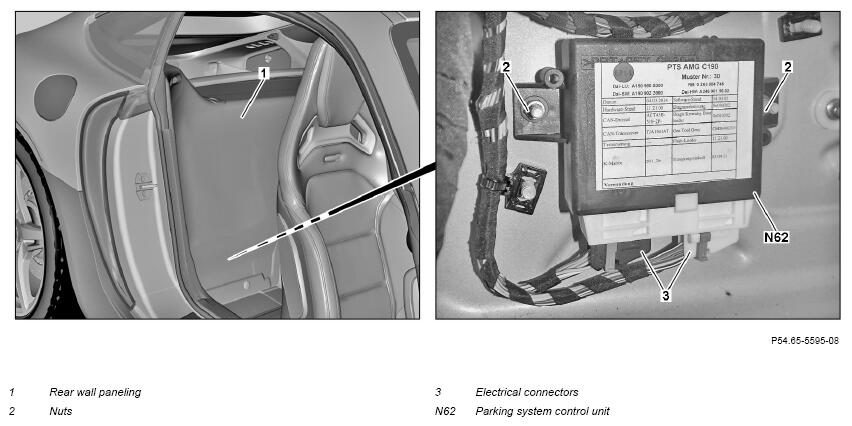

| 6 | Remove rear panel trim (1) | Model 190.4 with code 220 (PARKTRONIC system (PTS)) |
AR68.30-P-4750RGR |
| Model 190.3 with code 220 (PARKTRONIC system (PTS)) |
AR68.30-P-4750RG | ||
| 7 | Unscrew nuts (2) | ||
| 8 | Release and disconnect electrical connectors (3) | ||
| 9 | Remove parking system control unit (N62) | ||
| 10 | Install in the reverse order |
