Remove/Install Washer Fluid Reservoir Of Windshield Washer System - AR82.35-P-6000RG
Model 190
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Notes on working in engine compartment | AH60.00-P-0042-01RG | |
| Remove/install | |||
| 1 | Open hood. | AR88.40-P-1000RG | |
| 2 | Attach front cover for magnesium radiator cross member. | ||
| 000 588 05 98 00 Cover | WS98.00-P-0011B | ||
| 3 | Remove front right wheel and tire assembly. | AR40.10-P-1100RQ | |
| 4 | Remove rear fender liner at front right. | AR88.10-P-1300RGB | |
| Model 190 with code M032 (Black Series version) | |||
| Model 190 except code M032 (Black Series version) | AR88.10-P-1300RG | ||
| 5 | Pull filler neck (3) off washer fluid reservoir (4). | ||

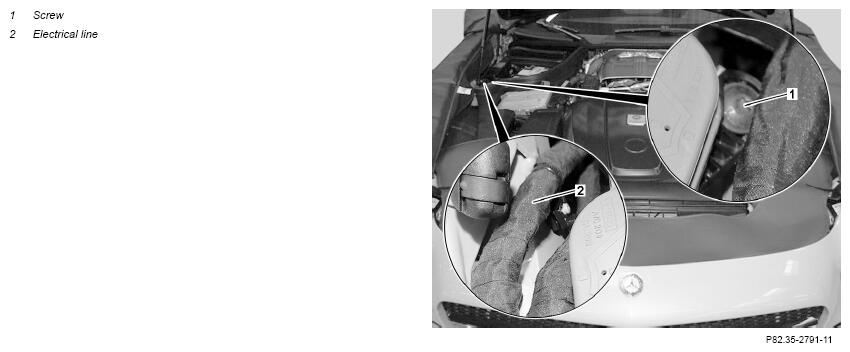

| 6 | Unclip electric line (2) and push to one side. | ||
| 7 | Remove screw (1). | ||
| 8 | Lift filler neck (3) out of engine compartment. | ||

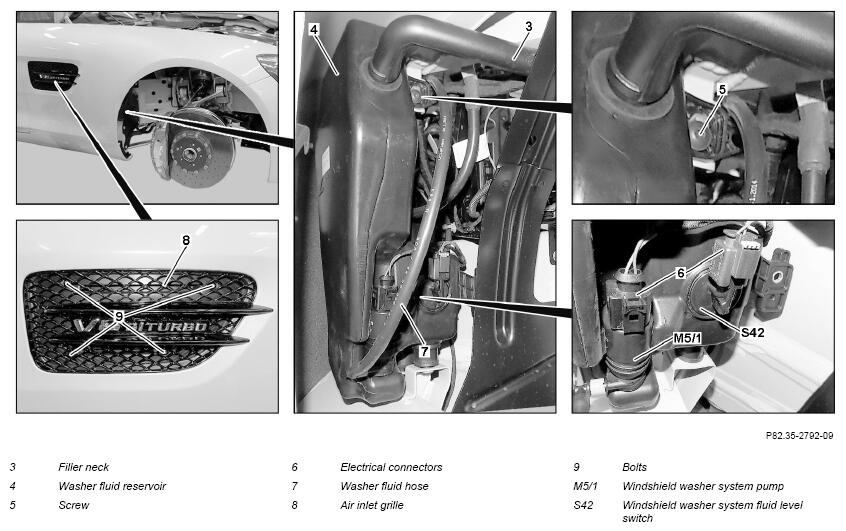

| 9 | Remove screws (9). | ||
| 10 | Remove air inlet grille (8). | ||
| 11 | Disconnect washer fluid hose (7) from windshield washer system pump (M5/1). | ||
| 12 | Disconnect electrical connectors (6) from windshield washer system pump (M5/1) and from windshield washer system fluid level switch (S42). | ||
| 13 | Remove screw (5). | ||
| 14 | Remove washer fluid reservoir (4). | ||
| 15 | Remove windshield washer system pump (M5/1) from washer fluid reservoir (4). | When replacing the washer fluid reservoir (4). | |
| Fig 1 | |||
| 16 | Remove windshield washer system fluid level switch (S42) from washer fluid reservoir (4). | When replacing the washer fluid reservoir (4). | |
| Fig 1 | |||
| 17 | Install in the reverse order. | ||
| Filling | |||
| 18 | Fill washer fluid reservoir (4). | ||
| AP82.35-P-8210A |
