Remove/Install Tail Lamp - AR82.10-P-4905RG

Model 190

Shown on left rear lamp unit for model 190.3 (E3)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
2	Loosen the side trim on the left of the trunk until the nuts (2) are accessible	When removing the left rear lamp unit (E3)
		Model 190.3	AR68.30-P-4800RG
		Model 190.4	AR68.30-P-4800RGR
3	Remove the bass speaker.	When removing the right rear lamp unit (E4).
		Model 190.3 up to model year 2016 with code 810 (Premium sound system) Model 190.3 up to model year 2016 with code 811 (High-End sound system)	AR82.62-P-7841RG
		Model 190 as of model year 2016 with code 810 (Premium sound system) Model 190 as of model year 2016 with code 811 (High-End sound system)	AR82.62-P-7839RG

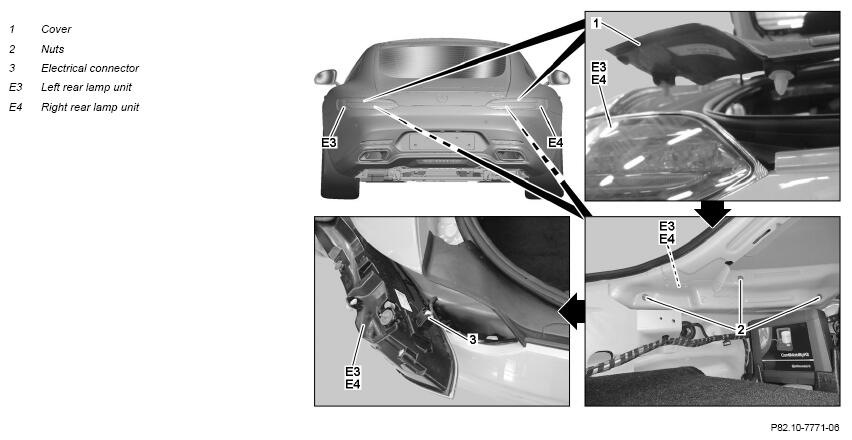

4	Unclip and remove the cover (1) in area of the left rear lamp unit (E3) or right rear lamp unit (E4) with a suitable tool.
5	Remove adhesive residue on the left and right covers (1) and on the rear bumper.
		The bonding surfaces should be free of dust, oil, grease, wax dirt and other adhesive components or dirt residues. Otherwise there may be adhesion problems.
6	Replace the adhesive strips of the left/right cover (1)	Acrylic foam tape 5356 F	*BR00.45-Z-1126-02A
7	Unscrew nuts (2)
8	Remove the left rear lamp unit (E3) or right rear lamp unit (E4) until the electrical connector is accessible
9	Release and disconnect the electrical connector (3) and remove left rear lamp unit (E3) or right rear lamp unit (E4)
10	Install in the reverse order
