Remove/Install Side Paneling In Trunk - AR68.30-P-4800RG

Model 190.3

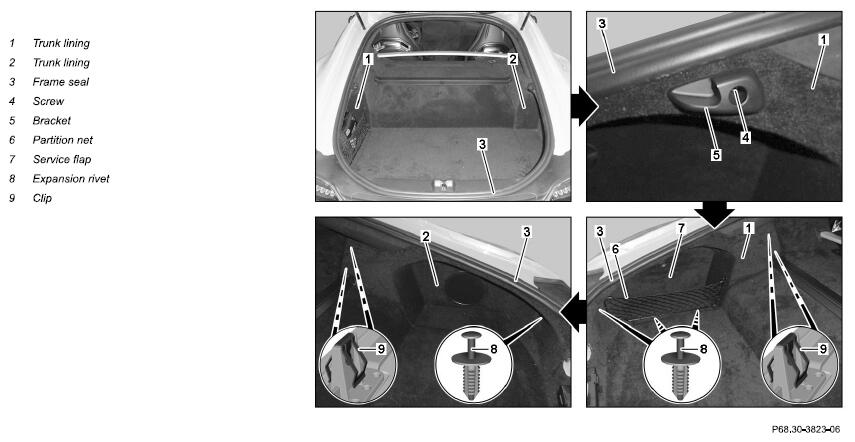

Shown on model 190.3 other than code M032 (black series version)

Courtesy of MERCEDES-BENZ USA

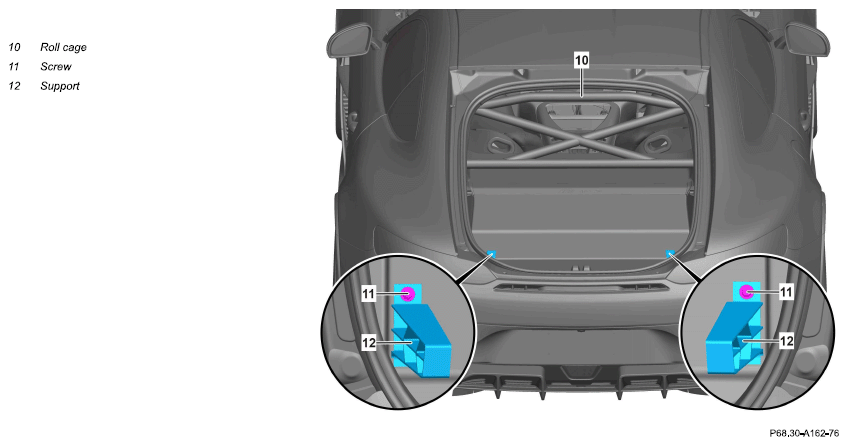

Shown on model 190.3 With Code M032 (black series version)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Remove/install
1	Remove roll cage (10).	Model 190.3 with code B25 (AMG Track Package) Model 190.3 with code B25 (AMG Track Package) with code M032 (Black Series version) The bases remain installed in the vehicle.	AR91.50-P-2365RGB
2	Remove rear-end center-section trim.		AR68.30-P-4785RG
3	Remove C-pillar trim.		AR68.30-P-4490RG
4	Remove screw (4) and remove holder (5).
5	Unscrew screw (11) and remove corresponding support (12).	Model 190.3 with code M032 (Black Series version) Screw, tailgate, bracing to rear-end floor	*BA64.20-P-1014-01F
6	Unclip partitioning net (6) and remove.	Only when removing trunk paneling (1).
7	Open service flap (7), unhook, and remove.	Only when removing trunk paneling (1).
8	Remove the expansion rivet (8).	The number of expansion rivets (8) varies depending on the model year. Dismantling tool	Fig 1
9	Release sealing frame (3) in the working area.	Ensure that sealing frame (3) is seated correctly.
10	Unclip corresponding trunk lining (1 or 2) in the area of the clips (9).	The number of clips (9) varies depending on the vehicle equipment.
11	Remove corresponding trunk lining (1 or 2).
12	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
