Remove/Install Bass Module Speaker - AR82.62-P-7839RG
Model 190.3
Up To Model Year 2016
With Code 810 (Premium sound system)
Model 190.3
Up To Model Year 2016
With Code 811 (High-End sound system)
Shown on model 190.3 With Code 811 (Advanced Sound System)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove right paneling in trunk | AR68.30-P-4800RG | |

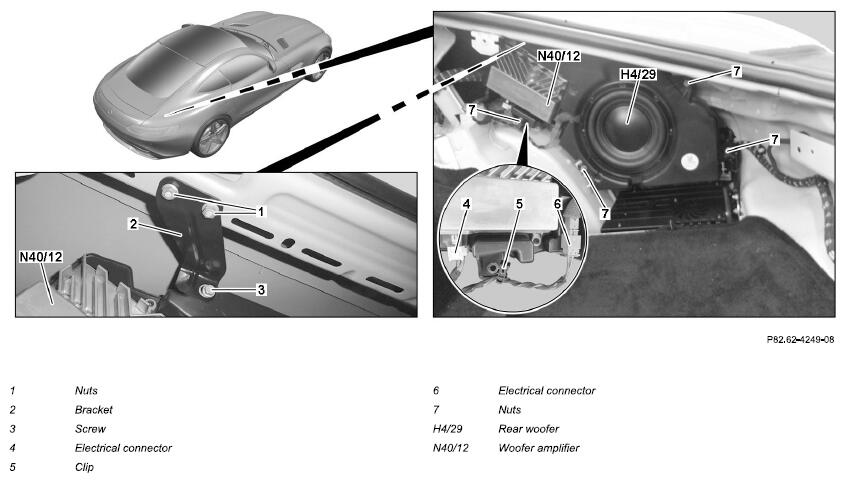

| 3 | Unscrew nuts (1) | ||
| 4 | Remove screw (3) and remove bracket (2) | ||
| 5 | Unscrew nuts (7) | ||
| 6 | Release and disconnect electrical connector (4) from woofer amplifier (N40/12) | Model 190.3 up to model year 2016 with code 811 (High-End sound system) | |
| 7 | Remove clamp (5) | ||
| 8 | Release and disconnect electrical connection (6) | ||
| 9 | Remove rear woofer (H4/29) | ||
| 10 | Install in the reverse order |
