Remove/Install Side Paneling In Trunk - AR68.30-P-4800RGR
Model 190.4
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove edge guard in working area | ||
| 2 | Remove luggage compartment paneling | AR68.30-P-4820RGR | |

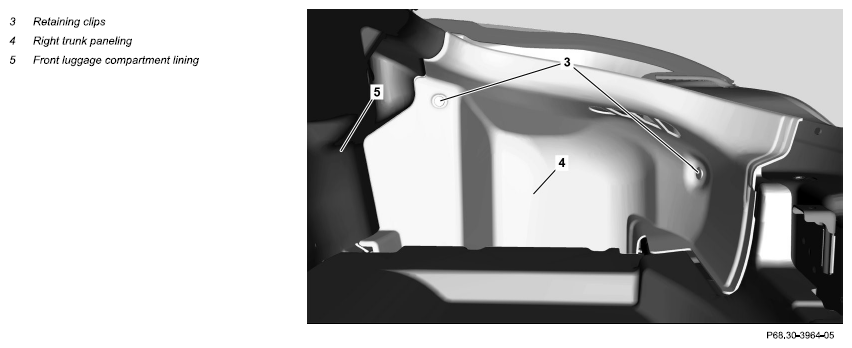

| 3 | Unclip retaining clips (3) | Fig 1 | |
| 4 | Remove right luggage compartment paneling (4) | ||
| 5 | Install in the reverse order |
