Remove/Install Subwoofer - AR82.62-P-7841RG

Model 190

as of model year 2016

With Code 810 (Premium sound system)

Model 190

as of model year 2016

With Code 811 (High-End sound system)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A

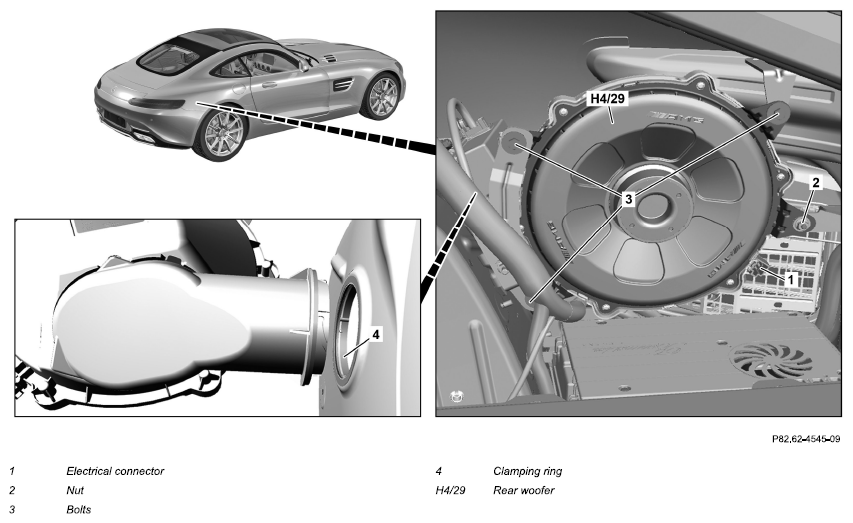

	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2	Detach fender liner in rear fender on right far enough in rear area until tensioning ring (4) is accessible.	Model 190 as of model year 2016 with code 810 (Premium sound system) with code 811 (High-End sound system) with code M032 (Black Series version)	AR88.10-P-1400RGB
		Model 190 as of model year 2016 with code 810 (Premium sound system) with code 811 (High-End sound system) except code M032 (Black Series version)	AR88.10-P-1400RG
3	Turn tensioning ring (4) counterclockwise and remove.	Installation: Check that tensioning ring (4) is correctly seated.
4	Remove side trim from trunk at right.	Model 190.3 as of model year 2016 with code 810 (Premium sound system) Model 190.3 as of model year 2016 with code 811 (High-End sound system)	AR68.30-P-4800RG
		Model 190.4 as of model year 2016 with code 810 (Premium sound system) Model 190.4 as of model year 2016 with code 811 (High-End sound system)	AR68.30-P-4800RGR
5	Release and disconnect electrical connector (1) from rear bass speaker (H4/29).
6	Remove nut (2).
7	Secure rear bass speaker (H4/29) to prevent it from falling down and remove screws (3).
8	Remove rear bass speaker (H4/29).
9	Install in the reverse order.
