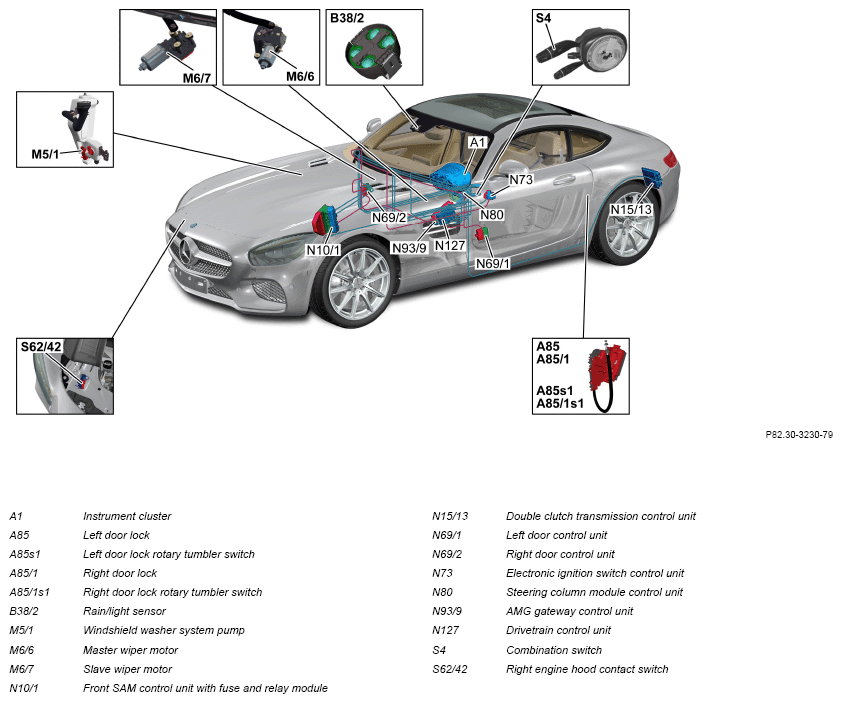

Overview Of System Components For Windshield Wiper System - GF82.30-P-9996RR
Model 190
Shown: model 190.377
| Component description for instrument cluster | A1 | GF54.30-P-6000RR | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RR | |
| Dual clutch transmission control unit, component description | Model 190 with transmission 700.4 N15/13 | GF27.60-P-5171RR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RR | |
| Component description for steering column tube module control unit | Model 190 up to 11/30/18 up to model year 2019N80 | GF54.21-P-6051RR | |
| Model 190 as of 12/1/18 as of model year 2019 N80 | GF54.21-P-6051RRM | ||
| AMG gateway control unit, component description | Model 190 with transmission 700.4 N93/9 | GF54.21-P-1001RR | |
| Drivetrain control unit, component description | Model 190 with engine 178.9 N127 | GF54.21-P-2141MNB | |
| Table of contents for function description of windshield wiper system | GF82.30-P-0997RR |
